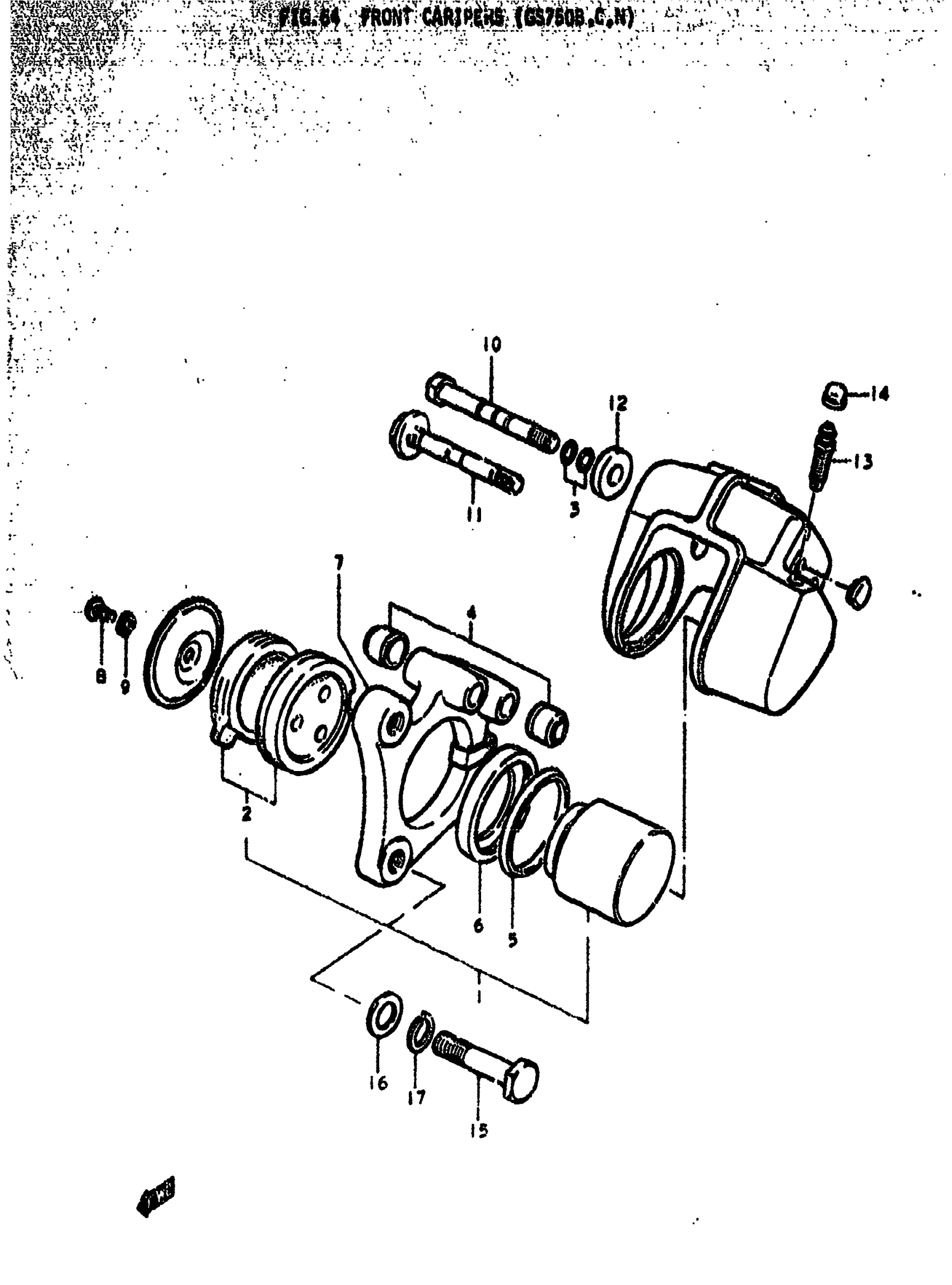

Suzuki GS750B (1979) FRONT CARIPERS (GS750B Diagram

#

Description
Price

0

CARIPERS ASSY | B This part replaces 59300-45000.

59300-45002

Unavailable

0

CARIPERS ASSY | C This part replaces 59300-45001.

59300-45002

Unavailable

0

CARIPERS ASSY | N; Includes Item(s) 1 - 14

59300-45002

Unavailable

1

PISTON SET | B This part replaces 59100-45810.

59100-45813

Unavailable

1

NO DESCRIPTION AVAILABLE | C,N This part replaces 59100-45830.

59100-45833

Unavailable

2

PAD SET | B,C,N This part replaces 59100-45820.

59302-45830

Unavailable

3

O RING | B

59111-18410

Unavailable

3

O RING | C,N

59111-45001

Unavailable

4

DUST COVER, AXIE | B,C,N

59312-45000

Unavailable

5

PISTON SEAL | B,C,N This part replaces 55136-66310.

69107-38B00

$9.79

6

BLOT, PISTON | B,C,N

59308-45000

Unavailable

7

HOLDER, CARIPERS | B

59350-45000

Unavailable

7

HOLDER, CARIPERS | C

59350-45001

Unavailable

7

HOLDER, CARIPERS | N This part replaces 59350-44002.

59350-44003

Unavailable

8

SCREW | B,C,N This part replaces 02112-06128.

02112-06127

$1.84

9

LOCK WASHER | B,C,N This part replaces 08321-21068.

08321-01067

$2.13

10

AXLE, CARIPERS | B

59305-45000

Unavailable

10

AXLE, CARIPERS | C

59305-45001

Unavailable

11

AXLE, CARIPERS | N

59305-45002

Unavailable

12

WASHER, AXLE | B,C

59371-45000

Unavailable

13

BREATHER | B,C,N

59121-18410

$8.73

14

CAP, BLEEDER | B,C,N This part replaces 59122-18410.

55156-66310

$5.17

15

BOLT (10X38) | B,C,N This part replaces 09104-10007.

09104-10029

$3.55

16

WASHER | B,C,N This part replaces 08322-21108.

08322-01107

$2.15

17

LOCK WASHER | B,C,N This part replaces 08321-21108.

08321-01107

$1.84
