Partiron

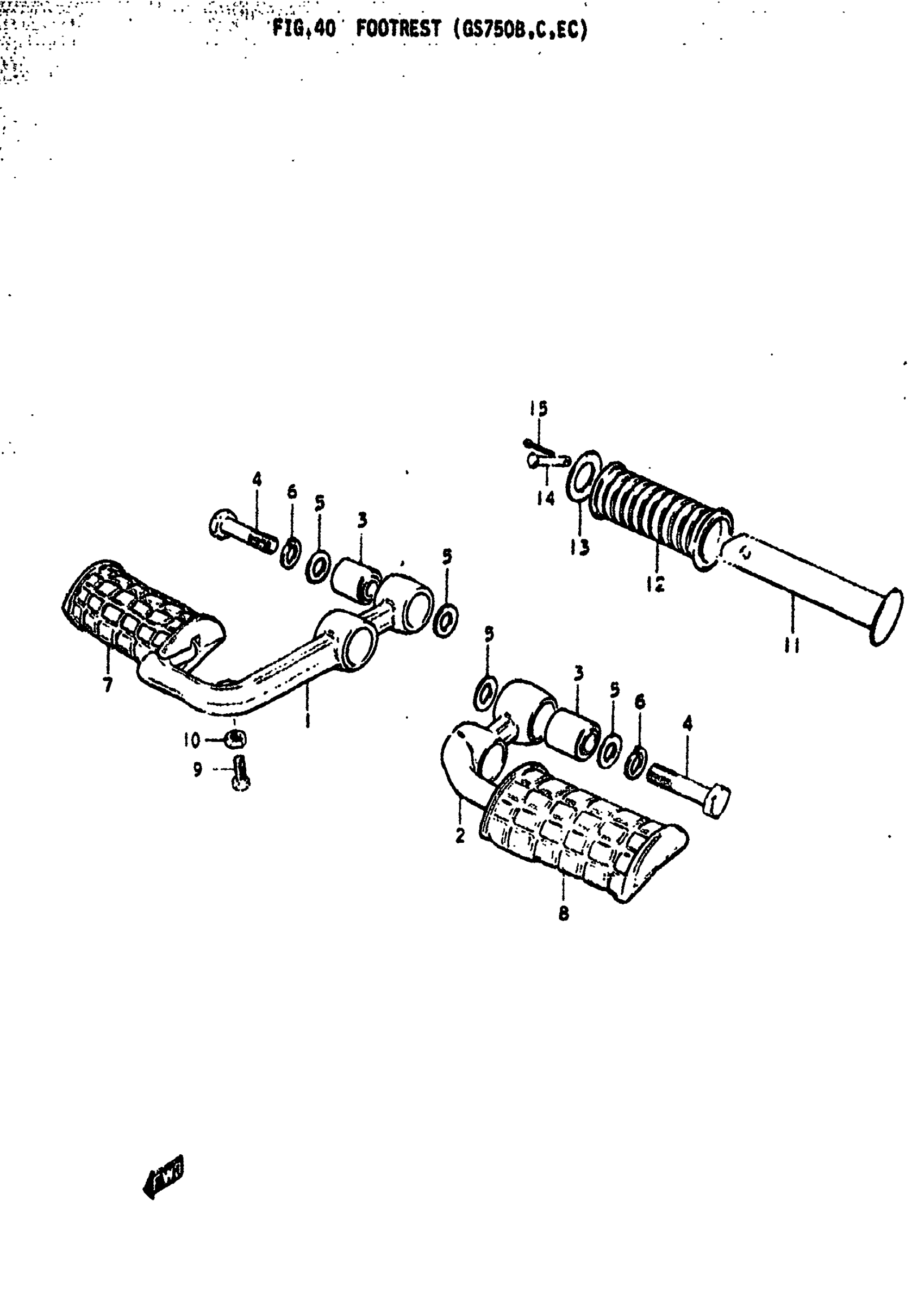

Suzuki GS750B (1979) FOOTREST (GS750C Diagram

#

Description
Price

1

BAR, FRONT FOOTREST RH | B,C&EC

43511-45000-019

Unavailable

2

BAR, FRONT FOOTREST LH | B,C&EC

43521-45000-019

Unavailable

3

BUSHING | B,C&EC

09319-10008

$7.40

4

BOLT (10X38) | B,C&EC This part replaces 09104-10007.

09104-10029

$3.55

5

WASHER | B,C&EC This part replaces 09160-10013.

09160-10123

$2.12

6

LOCK WASHER | B,C&EC This part replaces 08321-21108.

08321-01107

$1.84

7

COVER, FRONT FOOTREST RH | B,C&EC

43551-45000

Unavailable

8

RUBBER, FRONT FOOTREST LH | B,C&EC This part replaces 43551-36200.

43551-36000

$20.10

9

BOLT | B,C&EC This part replaces 01107-06208.

01500-06207

$2.28

10

.NUT | B,C&EC This part replaces 08319-21068.

08319-2106A

$1.91

11

BAR, PILLION FOOTREST | B,C&EC

43610-03001

$6.52

12

COVER, PILLION FOOTREST | B,C&EC

43612-03001

$5.15

13

WASHER | B,C&EC; 19.5x32x2 This part replaces 09160-19006.

09160-19024

$2.65

14

PIN | B,C&EC

09200-06010

$1.72

15

COTTER PIN | B,C&EC This part replaces 04111-20208.

04111-2020A

$1.49
