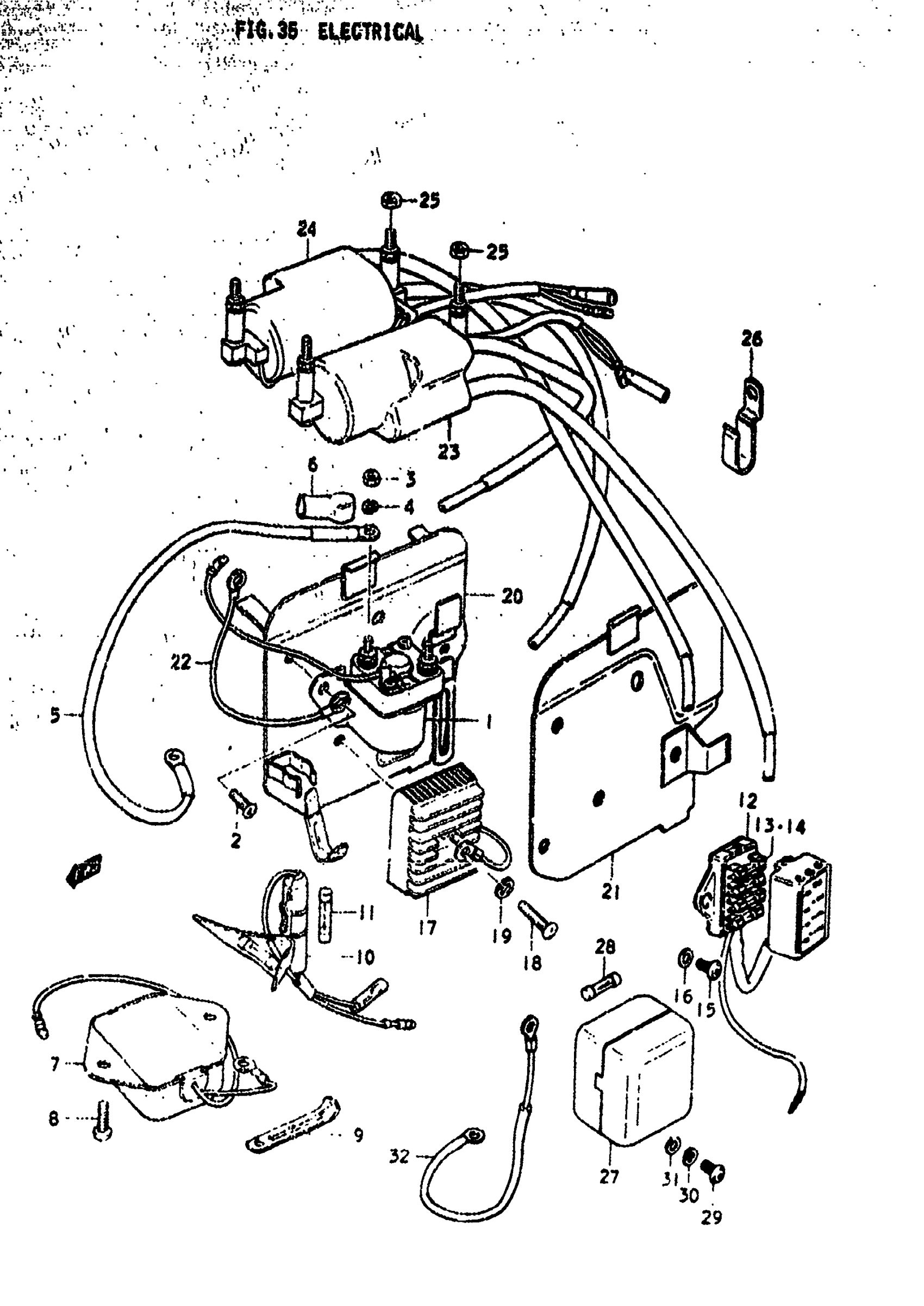

Suzuki GS750B (1979) ELECTRICAL Diagram

#

Description
Price

1

RELAY ASSY,STAR | B,C&EC,N&EN This part replaces 31800-37020.

31800-37021

$71.42

2

SCREW | B,C&EC,N&EN This part replaces 02112-06108.

02112-06107

$1.49

3

.NUT | B,C&EC,N&EN This part replaces 08310-22068.

08310-00067

$2.13

4

LOCK WASHER | B,C&EC,N&EN This part replaces 08321-21068.

08321-01067

$2.13

5

LEAD WIRE, STARTING MOTOR | B,C&EC This part replaces 33850-24102.

33850-47010

Unavailable

5

LEAD WIRE, STARTING MOTOR | N&EN

33850-47010

Unavailable

6

CAP, STARTER MOTOR | B,C&EC,N&EN This part replaces 31861-35100.

31861-48B10

$6.55

7

REGURATOR, VOLTAGE | B; ND This part replaces 32500-45010.

32500-45011

Unavailable

7

REGURATOR, VOLTAGE | C&EC,N7EN; ND

32500-45011

Unavailable

7

REGULATOR, VOLTAGE | B; KOKUSAN This part replaces 32500-45020.

32500-45021

Unavailable

8

SCREW | B,C&EC,N&EN This part replaces 02112-06108.

02112-06107

$1.49

9

CLAMP | B This part replaces 09404-06403.

09404-06039

$1.74

10

FUSE CASE ASSY | B,C&EC; Includes Item(s) 11 This part replaces 36740-15010.

36740-15011

$9.38

11

FUSE | B,C&EC; 13A

09481-15001

$2.06

12

FUSE BOX ASSY | N&EN; Includes Item(s) 13 - 14 This part replaces 36740-49000.

36740-49X00

Unavailable

13

FUSE | N&EN; 10A

09481-10001

$1.71

14

FUSE | N&EN; 15A

09481-15001

$2.06

15

SCREW | N&EN This part replaces 02112-06128.

02112-06127

$1.84

16

WASHER | N&EN This part replaces 08322-21068.

08322-01067

$2.13

17

RECTIFIER | B,C&EC,N&EN

32800-44010

Unavailable

18

SCREW | B,C&EC,N&EN This part replaces 02112-06258.

02112-06257

$1.78

19

LOCK WASHER | B,C&EC,N&EN This part replaces 08321-21068.

08321-01067

$2.13

20

PLATE, ELECTRIC PARTS HOLDER | B

47410-45001

Unavailable

20

PLATE, ELECTRIC PARTS HOLDER | C&EC

47410-45003

Unavailable

21

PLATE, ELECTRIC PARTS HOLDER | N&EN

47410-45010

Unavailable

22

LEAD WIRE, ENGINE (-) | B This part replaces 36852-26600.

36851-02331

Unavailable

23

COIL ASSY,IGNIT | B,C&EC,N&EN; ND This part replaces 33410-45010.

33410-45012

Unavailable

23

NO DESCRIPTION AVAILABLE | B,C&EC,N&EN; KOKUSAN This part replaces 33410-45020.

33410-45021

Unavailable

24

COIL ASSY,IGNIT | B,C&EC,N&EN; ND This part replaces 33420-45010.

33410-45012

Unavailable

24

NO DESCRIPTION AVAILABLE | B,C&EC,N&EN; KOKUSAN This part replaces 33420-45020.

33410-45021

Unavailable

25

.NUT | B,C&EC,N&EN This part replaces 08310-11068.

08310-00067

$2.13

26

CLAMP | B,C&EC,N&EN This part replaces 09403-06307.

09403-06329

$2.32

27

TERMINAL, POWER SOURCE | N&EN; Includes Item(s) 28

38850-47000

Unavailable

28

FUSE | N&EN; 10A

09481-10001

$1.71

29

SCREW | N&EN This part replaces 02112-06168.

02112-06167

$1.49

30

LOCK WASHER | N&EN This part replaces 08321-21068.

08321-01067

$2.13

31

WASHER | N&EN This part replaces 08322-21068.

08322-01067

$2.13

32

LEAD WIRE | N&EN

36851-47000

Unavailable
