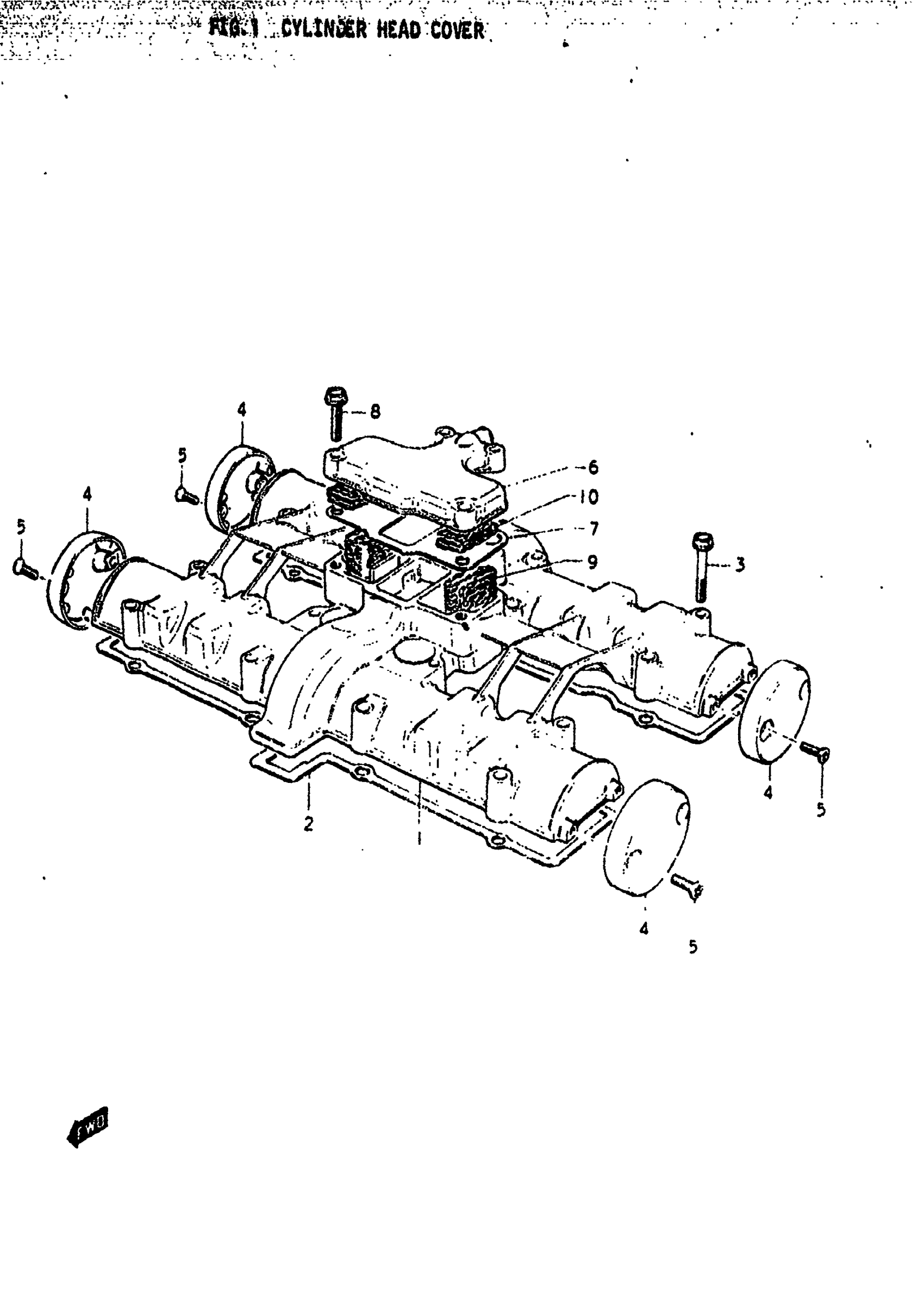

Suzuki GS750B (1979) CYLINDER HEAD COVER Diagram

#

Description
Price

1

COVER, CYLINDER HEAD | B,C&EC,N&EN

11171-45000

Unavailable

2

GASKET,CYL HD C | B This part replaces 11173-45001.

11173-45004-H17

Unavailable

2

GASKET,CYL HD C | C&EC,N&EN This part replaces 11173-45002.

11173-45004-H17

Unavailable

3

BOLT | B,C&EC,N&EN This part replaces 01517-06408.

01550-06407

$2.69

4

CAP, SIDE | B,C&EC,N&EN This part replaces 11174-45000.

11174-49000

Unavailable

5

SCREW | B,C&EC,N&EN This part replaces 02132-05128.

02122-05127

$1.93

6

NO DESCRIPTION AVAILABLE | B,C&EC,N&EN This part replaces 11176-45000.

11176-45011

Unavailable

7

GASKET,BRTHR CV | B,C&EC,N&EN This part replaces 11177-45000.

11177-45000-H17

Unavailable

8

BOLT | B,C&EC,N&EN This part replaces 01517-06258.

01550-06257

$2.30

9

SEPARATOR,OIL B | B,C&EC,N&EN; 34x110 This part replaces 11186-45000.

11186-45001

Unavailable

10

SEPARATOR,OIL B | B,C&EC,N&EN; 35x68 This part replaces 11187-45000.

11187-45001

Unavailable
