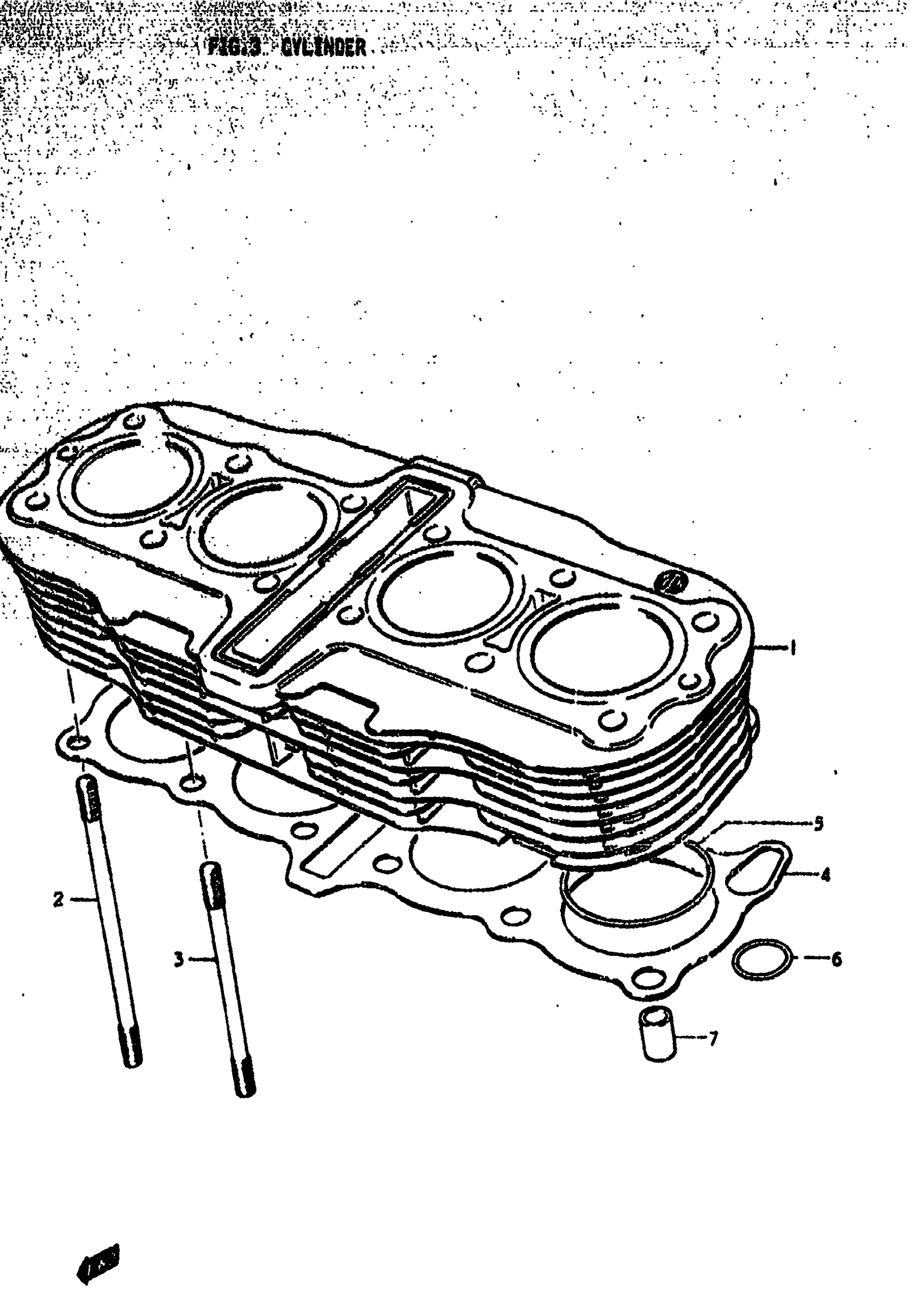

Suzuki GS750B (1979) CYLINDER Diagram

#

Description
Price

1

CYLINDER | B,C&EC This part replaces 11210-45001.

11210-45003

Unavailable

1

CYLINDER | N&EN This part replaces 11210-45002.

11210-45003

Unavailable

2

STUD BOLT | B,C&EC This part replaces 09108-10019.

09108-10027

$6.58

2

STUD BOLT | N&EN

09108-10027

$6.58

3

STUD BOLT (L:168) | B,C&EC This part replaces 09108-10020.

09108-10112

$12.49

3

STUD BOLT (L:168) | N&EN This part replaces 09108-10028.

09108-10112

$12.49

4

GASKET,CYLINDER | B,C&EC This part replaces 11241-45080.

11241-45110-H17

Unavailable

4

GASKET,CYLINDER | N&EN This part replaces 11241-45082.

11241-45110-H17

Unavailable

5

O RING | B,C&EC,N&EN

09280-70001

$6.00

6

O RING | B,C&EC,N&EN

09280-21004

Unavailable

7

PIN | B,C&EC,N&EN This part replaces 09206-13001.

04211-13189

$2.19
