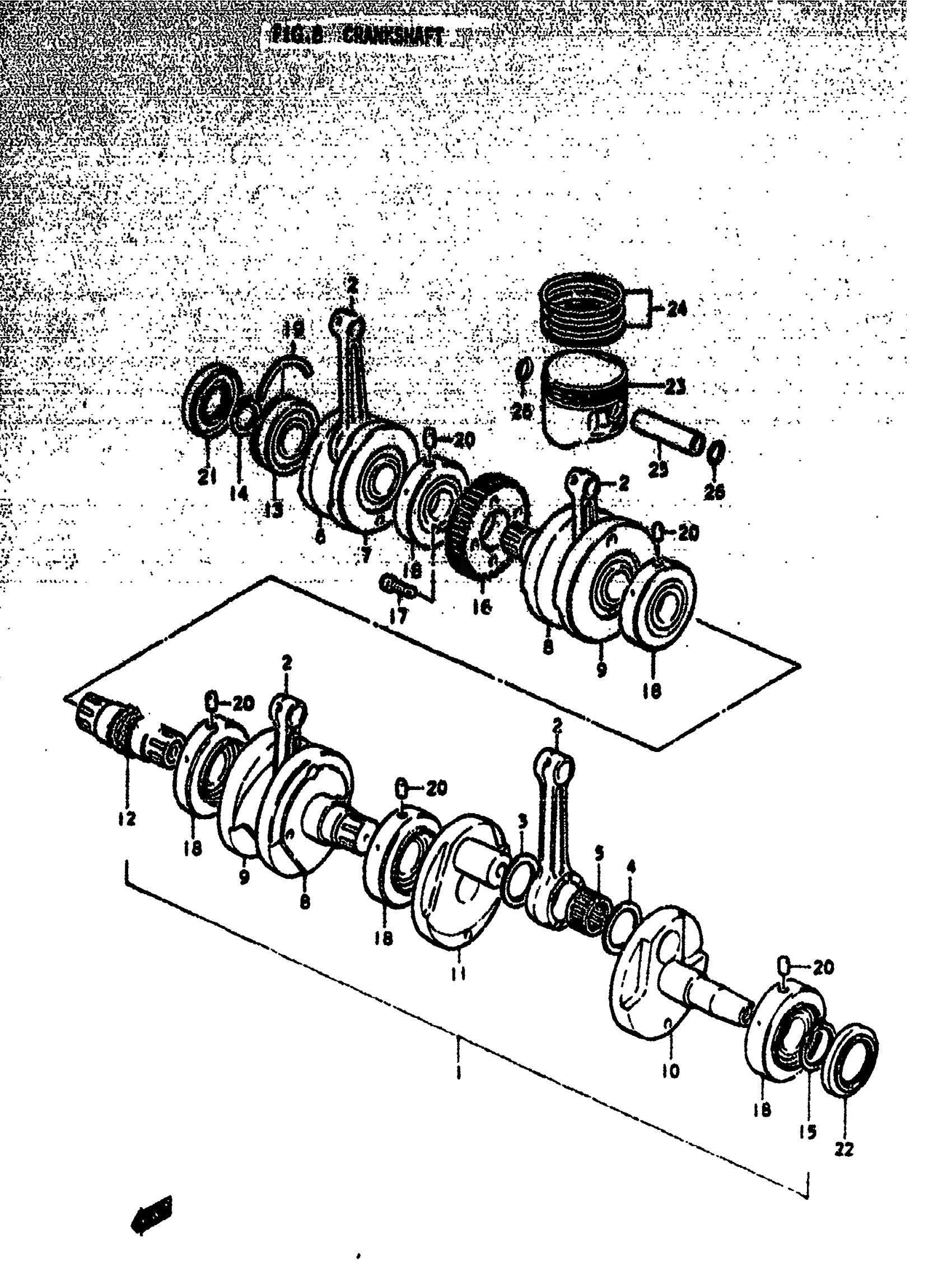

Suzuki GS750B (1979) CRANKSHAFT Diagram

#

Description
Price

1

CRANKSHAFT ASSY | B; TO 12200-45001 SEE NOTE This part replaces 12200-45000.

12200-45002

Unavailable

1

CRANKSHAFT ASSY | B; TO 12200-45002

12200-45001

Unavailable

1

CRANKSHAFT ASSY | C&EC,N&EN; Includes Item(s) 2 - 18

12200-45002

Unavailable

2

ROD, CONNECTING | B,C&EC,N&EN

12161-45000

Unavailable

3

WASHER | B,C&EC,N&EN; 28x48x2

09160-28009

Unavailable

4

WASHER | B,C&EC,N&EN; 28x48x1

09160-28010

Unavailable

5

BEARING | B,C&EC,N&EN

09263-28010

Unavailable

6

CRANKSHAFT, RH (8 THREAD) | B; TO 12220-45001 SEE NOTE This part replaces 12220-45000.

12220-45001

Unavailable

6

CRANKSHAFT, RH (8 THREAD) | C&EC,NEN

12220-45001

Unavailable

7

WEB, CRANKSHAFT RH | B,C&EC,N&EN

12230-45000

Unavailable

8

CRANKSHAFT, MIDDLE | B; TO 12241-45001 USED WITH 21111-45001 This part replaces 12241-45000.

12241-45001

Unavailable

8

CRANKSHAFT, MIDDLE | C&EC,N&EN

12241-45001

Unavailable

9

WEB, CRANKSHAFT MIDDLE | B,C&EC,N&EN

12250-45000

Unavailable

10

CRANKSHAFT, LH | B,C&EC,N&EN

12261-45000

Unavailable

11

WEB, CRANKSHAFT LH | B,C&EC,N&EN

12230-45000

Unavailable

12

SHAFT, TIMING CHAIN DRIVE | B,C&EC,N&EN; NT:15

12281-45000

Unavailable

13

BEARING, RH | B,C&EC,N&EN

09262-30033

Unavailable

14

CIRCLIP | B,C&EC,N&EN This part replaces 08331-11308.

08331-31309

$2.57

15

CIRCLIP | B,C&EC

08331-31329

Unavailable

16

GEAR, PRIMARY DRIVE | B; NT:46 This part replaces 21111-45000.

21111-45001

Unavailable

16

GEAR, PRIMARY DRIVE | C&EC,N&EN; NT:46

21111-45001

Unavailable

17

BOLT | B,C&EC,N&EN This part replaces 09106-08006.

07130-0816A

$3.16

18

BEARING | B,C&EC,N&EN

09264-32001

Unavailable

19

O RING, BREARING RH | B,C&EC,N&EN

09390-72004

Unavailable

20

PIN | B,C&EC,N&EN

04221-07129

$1.86

21

OIL SEAL, RH | B,C&EC,N&EN

09283-30021

$19.20

22

OIL SEAL, STARTER CLUTCH GEAR | B,C&EC,N&EN; 48x60x8 This part replaces 09289-48001.

09289-48002

$10.77

23

PISTON (STD) | B,C&EC,N&EN; FROM 12111-45001

12111-45002

Unavailable

23

NO DESCRIPTION AVAILABLE | B,C&EC,N7EN; FROM 12111-45761 This part replaces 12111-45002-050.

12103-45820-050

Unavailable

23

NO DESCRIPTION AVAILABLE | B,C&EC,N&EN; FROM 12111-45711 This part replaces 12111-45002-100.

12103-45820-100

Unavailable

24

PISTON RING SET (STD) | B,C&EC,N&EN; FROM 12100-45811

12140-45013

Unavailable

24

PISTON RING SET (OS:0.5) | B,C&EC,N&EN; FROM 12100-45821

12140-45013-050

Unavailable

24

PISTON RING SET (OS:1.0) | B,C&EC,N&EN; FROM 12100-45831

12140-45013-100

Unavailable

25

PIN, PISTON | B,C&EC,N&EN

12151-29001

$13.92

26

SNAP RING | B,C&EC,N&EN This part replaces 09381-16002.

09381-16001

$1.67
