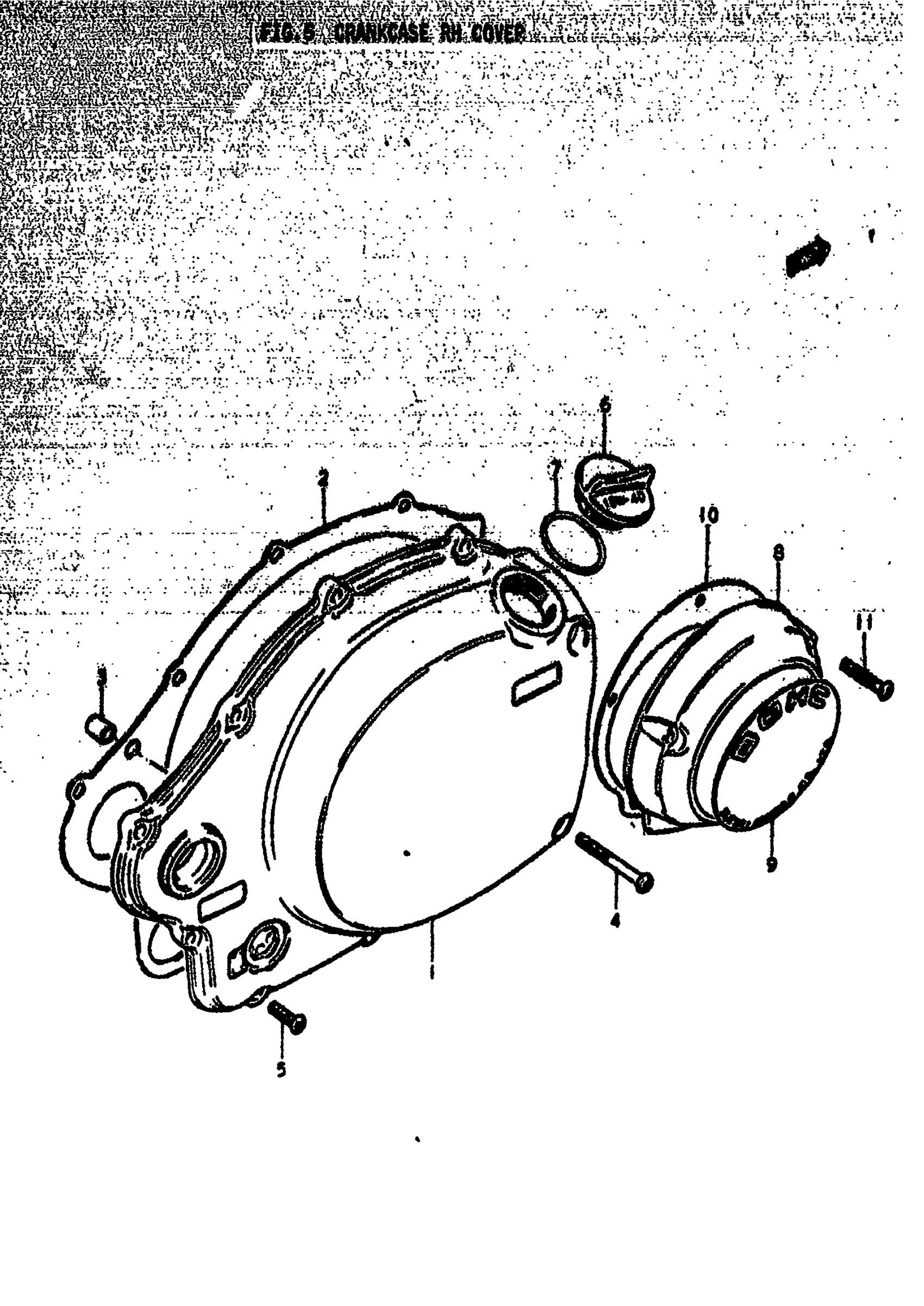

Suzuki GS750B (1979) CRANKCASE RH COVER Diagram

#

Description
Price

1

COVER, CLUTCH | BC&,EC,N&EN

11340-45000

Unavailable

2

GASKET,CLUTCH | B,C&EC This part replaces 11482-45000.

11482-45100-H17

Unavailable

2

GASKET,CLUTCH | N&EN This part replaces 11482-45100.

11482-45100-H17

Unavailable

3

PIN | BC&,EC,N&EN

04211-09129

$1.65

4

SCREW | BC&,EC,N&EN

02112-06557

$2.53

5

SCREW | BC&,EC,N&EN This part replaces 02112-06208.

02112-06207

$1.78

6

CAP, OIL FILLER | BC&,EC,N&EN This part replaces 09259-30001.

09200-30810

$10.15

7

O RING | BC&,EC,N&EN

09280-32005

$1.99

8

COVER, CONTACT BREAKER | B,C&EC This part replaces 11381-45000.

11381-49002

Unavailable

8

COVER, CONTACT BREAKER | N&EN This part replaces 11381-49000.

11381-49002

Unavailable

9

EMBLEM | B,C&EC This part replaces 68235-45000.

68235-45200

Unavailable

9

EMBLEM | N&EN This part replaces 68235-45100.

68235-45200

Unavailable

10

GASKET | BC&,EC,N&EN

11491-45000

Unavailable

11

SCREW | BC&,EC,N&EN This part replaces 02112-05308.

02112-0530A

$2.05
