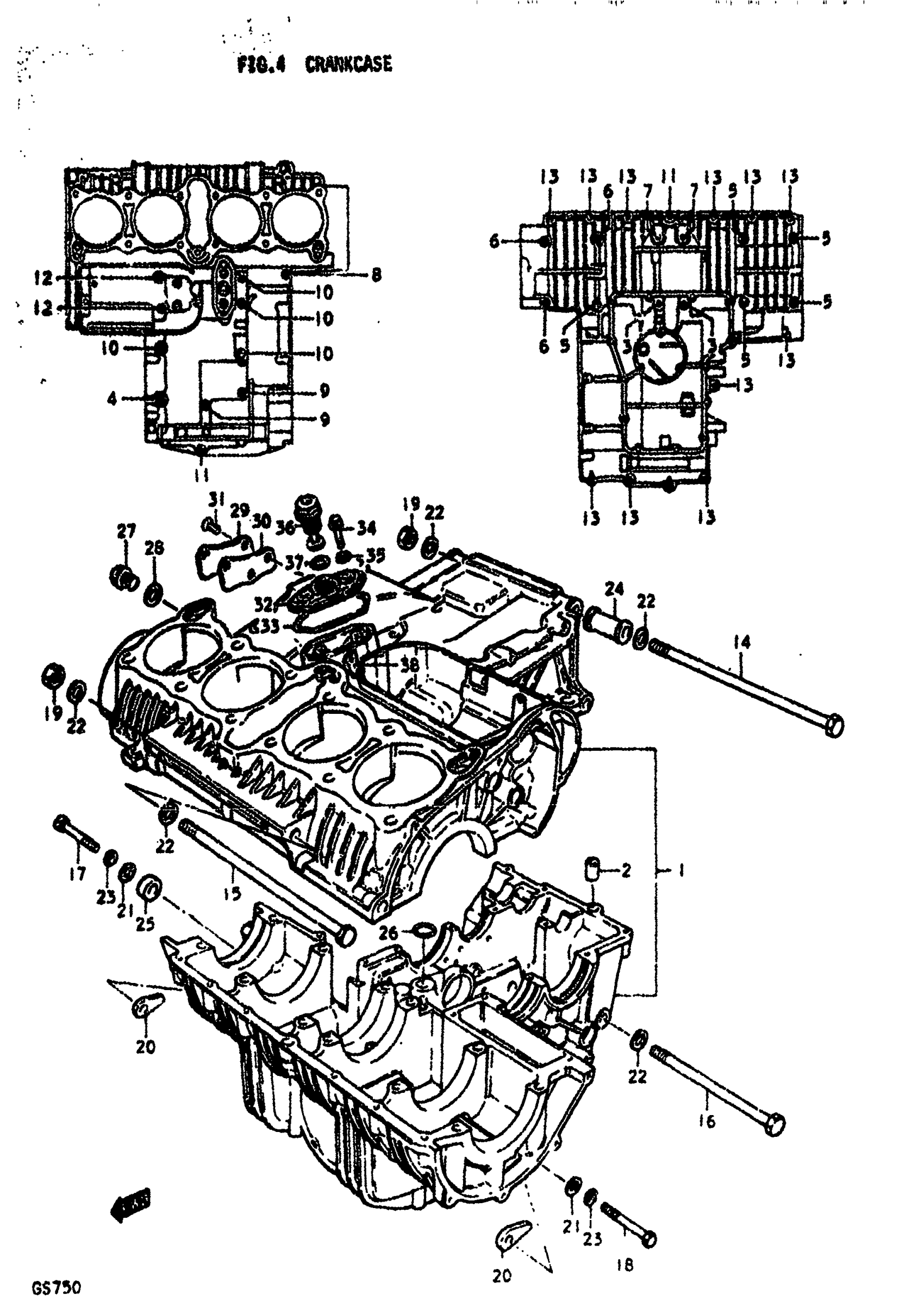

Suzuki GS750B (1979) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET | B,C&EC,N&EN; Includes Item(s) 2 - 13

11300-45810

Unavailable

2

PIN | B,C&EC,N&EN This part replaces 09206-13001.

04211-13189

$2.19

3

BOLT (8X125) | B,C&EC,N&EN; 8x125 This part replaces 09103-08020.

09103-08106

Unavailable

4

BOLT | B,C&EC,N&EN This part replaces 01517-08958.

01550-08957

$5.37

5

BOLT | B,C&EC,N&EN This part replaces 01517-08908.

01550-08907

$5.18

6

BOLT | B,C&EC,N&EN This part replaces 01517-08658.

01550-08657

$4.68

7

BOLT | B,C&EC,N&EN This part replaces 01517-08608.

01550-08607

$3.76

8

BOLT (6X100) | B,C&EC,N&EN; 6x100 This part replaces 09103-06020.

09103-06060

$2.50

9

BOLT | B,C&EC,N&EN This part replaces 01517-06908.

01550-06907

$4.60

10

BOLT | B,C&EC,N&EN This part replaces 01517-06808.

01550-06807

Unavailable

11

BOLT | B,C&EC,N&EN This part replaces 01517-06558.

01550-06557

$3.30

12

BOLT (CHROME) | B,C&EC,N&EN This part replaces 01517-06458.

01550-06457

$2.69

13

BOLT | B,C&EC,N&EN This part replaces 01517-06408.

01550-06407

$2.69

14

ENGINE MOUNT BO | B,C&EC,N&EN; 10x250 This part replaces 09101-10010.

09101-10010-XC0

Unavailable

15

BOLT, ENGINE MOUNTING | B,C&EC,N&EN; 10x235

09100-10108

Unavailable

16

BOLT | B,C&EC; 10x160 This part replaces 09100-10092.

41189-17X00

Unavailable

16

BOLT, ENGINE MOUNTING | N&EN; 10x165

09100-10078

$12.70

17

BOLT, 10X65 | B,C&EC,N&EN This part replaces 01107-10658.

01500-1065B

$5.88

18

BOLT | B,C&EC,N&EN This part replaces 01107-10558.

01500-1055A

$3.55

19

NUT | B,C&EC,N&EN

09159-10011

$3.23

20

NUT | B,C&EC,N&EN

09159-10020

$5.18

21

WASHER | B,C&EC,N&EN

09160-10005

$1.87

22

WASHER | B,C&EC,N&EN This part replaces 08322-11108.

08322-01107

$2.15

23

LOCK WASHER | B,C&EC,N&EN This part replaces 08321-21108.

08321-01107

$1.84

24

SPACER (L:50) | B,C&EC; L:50 This part replaces 09180-10046.

11610-44010

Unavailable

24

SPACER (L:50) | N&EN This part replaces 11610-45000.

11610-44010

Unavailable

25

SPACER | B,C&EC,N&EN; 10.2x24x11

09180-10051

Unavailable

26

O RING, OIL GALLERY | B,C&EC,N&EN

09280-13001

$2.72

27

PLUG | B,C&EC,N&EN This part replaces 09247-14012.

09247-14026

$3.76

28

GASKET | B,C&EC,N&EN

09168-14004

$1.83

29

CAP, OIL GALLERY | B,C&EC,N&EN

11394-45000

Unavailable

30

GASKET,OIL GALL | B,C&EC,N&EN This part replaces 11497-45000.

11497-45000-H17

Unavailable

31

SCREW | B,C&EC,N&EN This part replaces 02122-06168.

02122-06167

$1.49

32

HOUSING, OIL PRESSURE SWITCH | B,C&EC,N&EN

16445-45000

Unavailable

33

O RING | B,C&EC,N&EN

16448-45000

$8.89

34

BOLT | B,C&EC,N&EN This part replaces 01517-06258.

01550-06257

$2.30

35

GASKET (5.8X13X1.2) | B,C&EC,N&EN This part replaces 09168-06009.

09168-06023

$2.35

36

SWITCH ASSY,OIL | B,C&EC,N&EN This part replaces 37820-45050.

37820-45061

$31.65

37

O RING | B,C&EC,N&EN

09280-19001

$1.49

38

GROMMET | B,C&EC,N&EN This part replaces 31271-45000.

31271-45001

Unavailable
