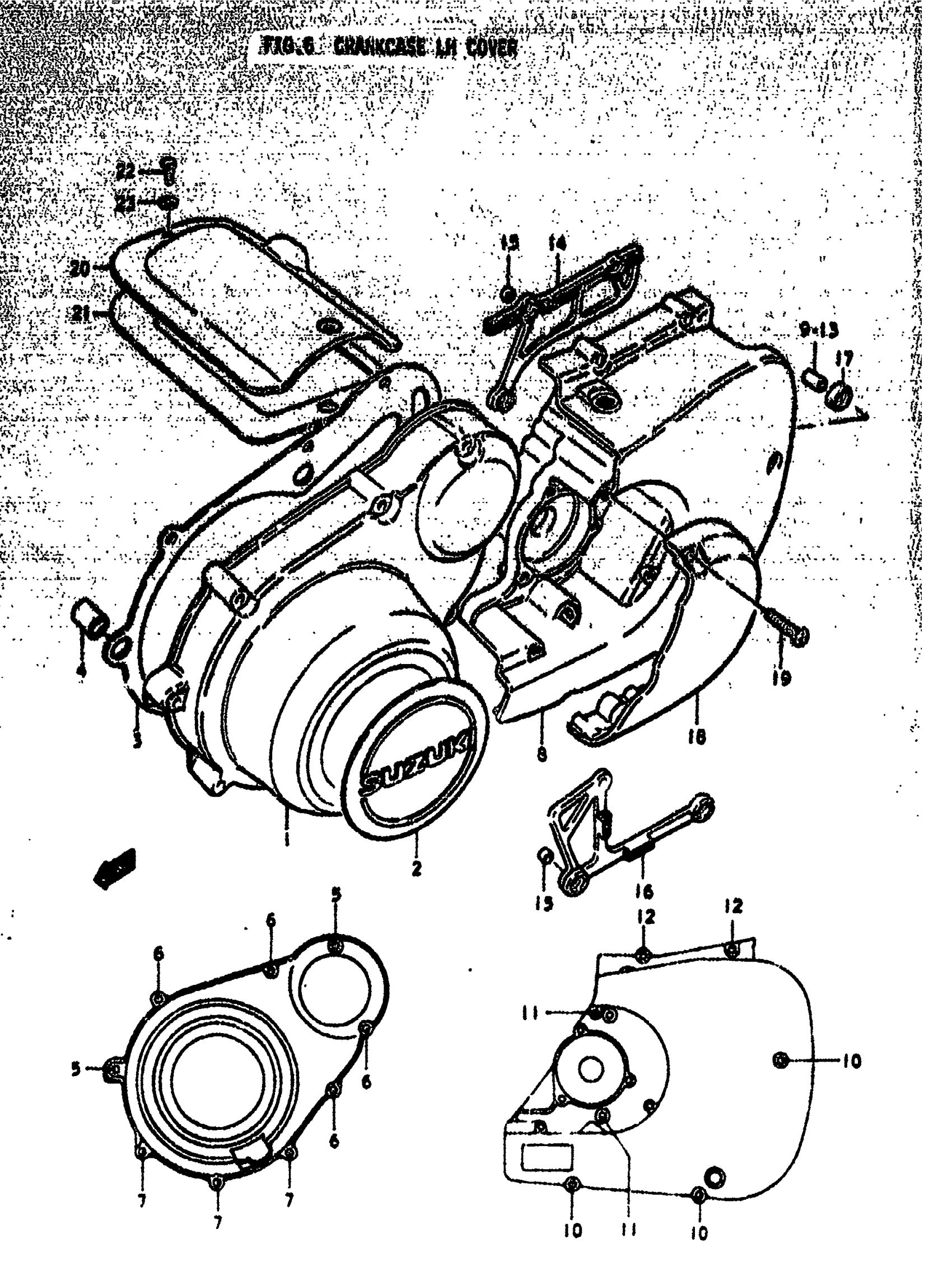

Suzuki GS750B (1979) CRANCASE LH COVER Diagram

#

Description
Price

1

COVER, GENERATOR | B,C&EC,N&EN This part replaces 11351-45000.

11351-45001

Unavailable

2

EMBLEM | B,C&EC This part replaces 68233-45000.

68233-45200

$18.50

2

EMBLEM | N&EN This part replaces 68235-45100.

68235-45200

Unavailable

3

GASKET,MAG COVE | B,C&EC,N&EN This part replaces 11483-45000.

11483-45000-H17

$11.75

4

PIN | B,C&EC,N&EN This part replaces 09206-13001.

04211-13189

$2.19

5

SCREW (6X45) | B,C&EC,N&EN This part replaces 02112-06458.

02112-06457

$1.78

6

SCREW (6X40) | B,C&EC,N&EN This part replaces 02112-06408.

02112-06407

$1.78

7

SCREW | B,C&EC,N&EN This part replaces 02112-06358.

02112-06357

$1.78

8

COVER, ENGINE SPROCKET | B This part replaces 11361-45001.

11361-45002

Unavailable

8

COVER, ENGINE SPROCKET | C&EC,N&EN

11361-45002

Unavailable

9

PIN | C&EC,N&EN

04211-09129

$1.65

10

SCREW | B,C&EC,N&EN This part replaces 02112-06858.

02112-06857

$2.62

11

SCREW (6X45) | B,C&EC,N&EN This part replaces 02112-06458.

02112-06457

$1.78

12

SCREW | B,C&EC,N&EN This part replaces 02112-06258.

02112-06257

$1.78

13

SPACER | B This part replaces 09180-06072.

09180-06271

$2.35

14

CUSHION, NO.1 | B

11484-45000

Unavailable

15

SPACER (6.5X9X5) | B This part replaces 09180-06073.

09180-06306

$2.03

16

CUSHION, NO.2 | B

11485-45000

Unavailable

17

CUSHION, NO.3 | B

11486-45000

Unavailable

18

CAP, CLUTCH RELEASE | B,C&EC,N&EN

11387-45000

Unavailable

19

SCREW | B,C&EC,N&EN This part replaces 02112-05258.

02112-05257

$1.49

20

COVER, STARTER MOTOR | B,C&EC This part replaces 11382-45000.

11382-49002

$46.38

20

COVER, STARTER MOTOR | N&EN This part replaces 11382-49001.

11382-49002

$46.38

21

GASKET MOTOR CO | B This part replaces 11493-45000.

11493-45002

Unavailable

22

BOLT | B,C&EC,N&EN This part replaces 01104-05108.

01500-0510B

$1.80

23

WASHER | B,C&EC,N&EN This part replaces 08322-21058.

08322-01057

$2.13
