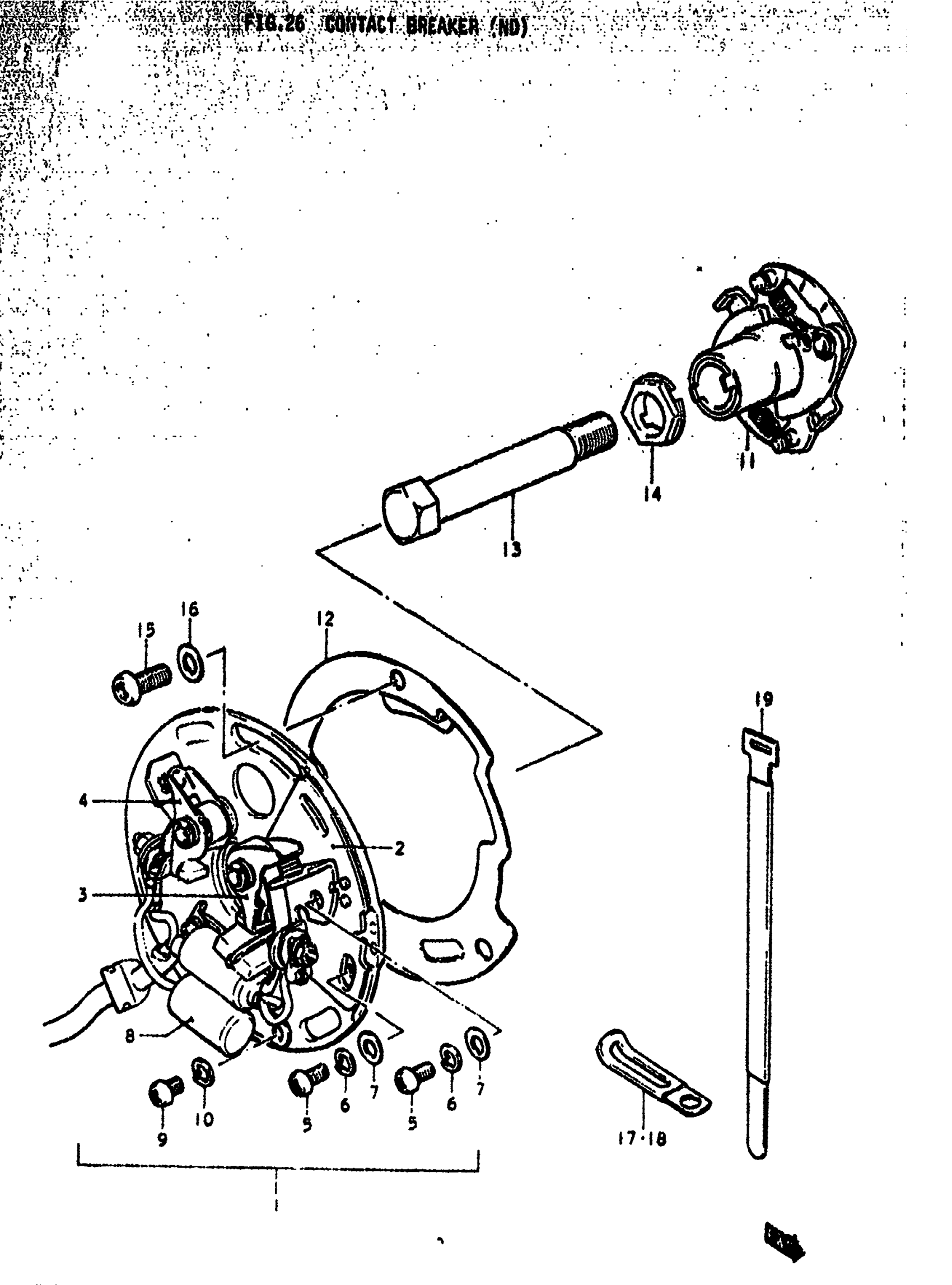

Suzuki GS750B (1979) CONTACT BREAKER (ND) Diagram

NO DESCRIPTION AVAILABLE | B,C&EC,N&EN; ND; Includes Item(s) 2 - 10 This part replaces 33110-45010.

33110-45X00

Unavailable

PLATE, POINT SHIFTING | B,C&EC,N&EN

33143-45010

Unavailable

POINT ASSY, CONTACT RH | B,C&EC,N&EN

33172-36210

Unavailable

POINT ASSY, CONTACT LH | B,C&EC,N&EN

31440-36210

Unavailable

SCREW | B,C&EC,N&EN

09125-04001

Unavailable

LOCK WASHER | B,C&EC,N&EN This part replaces 08321-21048.

08321-0104A

$1.84

WASHER | B,C&EC,N&EN This part replaces 08322-21048.

08322-01047

$1.86

CONDENSER | B,C&EC,N&EN This part replaces 32341-31010.

33261-33010

Unavailable

SCREW | B,C&EC,N&EN This part replaces 02111-04067.

02112-0406B

$1.55

LOCK WASHER | B,C&EC,N&EN This part replaces 08321-21068.

08321-01067

$2.13

GOVERNOR ASSY, ADVANCE | B; ND, ID:11

33120-45010

Unavailable

GOVERNOR ASSY, ADVANCE | B,C&EC,N&EN; ND, ID:8.5

33120-45011

Unavailable

PLATE, TIMING | B,C&EC,N&EN

33371-45001

Unavailable

BOLT | B; 10 THREAD

33460-45000

Unavailable

BOLT | B,C&EC,N&EN; 8 THREAD This part replaces 01107-08608.

01500-0860B

$3.49

WASHER | B; ID:11, T:5.5

33465-45000

Unavailable

WASHER | B,C&EC,N&EN; ID:8.3, T:7

33465-47000

Unavailable

SCREW | B,C&EC,N&EN

09125-05024

$1.72

WASHER | B,C&EC,N&EN This part replaces 08322-11058.

08322-01057

$2.13

CLAMP | B,C&EC,N&EN This part replaces 09404-06401.

09404-06039

$1.74

CLAMP | B,C&EC,N&EN This part replaces 09404-08401.

09404-08420

$3.16

CLAMP | B,C&EC,N&EN; L:180 This part replaces 09407-18301.

09407-18302

$2.28
