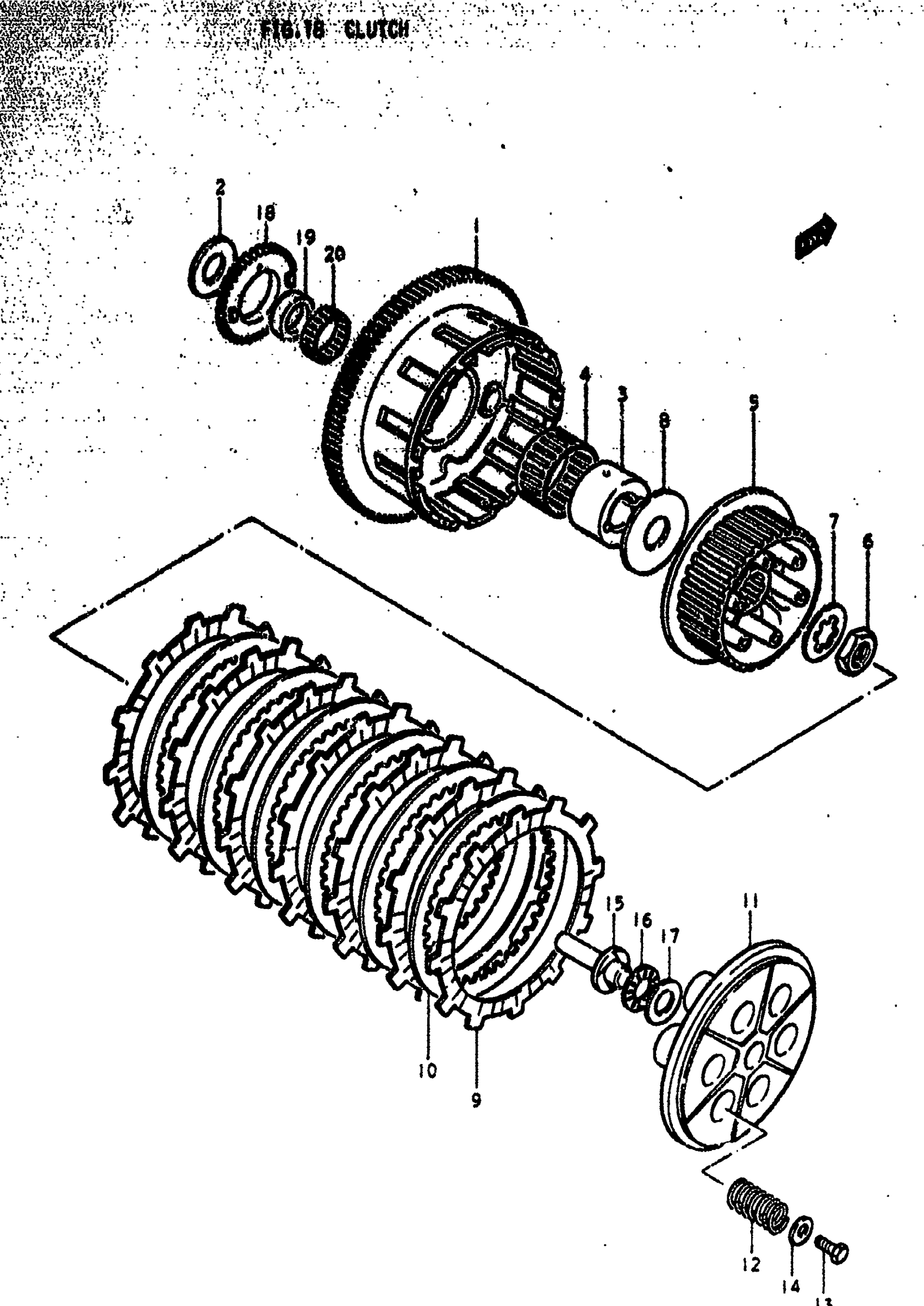

Suzuki GS750B (1979) CLUTCH Diagram

#

Description
Price

1

GEAR ASSY, PRIMARY DRIVEN | B,C&EC,N&EN; NT:99

21200-45001

Unavailable

2

WASHER | B,C&EC,N&EN; 25x50x2.5 This part replaces 09160-25023.

09160-25055

$8.62

3

SPACER | B,C&EC,N&EN This part replaces 21251-45001.

21251-49200

Unavailable

4

BEARING | B,C&EC,N&EN This part replaces 09263-51001.

09263-51002

$44.23

5

HUB, SLEEVE | B,C&EC,N&EN

21411-45000

Unavailable

6

NUT, PIVOT RH | B,C&EC,N&EN This part replaces 09140-24004.

09140-24007

$3.89

7

WASHER | B,C&EC,N&EN

09167-25007

Unavailable

8

WASHER | B,C&EC,N&EN; 25x66x3.5

09160-25022

Unavailable

9

PLATE, DRIVE | B,C&EC,N&EN This part replaces 21441-45000.

21441-45001

$24.07

10

PLATE,CLUTCH DRIVEN (T:1.6) | B,C&EC,N&EN This part replaces 21451-45000.

21451-28C31

$11.81

11

PLATE, PRESSURE | B,C&EC,N&EN This part replaces 21462-16500.

21462-14301

$59.33

12

SPRING | B,C&EC,N&EN

09440-19007

$2.52

13

BOLT, CANISTER | B,C&EC,N&EN This part replaces 01107-06168.

01500-06167

$1.97

14

WASHER (6.5X20X1.6) | B,C&EC,N&EN; 15.5x24x2.3 This part replaces 09160-06020.

09160-06066

$1.89

15

PIECE, PUSH | B,C&EC,N&EN

23121-45000

Unavailable

16

BEARING | B,C&EC,N&EN

09263-15003

$8.29

17

WASHER, CLUTCH PUSH | B,C&EC,N&EN; 15x26x1 This part replaces 09160-15015.

09160-15045

$3.89

18

GEAR, OIL PUMP DRIVE | B; NT:38 This part replaces 16321-45001.

16321-45002

Unavailable

18

GEAR, OIL PUMP DRIVE | C&EC,N&EN; NT:38

16321-45002

Unavailable

19

SPACER | B,C&EC,N&EN

16325-45001

Unavailable

20

BEARING | B,C&EC,N&EN

09263-36002

Unavailable
