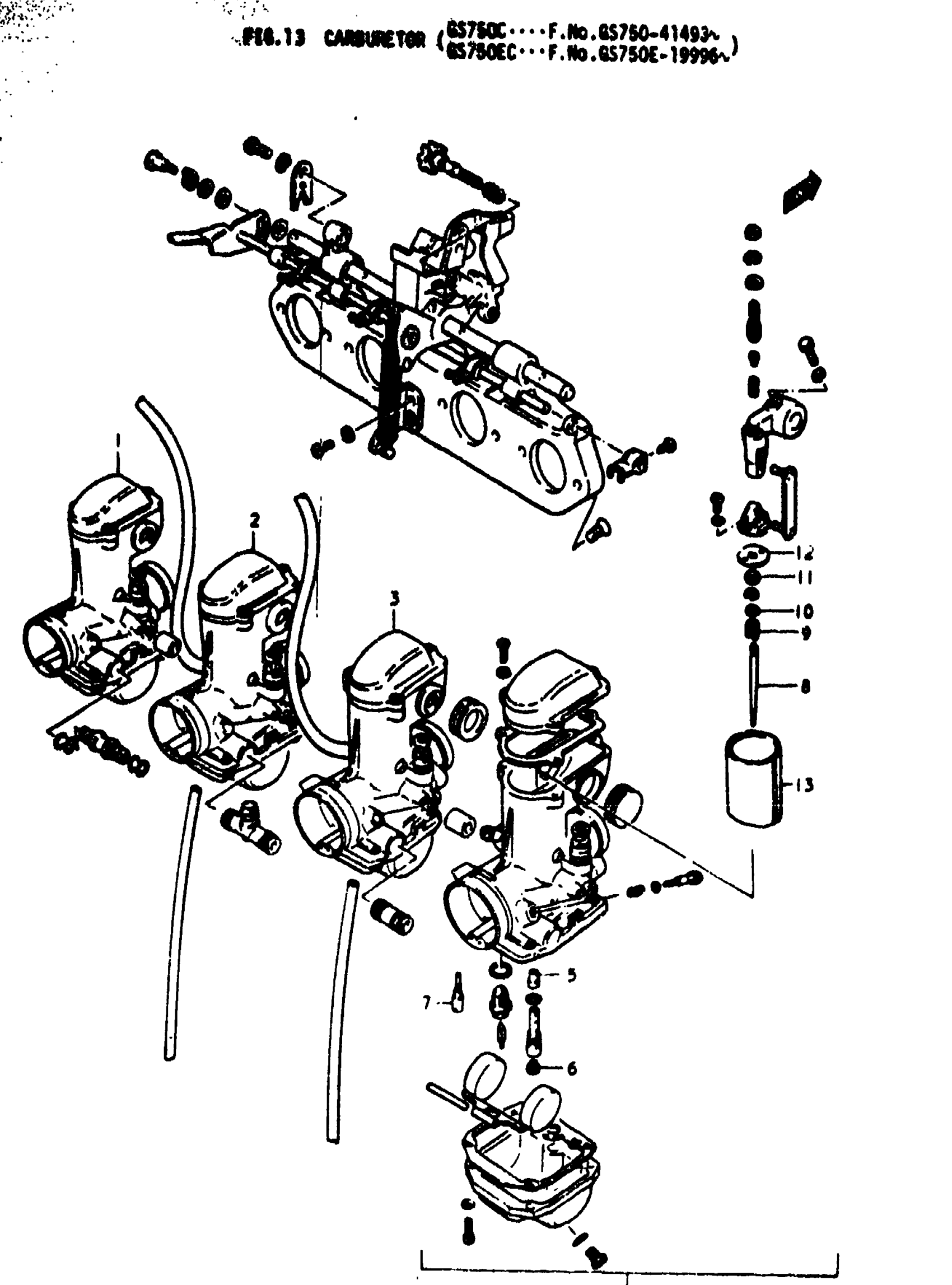

Suzuki GS750B (1979) CARBURETOR (GS750C....F.NO.GS750-41493-GS750EC..F.NO.GS750E-19996-) Diagram

#

Description
Price

0

CARBURETOR ASSY | EMISSION STYLE; Includes Item(s) 1 - 13

13200-45030

Unavailable

1

CARBURETOR ASSY, LH

13201-45030

Unavailable

2

CARBURETOR ASSY, CENTER LH

13202-45030

Unavailable

3

CARBURETOR ASSY, CENTER RH

13203-45030

Unavailable

4

CARBURETOR ASSY, RH

13204-45030

Unavailable

5

JET, NEEDLE | 0-4

09494-00208

Unavailable

6

.JET (#102.5) | #102.5

09491-20012

$11.38

7

JET, PILOT | #15

09492-15005

$17.58

8

NEEDLE, JET | 5DL36-2

13383-45030

Unavailable

9

SPRING

13388-47010

$6.91

10

PLATE

13382-47010

$3.56

11

RING

13387-47010

$7.22

12

PLATE

13581-47010

Unavailable

13

VALVE, THROTTLE | CA:1.5

13551-45030

Unavailable
