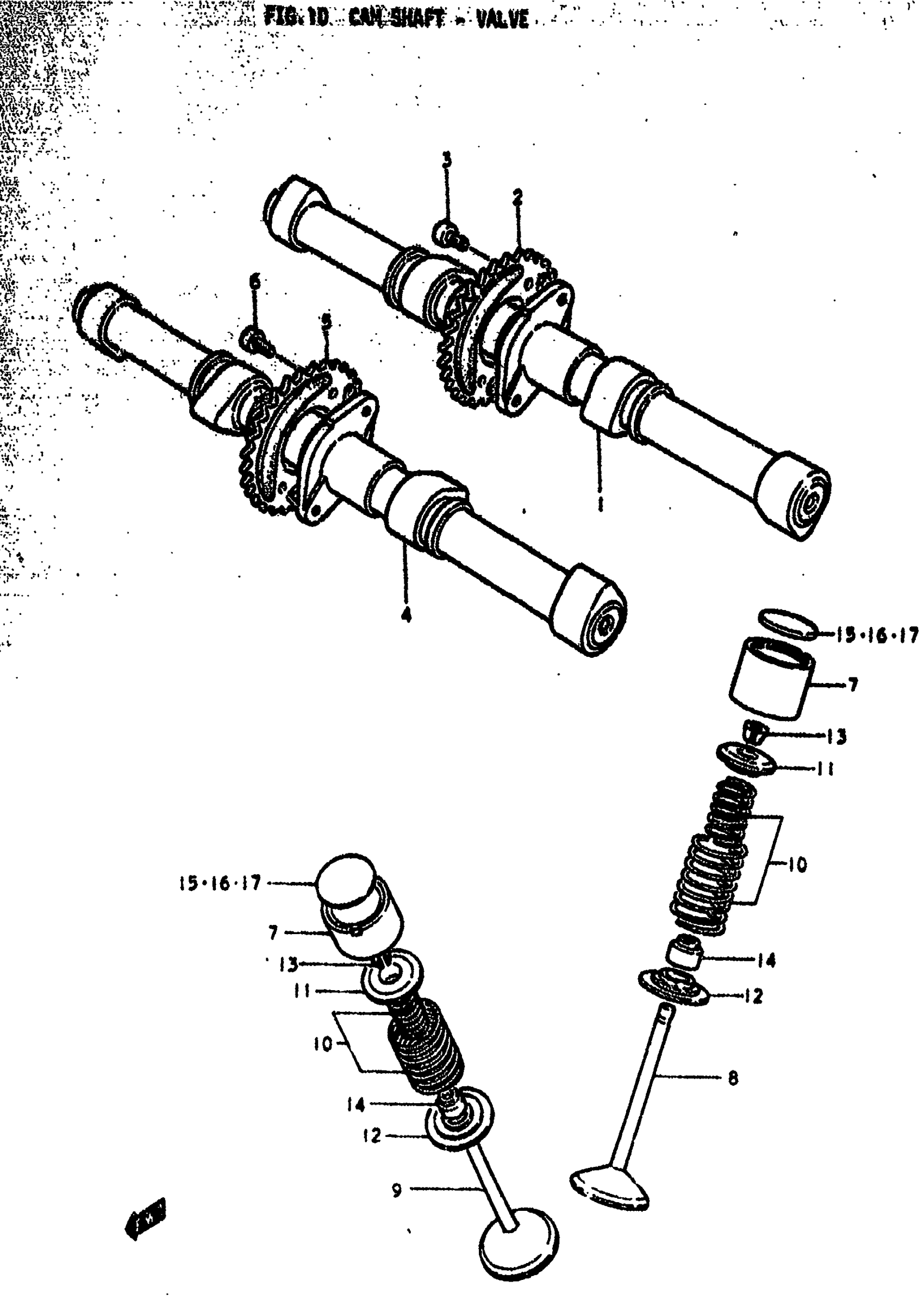

Suzuki GS750B (1979) CAM SHAFT - VALVE Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | B,C&EC,N&EN This part replaces 12711-45001.

12711-45002

Unavailable

2

SPROCKET, INTAKE (NT:30) | B,C&EC,N&EN; NT:30 This part replaces 12740-45040.

12740-45042

Unavailable

3

BOLT, NO.3 | B,C&EC,N&EN This part replaces 09106-06024.

07130-0610B

$3.21

4

NO DESCRIPTION AVAILABLE | B,C&EC,N&EN This part replaces 12721-45001.

12721-45002

Unavailable

5

SPROCKET (NT:30) | B,C&EC,N&EN; NT:30 This part replaces 12750-45040.

12750-45041

Unavailable

6

BOLT, NO.3 | B,C&EC,N&EN This part replaces 09106-06024.

07130-0610B

$3.21

7

TAPPET | B,C&EC,N&EN This part replaces 12891-45000.

12891-45001

$56.05

8

VALVE, INTAKE | B This part replaces 12911-45010.

12911-45030

Unavailable

8

VALVE, INTAKE | C&EC,N&EN This part replaces 12911-45011.

12911-45030

Unavailable

9

VALVE, EXHAUST | B This part replaces 12912-45010.

12912-45021

Unavailable

9

VALVE, EXHAUST | C&EC,N&EN This part replaces 12912-45011.

12912-45021

Unavailable

10

SPRING SET,VALV | B,C&EC,N&EN This part replaces 12900-45810.

12920-45011

$18.48

11

RETAINER, VALVE SPRING | B,C&EC,N&EN This part replaces 12931-45000.

12931-45001

$8.12

12

SEAT, SPRING | B,C&EC,N&EN

12933-45001

$6.27

13

COTTER, VALVE | B,C&EC,N&EN This part replaces 12900-45820.

12932-45010

$2.37

14

OIL SEAL | B,C&EC,N&EN

09289-07002

$7.98

15

SHIM, TAPPET (T:2.15) | (0~8); T:2.15 This part replaces 12892-45000.

12892-45000-215

$21.65

15

SHIM, TAPPET (T:2.20) | (0~8); T:2.20 This part replaces 12892-45001.

12892-45000-220

$21.65

15

SHIM, TAPPET (T:2.25) | (0~8); T:2.25 This part replaces 12892-45002.

12892-45000-225

$21.65

15

SHIM, TAPPET (T:2.30) | (0~8); T:2.30 This part replaces 12892-45003.

12892-45000-230

$21.65

15

SHIM, TAPPET (T:2.35) | (0~8); T:2.35 This part replaces 12892-45004.

12892-45000-235

$21.65

15

SHIM, TAPPET (T:2.40) | (0~8); T:2.40 This part replaces 12892-45005.

12892-45000-240

$21.65

15

SHIM, TAPPET (T:2.45) | (0~8); T:2.45 This part replaces 12892-45006.

12892-45000-245

$20.88

15

SHIM, TAPPET (T:2.50) | (0~8); T:2.50 This part replaces 12892-45007.

12892-45000-250

$20.88

15

SHIM, TAPPET (T:2.55) | (0~8); T:2.55 This part replaces 12892-45008.

12892-45000-255

$20.88

16

SHIM, TAPPET (T:2.60) | (0~8); T:2.60 This part replaces 12892-45009.

12892-45000-260

$17.42

16

SHIM, TAPPET (T:2.65) | (0~8); T:2.65 This part replaces 12892-45010.

12892-45000-265

$17.75

16

SHIM, TAPPET (T:2.70) | (0~8); T:2.70 This part replaces 12892-45011.

12892-45000-270

$17.75

16

SHIM, TAPPET (T:2.75) | (0~8); T:2.75 This part replaces 12892-45012.

12892-45000-275

$21.65

16

SHIM, TAPPET (T:2.80) | (0~8); T:2.80 This part replaces 12892-45013.

12892-45000-280

$17.75

16

SHIM, TAPPET (T:2.85) | (0~8); T:2.85 This part replaces 12892-45014.

12892-45000-285

$21.65

16

SHIM, TAPPET (T:2.90) | (0~8); T:2.90 This part replaces 12892-45015.

12892-45000-290

$21.65

16

SHIM, TAPPET (T:2.95) | (0~8); T:2.95 This part replaces 12892-45016.

12892-45000-295

$21.65

16

SHIM, TAPPET (T:3.00) | (0~8); T:3.00 This part replaces 12892-45017.

12892-45000-300

Unavailable

17

SHIM, TAPPET (T:3.05) | (0~8); T:3.05 This part replaces 12892-45018.

12892-45000-305

$21.65

17

SHIM, TAPPET (T:3.10) | (0~8); T:3.10 This part replaces 12892-45019.

12892-45000-310

$21.65

18

SHIM SET | B,EC,EN; INCLUDES REF.NO.15-1~17-2.(3PCS.EACH); Includes Item(s) 19 This part replaces 12800-45810.

12800-45811

Unavailable

19

CASE, TAPPET SHIM | B,EC,EN; INCLUDES REF. NO.15-1~17-2. (3PCS.EACH) This part replaces 99000-69480.

99000-69521

Unavailable
