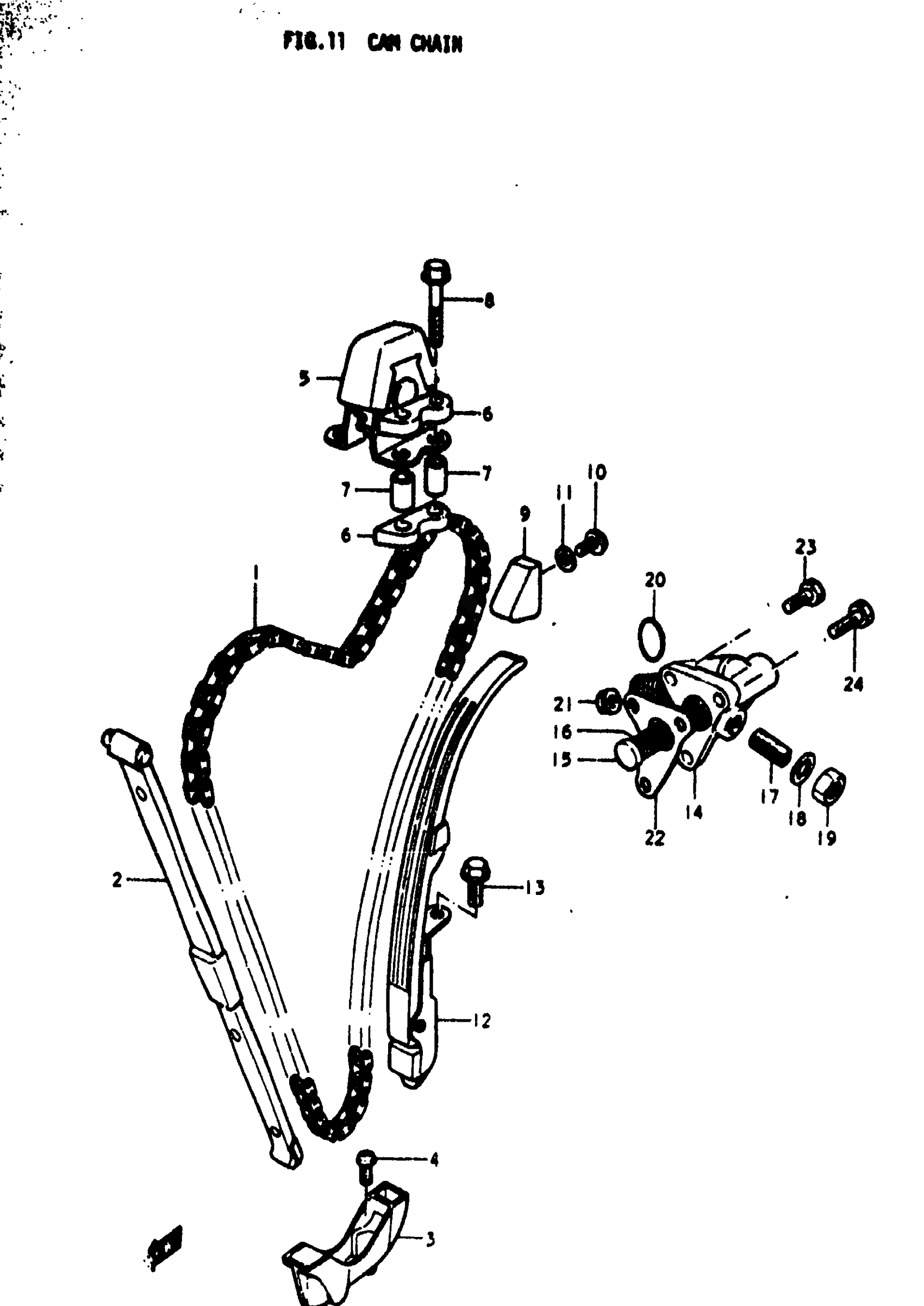

Suzuki GS750B (1979) CAM CHAIN Diagram

CHAIN, CAM SHAFT DRIVE | B,C&EC,N&EN; 120@

12760-45040

$149.60

GUIDE,CAM CHAIN | B,C&EC,N&EN This part replaces 12771-45040.

12771-45053

$40.00

HOLDER, CAM CHAIN GUIDE NO.1 | B,C&EC,N&EN

12776-45001

Unavailable

SCREW | B,C&EC,N&EN This part replaces 02112-06208.

02112-06207

$1.78

IDLER, CAM CHAIN | B,C&EC,N&EN

12780-45050

Unavailable

CUSHION | B,C&EC,N&EN

12788-45050

Unavailable

SPACER (6.5X10X13) | B,C&EC,N&EN; 6.8x10x13 This part replaces 09180-06060.

09180-06291

$2.45

BOLT | B,C&EC,N&EN This part replaces 01517-06308.

01550-06307

$2.69

GUIDE, CAM CHAIN NO.2 | B,C&EC,N&EN

12791-45040

$14.20

BOLT | B,C&EC,N&EN This part replaces 01517-06128.

01550-06127

$2.30

GASKET (5.8X13X1.2) | B,C&EC,N&EN This part replaces 09168-06009.

09168-06023

$2.35

TENSIONER, CAM CHAIN | B,C&EC,N&EN

12810-45040

Unavailable

BOLT, REAR LH | B,N&EC This part replaces 01517-08208.

01550-08207

$2.69

BOLT M8X16 | N&EN This part replaces 01517-08168.

01550-08167

$2.85

ADJUSTER,TENSIO | B,C&EC This part replaces 12830-45001.

12830-45003

Unavailable

ADJUSTER,TENSIO | N&EN; Includes Item(s) 15 - 21 This part replaces 12830-45002.

12830-45003

Unavailable

PUSH ROD | B,C&EC This part replaces 12833-45000.

12833-45001

Unavailable

PUSH ROD | N&EN

12833-45001

Unavailable

SPRING | B,C&EC,N&EN

09440-12017

$2.45

SCREW | B,C&EC,N&EN

12838-45001

$8.42

WASHER | B,C&EC,N&EN This part replaces 08322-11088.

08322-01087

$2.13

NUT | B,C&EC,N&EN This part replaces 08310-12088.

08310-00087

$2.13

.O RING (D:1.9,ID:5.7) | B,C&EC,N&EN This part replaces 09280-06003.

09280-06005

$1.49

NUT | B,C&EC,N&EN This part replaces 09159-06017.

08319-31067

$2.03

GASKET,TENS ADJ | B,C&EC,N&EN This part replaces 12837-45000.

12837-45000-H17

Unavailable

BOLT, STARTING MOTOR | B,C&EC,N&EN This part replaces 09128-06012.

09103-06212

$2.47

BOLT | B,C&EC,N&EN

09128-06017

Unavailable
