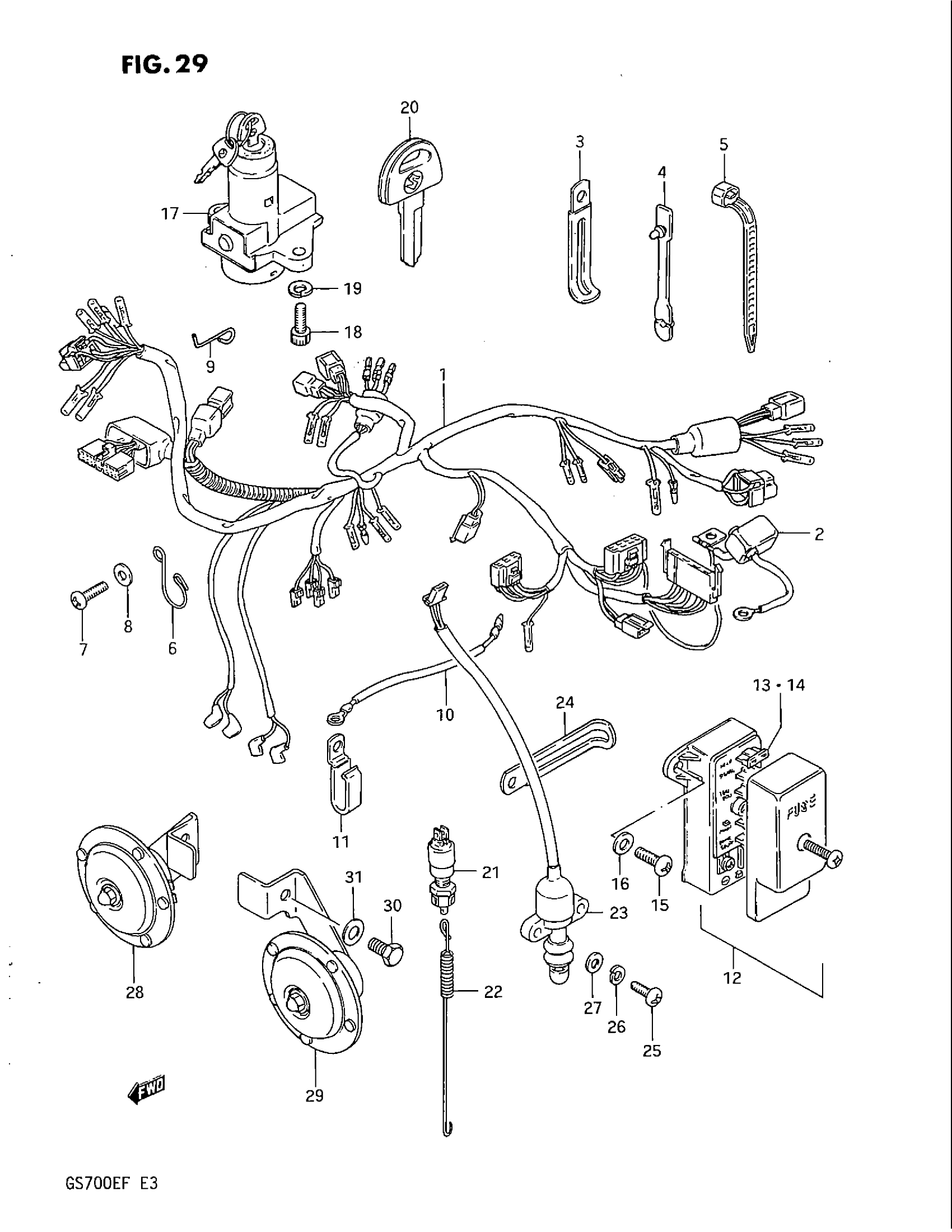

Suzuki GS700E (1985) WIRING HARNESS Diagram

#

Description
Price

1

WIRING HARNESS | GS700EF

36610-31310

Unavailable

1

WIRING HARNESS | GS700ESF; Includes Item(s) 2

36610-31360

Unavailable

2

CAP, BATTERY (+) TERMINAL

33624-38310

Unavailable

3

CLAMP(L:80) This part replaces 09404-06415.

09404-06036

$1.74

4

CLAMP

09407-05403

$2.38

5

CLAMP (L:95) | GS700ESF

09407-11401

$2.63

5

CLAMP (L:125)

09407-14403

$2.26

5

CLAMP (L:165)

09407-18402

$2.19

5

CLAMP (L:235)

09407-25401

$4.66

6

CLIP | GS700EF

36619-44002

Unavailable

7

SCREW This part replaces 02112-06128.

02112-06127

$1.84

8

WASHER This part replaces 08322-21068.

08322-01067

$2.13

9

CLIP, HANDLE SWITCH LEAD WIRE | GS700EF

36619-00A00

Unavailable

10

LEAD WIRE, OIL TEMP GAUGE

36851-31300

Unavailable

11

CLAMP This part replaces 09403-06307.

09403-06329

$2.32

12

BOX ASSY,FUSE | Includes Item(s) 13 - 14 This part replaces 36740-49401.

36740-45D00

Unavailable

13

FUSE (10A)

09481-10101

$2.07

14

FUSE (15A)

09481-15101

$2.53

15

SCREW This part replaces 02112-06126.

02112-0612A

$1.49

16

.WASHER This part replaces 08322-21066.

08322-0106B

$2.26

17

SWITCH ASSY, IGNITION | GS700EF This part replaces 37100-31301.

37100-30B20

Unavailable

17

SWITCH ASSY, IGNITION | GS700ESF

37100-31352

Unavailable

18

BOLT This part replaces 37152-47011.

07130-0616B

$2.39

19

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

20

KEY, BLANK | OPT

37146-47010

$18.39

21

SWITCH ASSY, STOP LAMP This part replaces 37740-07900.

37740-24A00

$18.20

22

SPRING, STOP LAMP This part replaces 09443-06051.

09443-06005

$3.37

23

SWITCH, SIDE STAND WARNING

37840-31302

Unavailable

24

CLAMP(L:80) This part replaces 09404-06415.

09404-06036

$1.74

25

SCREW This part replaces 02112-05205.

02112-0520B

$1.84

26

LOCK WASHER This part replaces 08321-21055.

08321-0105A

$1.84

27

WASHER, FRONT This part replaces 08322-21055.

08322-0105A

$1.84

28

HORN, HIGH PITCHED This part replaces 38501-31330.

38501-31310

Unavailable

29

HORN, LOW PITCHED This part replaces 38502-31330.

38502-31310

Unavailable

30

PLUG, DRAIN This part replaces 01107-08165.

01500-0816B

$2.50

31

WASHER This part replaces 08322-11084.

08322-0108A

$1.92
