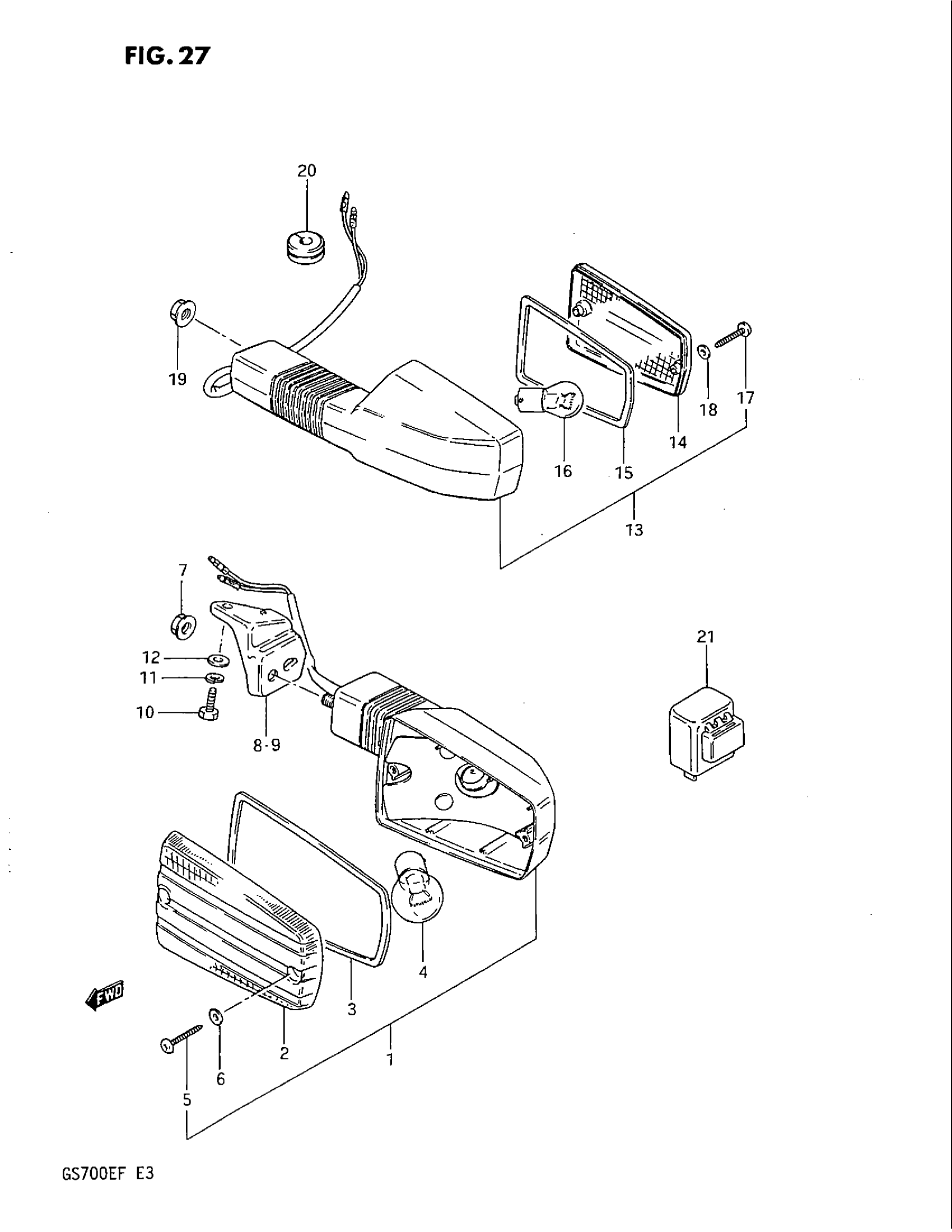

Suzuki GS700E (1985) TURN SIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY, FRONT TURN SIGNAL | GS700EF

35601-00A30

Unavailable

1

LAMP ASSY, FRONT TURN SIGNAL | GS700ESF; Includes Item(s) 2 - 6

35601-49511

Unavailable

2

LENS

35612-49510

$12.59

3

GASKET

35613-43410

Unavailable

4

BULB (12V,23/8W)

09471-12035

$4.49

5

SCREW This part replaces 03211-04208.

03211-04207

$1.49

6

GASKET

35627-43010

$2.28

7

NUT This part replaces 08316-26086.

08316-20087

$2.77

8

BRACKET, FRONT RH | GS700ESF

35671-31300

Unavailable

9

BRACKET, FRONT LH | GS700ESF

35681-31300

Unavailable

10

PLUG, DRAIN This part replaces 01107-08165.

01500-0816B

$2.50

11

LOCK WASHER This part replaces 08321-21084.

08321-0108A

$1.84

12

WASHER This part replaces 08322-11084.

08322-0108A

$1.92

13

LAMP ASSY, REAR TURN SIGNAL | Includes Item(s) 14 - 18

35603-31331

Unavailable

14

LENS,FR TURNS,G This part replaces 35612-43410.

35612-00A80

Unavailable

15

GASKET

35613-43410

Unavailable

16

BULB (12V,23W)

09471-12006

$3.98

17

SCREW This part replaces 03211-04208.

03211-04207

$1.49

18

GASKET

35627-43010

$2.28

19

NUT This part replaces 08316-26086.

08316-20087

$2.77

20

GROMMET

09308-05011

Unavailable

21

RELAY ASSY, TURNSIGNAL This part replaces 38610-31310.

38610-31X50

$80.15
