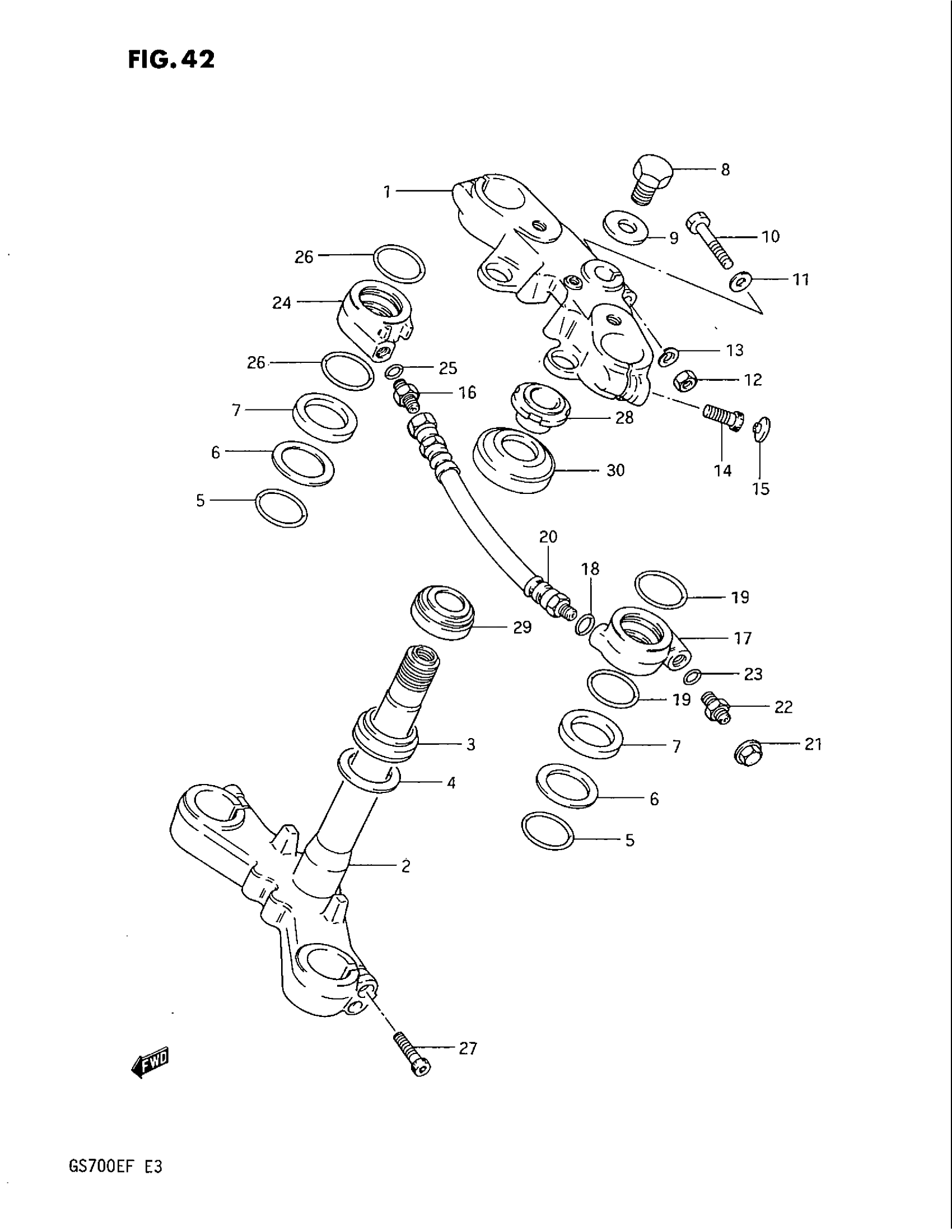

Suzuki GS700E (1985) STEERING STEM (GS700ESF) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | BLACK This part replaces 51311-31305-15T.

51311-31315-15T

Unavailable

2

NO DESCRIPTION AVAILABLE | BLACK; Includes Item(s) 3 - 4 This part replaces 51410-31365-15T.

51410-31400-294

Unavailable

3

RT 30X55X17 BEA This part replaces 09265-30005.

09265-30034

$57.05

4

SHIM, 30X40X1.5 This part replaces 08211-30402.

09181-30184

$3.07

5

RING, STOPPER

51424-31340

Unavailable

6

WASHER

51555-31340

Unavailable

7

CUSHION

51553-31300

Unavailable

8

BOLT

51352-31305

Unavailable

9

WASHER This part replaces 51356-31305.

51356-43530

$6.55

10

BOLT This part replaces 01107-08505.

01500-0850B

$3.77

11

WASHER This part replaces 08322-11084.

08322-0108A

$1.92

12

NUT, ADJUSTER This part replaces 08310-22085.

09140-08021

$2.63

13

LOCK WASHER This part replaces 08321-21084.

08321-0108A

$1.84

14

BOLT This part replaces 51353-09310.

07130-1035B

$5.18

15

CAP, UPPER SIDE

09250-08010

$2.33

16

CONNECTOR

51437-33300

Unavailable

17

JOINT AIR, LH | BLACK

51432-31301-15T

Unavailable

18

.O RING (D:1.9,ID:5.7) This part replaces 51117-45400.

09280-06005

$1.49

19

O RING B

51356-34370

Unavailable

20

TUBE, JOINT

51433-31300

Unavailable

21

CAP This part replaces 51294-31305.

51294-45440

Unavailable

22

VALVE, AIR | Includes Item(s) 23

51293-45440

Unavailable

23

.O RING (D:1.9,ID:5.7) This part replaces 51117-45400.

09280-06005

$1.49

24

JOINT AIR, RH | BLACK

51431-31301-15T

Unavailable

25

.O RING (D:1.9,ID:5.7) This part replaces 51117-45400.

09280-06005

$1.49

26

O RING B

51356-34370

Unavailable

27

BOLT This part replaces 07110-08355.

07130-0835B

$4.60

28

NUT, STEERING STEM

51631-34200

Unavailable

29

BEARING, UPPER

09265-25008

Unavailable

30

SEAL,DUST This part replaces 51643-40502.

51643-40503

$6.15
