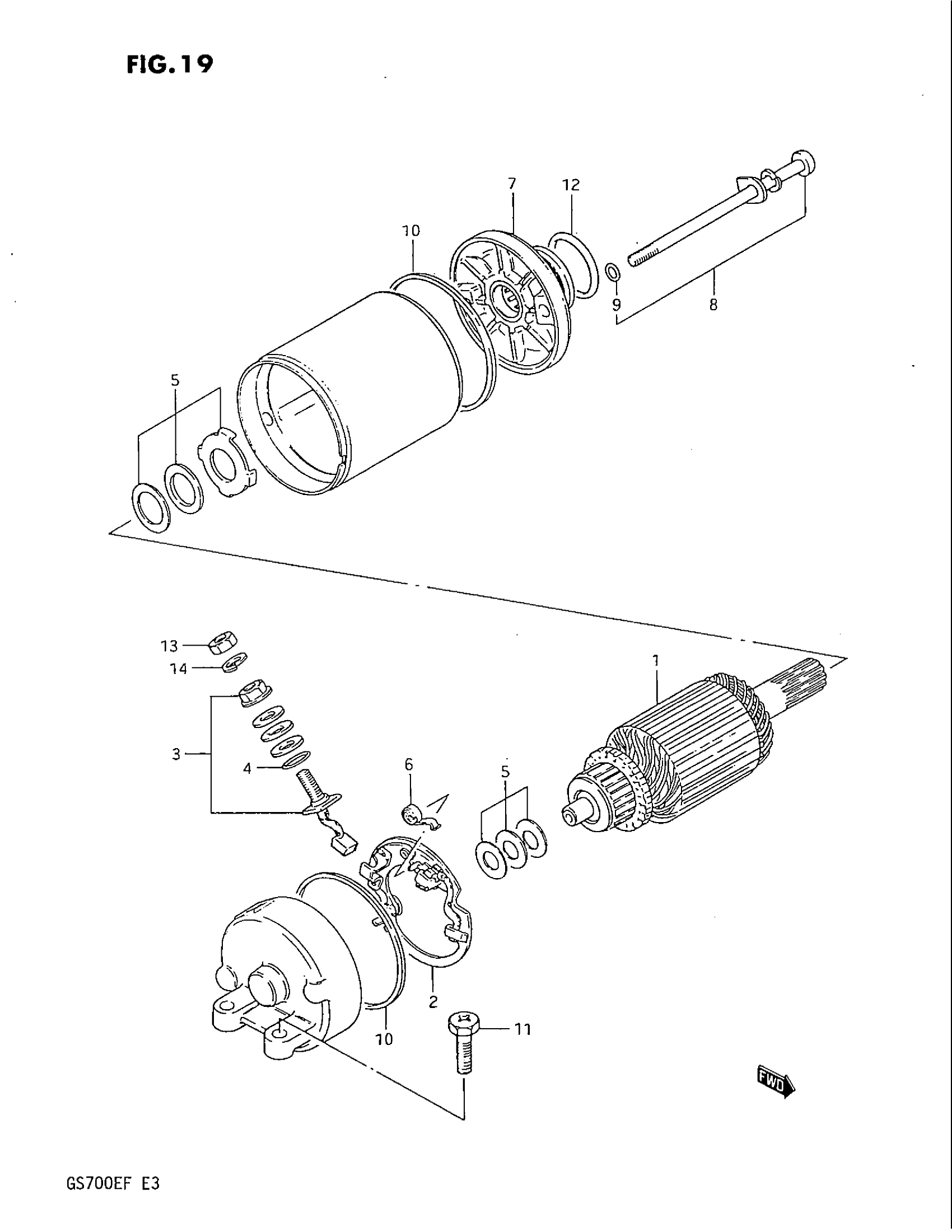

Suzuki GS700E (1985) STARTING MOTOR Diagram

#

Description
Price

MOTOR ASSY, STARTING | Includes Item(s) 1 - 10

31100-31300

Unavailable

1

ARMATURE

31311-31300

Unavailable

2

HOLDER SET, BRUSH (-)

31132-31300

Unavailable

3

TERMINAL SET, BRUSH (+)

31130-31300

Unavailable

4

O RING

31143-49040

$3.71

5

SHIM SET

31170-31300

Unavailable

6

SPRING, BRUSH

31135-31300

$4.96

7

BRACKET SET

31150-31300

Unavailable

8

BOLT SET

31280-31300

Unavailable

9

O RING

31143-49040

$3.71

10

O RING This part replaces 31264-31300.

31264-32E00

$6.68

11

BOLT, STARTING MOTOR This part replaces 09128-06024.

09103-06212

$2.47

12

.O-RING (D:3,ID:24.5)

09280-24003

$1.55

13

NUT This part replaces 08310-11066.

08310-0006A

$1.84

14

LOCK WASHER This part replaces 08321-21066.

08321-0106A

$1.84
