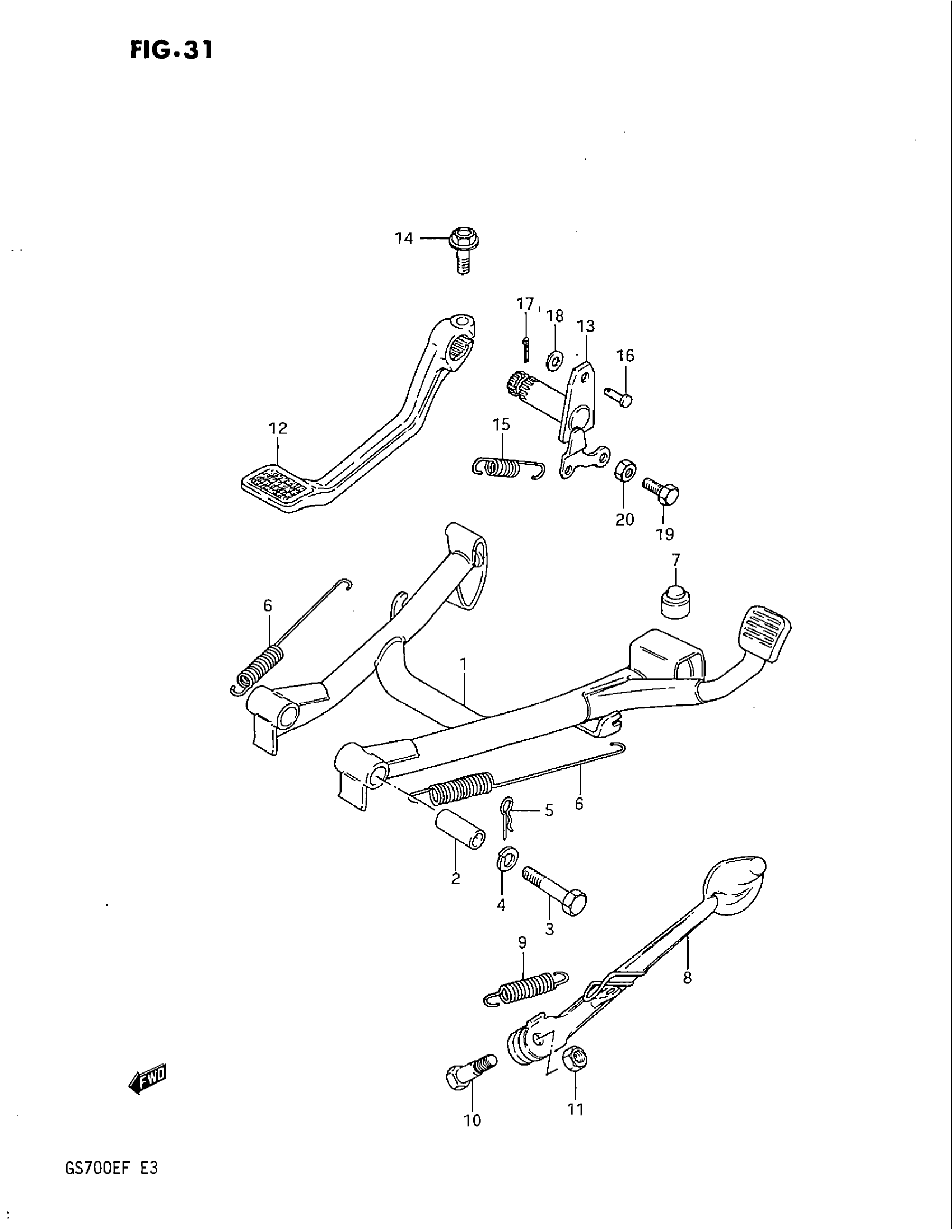

Suzuki GS700E (1985) STAND Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 42100-31302.

42100-08A00

Unavailable

2

SPACER (10.7x15.9x38)

09180-10040

$2.56

3

BOLT This part replaces 09101-10034.

09117-10029

Unavailable

4

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

5

CLIP This part replaces 09385-10001.

09385-10005

$1.56

6

SPRING This part replaces 09443-17017.

09443-17017-XC0

Unavailable

7

CUSHION

09321-10001

$2.61

8

STAND, PROP

42310-31301

Unavailable

9

SPRING

09443-17018

Unavailable

10

BOLT

09111-10024

Unavailable

11

NUT This part replaces 08310-22106.

08310-0010A

$1.84

12

PEDAL, BRAKE

43111-31300

Unavailable

13

ARM, BRAKE PEDAL ROD

43120-31301

Unavailable

14

BOLT This part replaces 01517-08258.

01550-08257

$2.81

15

SPRING

09443-14013

$2.98

16

PIN

09200-06029

Unavailable

17

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

18

WASHER This part replaces 08322-21068.

08322-01067

$2.13

19

BOLT This part replaces 01107-06258.

01500-06257

$1.97

20

.NUT This part replaces 08310-11068.

08310-00067

$2.13
