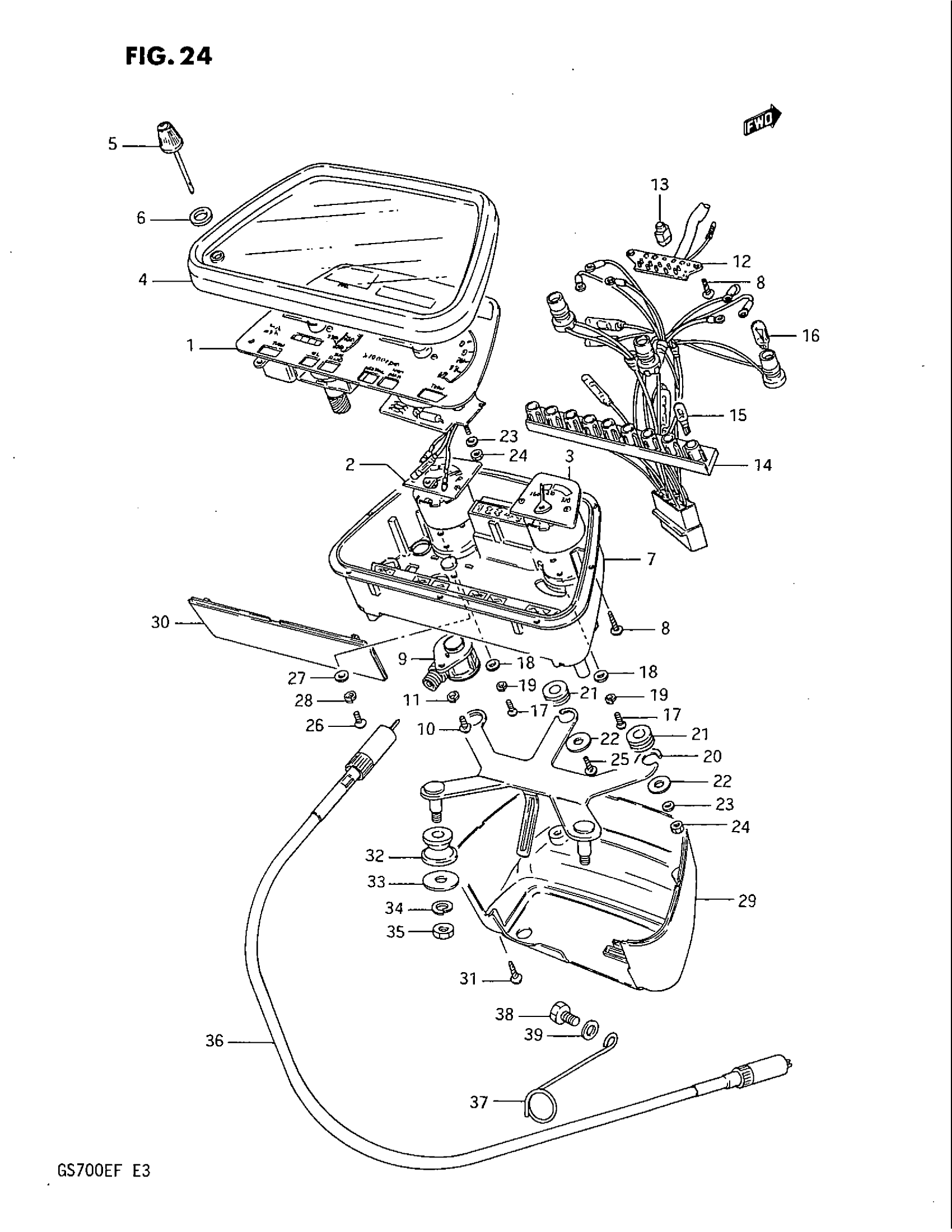

Suzuki GS700E (1985) SPEEDOMETER - TACHOMETER Diagram

#

Description
Price

1

SPEEDO & TACHOMETER (MILE/KIL | 1

34120-31330

Unavailable

2

FUELMETER

34320-49910

Unavailable

3

OIL TEMPERATUREMETER (ßF)

34730-49920

Unavailable

4

HOOD, METER

34150-49910

Unavailable

5

KNOB, TRIP

34124-49910

Unavailable

6

SEAL, TRIP KNOB

34996-49910

Unavailable

7

CASE, METER

34111-31310

Unavailable

8

SCREW

03141-03106

Unavailable

9

GEAR BOX, SPEEDOMETER

34131-49300

Unavailable

10

SCREW This part replaces 02112-04108.

02112-04107

$1.55

11

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

12

SOCKET, GEAR INDICATOR

36453-31310

Unavailable

13

BULB (14V,1.12W)

09471-12071

$7.20

14

SOCKET, METER

34170-31310

Unavailable

15

BULB (12V,3W)

09471-12085

$5.01

16

BULB (12V,3.4W)

09471-12082

Unavailable

17

SCREW This part replaces 02112-03128.

02112-0312B

Unavailable

18

WASHER This part replaces 08322-21038.

08322-01037

$1.93

19

WASHER,LOCK This part replaces 08321-21038.

09162-03001

$1.49

20

BRACKET, METER

34950-31310

Unavailable

21

CUSHION

34955-28010

$3.84

22

WASHER (4.5X16X1.2) This part replaces 34181-49300.

09160-04026

$2.05

23

WASHER

08321-31046

Unavailable

24

NUT This part replaces 08310-22048.

08310-00047

$2.23

25

SCREW This part replaces 03142-04169.

03141-0416A

$2.27

26

SCREW This part replaces 02112-03108.

02112-03107

$1.49

27

WASHER This part replaces 08322-21038.

08322-01037

$1.93

28

WASHER,LOCK This part replaces 08321-21038.

09162-03001

$1.49

29

COVER, LOWER

34193-49910

Unavailable

30

PLATE, METER CASE COVER

34197-49910

Unavailable

31

SCREW This part replaces 03141-04165.

03141-0416A

$2.27

32

CUSHION

34956-31001

$4.37

33

WASHER, EXHAUST SUPPORT This part replaces 09160-08057.

09160-08135

$2.35

34

LOCK WASHER This part replaces 08321-21084.

08321-0108A

$1.84

35

NUT This part replaces 08310-11085.

08310-0008A

$1.84

36

CABLE ASSY,SPEE This part replaces 34910-33400.

34910-33401

Unavailable

37

GUIDE, METER CABLE

34938-45100

$6.57

38

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

39

WASHER This part replaces 08322-21068.

08322-01067

$2.13
