1985 Suzuki GS700E Seat Tail Cover Diagram

← All diagrams

Find the part on the Seat Tail Cover diagram for your 1985 Suzuki GS700E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

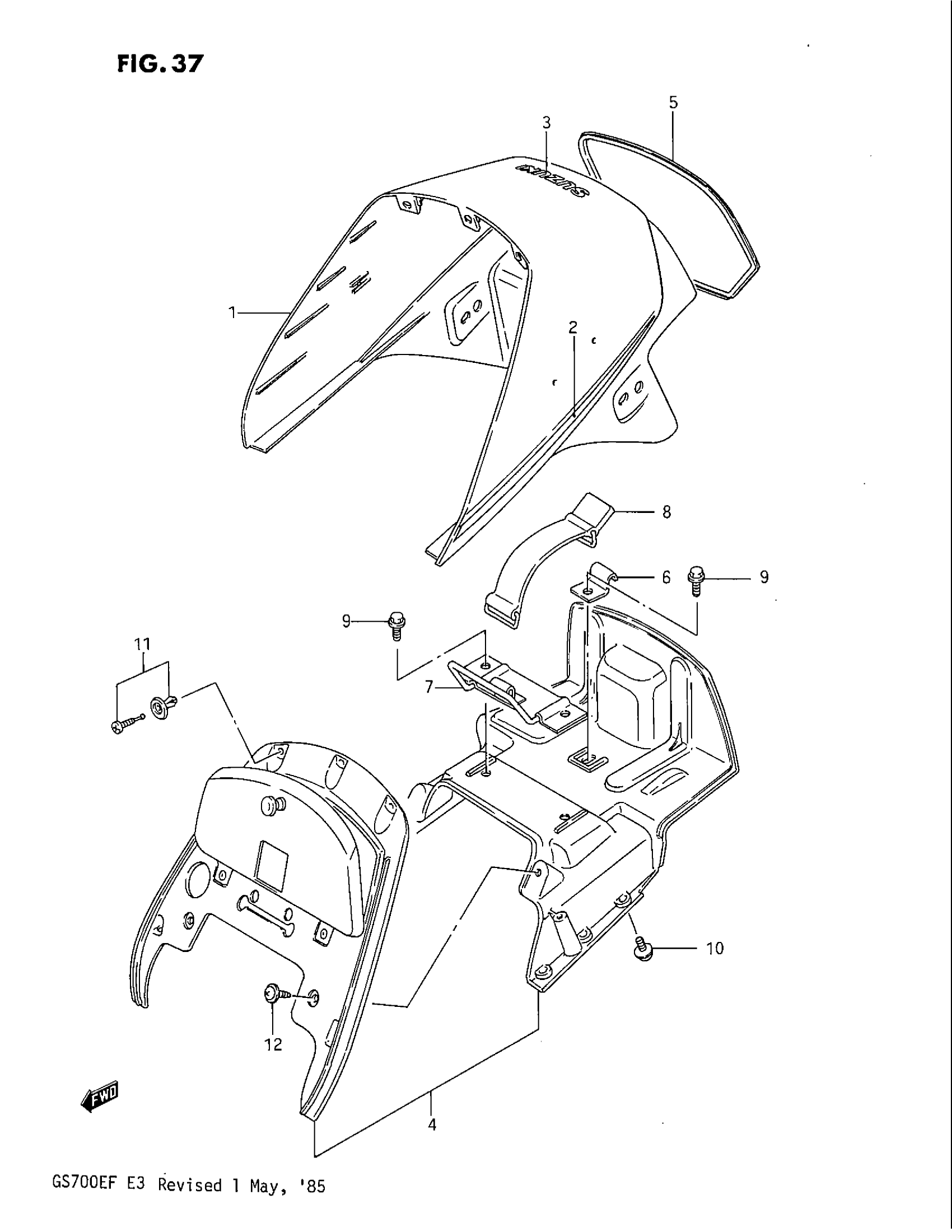

1985 Suzuki GS700E Seat Tail Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE This part replaces 45510-06A00-22R.

45511-06A00

1
Out of stock

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 3 This part replaces 45510-06A00-06X.

45511-06A00

1
Out of stock

2

TAPE SET, TAIL COVER (BLACK)

68160-06A00-019

1
Out of stock

3

NO DESCRIPTION AVAILABLE | FOR 22R This part replaces 68166-31300-019.

68166-31300-33J

1
Out of stock

3

EMBLEM,"SUZUKI" | FOR 06X This part replaces 68166-31300-07G.

68166-31310-719

1
Out of stock

4

FLAP SET, SEAT TAIL COVER | OTHER THAN CALIFORNIA

45515-31301

1
Out of stock

4

(CA) FLAP SET, SEAT TAIL COVE | CALIFORNIA ONLY

45515-06A00

1
Out of stock

5

NO DESCRIPTION AVAILABLE This part replaces 45562-06A00.

45562-06A01

1
Out of stock

6

PLATE, CHAIN LOCK

45225-31300

1
Out of stock

7

PLATE, SEAT HOOK REAR | Includes Item(s) 8

45220-31300

1
Out of stock

8

BAND

09462-00040

1
Out of stock

9

BOLT This part replaces 01547-06165.

01547-0616B

3
Out of stock

10

SCREW This part replaces 02152-05128.

02142-05127

6
Out of stock

11

CLIP This part replaces 09409-06307.

09409-06322-5PK

3
Out of stock

12

SCREW This part replaces 03151-05125.

03141-0512A

4
Out of stock
