1985 Suzuki GS700E Frame Cover Diagram

← All diagrams

Find the part on the Frame Cover diagram for your 1985 Suzuki GS700E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

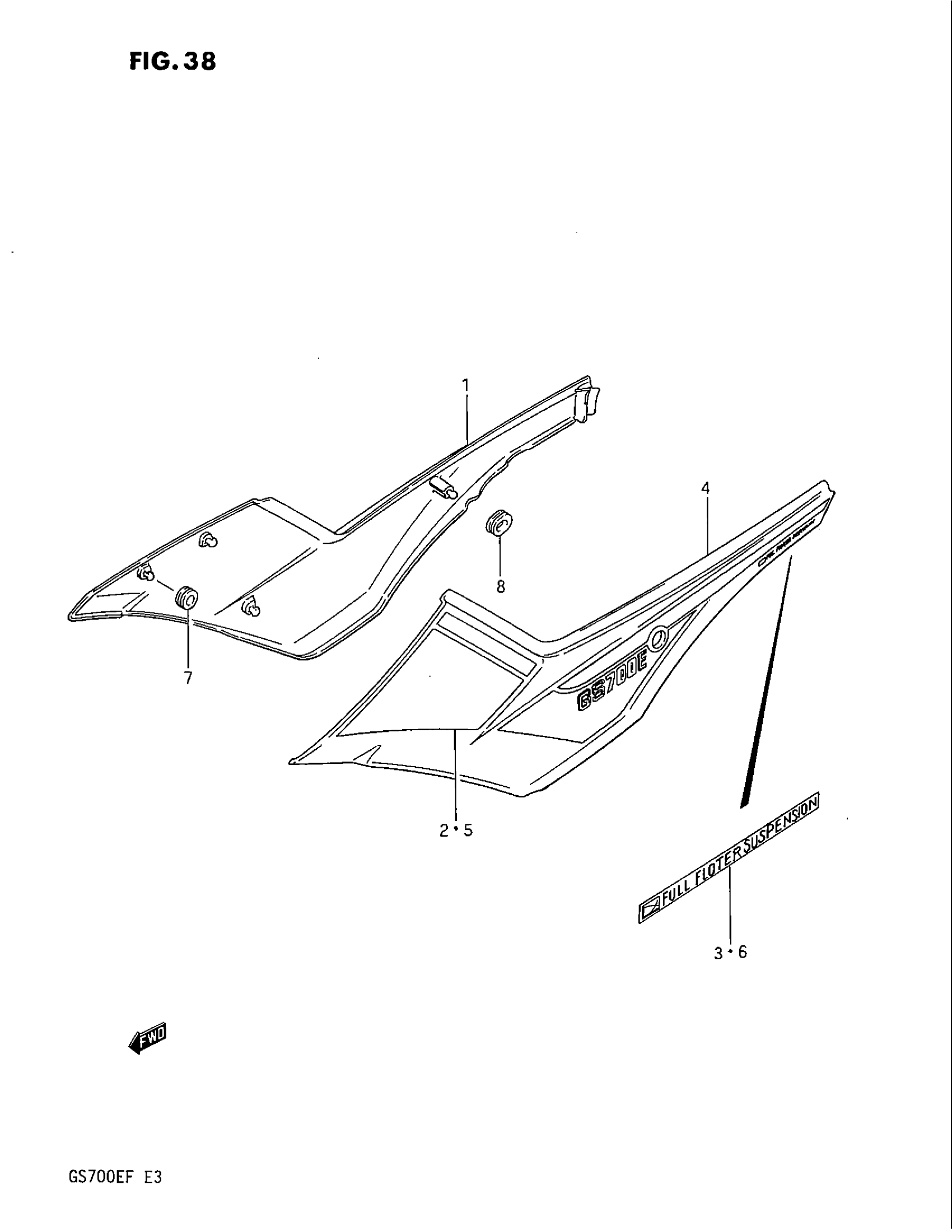

1985 Suzuki GS700E Frame Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE This part replaces 47110-06A10-22R.

47111-06A00

1
Out of stock

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 3 This part replaces 47110-06A10-06X.

47111-06A00

1
Out of stock

2

TAPE SET, FRAME COVER RH | FOR 22R

68130-06A10-7JF

1
Out of stock

2

TAPE SET, FRAME COVER RH | FOR 06X

68130-06A10-7JG

1
Out of stock

3

EMBLEM, FULL FLOATER

68235-04700-87W

1
Out of stock

4

NO DESCRIPTION AVAILABLE This part replaces 47210-06A10-22R.

47211-06A00

1
Out of stock

4

NO DESCRIPTION AVAILABLE | Includes Item(s) 5 - 6 This part replaces 47210-06A10-06X.

47211-06A00

1
Out of stock

5

TAPE SET, FRAME COVER LH | FOR 22R

68140-06A10-7JF

1
Out of stock

5

TAPE SET, FRAME COVER LH | FOR 06X

68140-06A10-7JG

1
Out of stock

6

EMBLEM, FUEL FLOATER

68235-04700-87W

1
Out of stock

7

CUSHION

09320-08018

4
Out of stock

8

CUSHION

09329-08003

4
Out of stock
