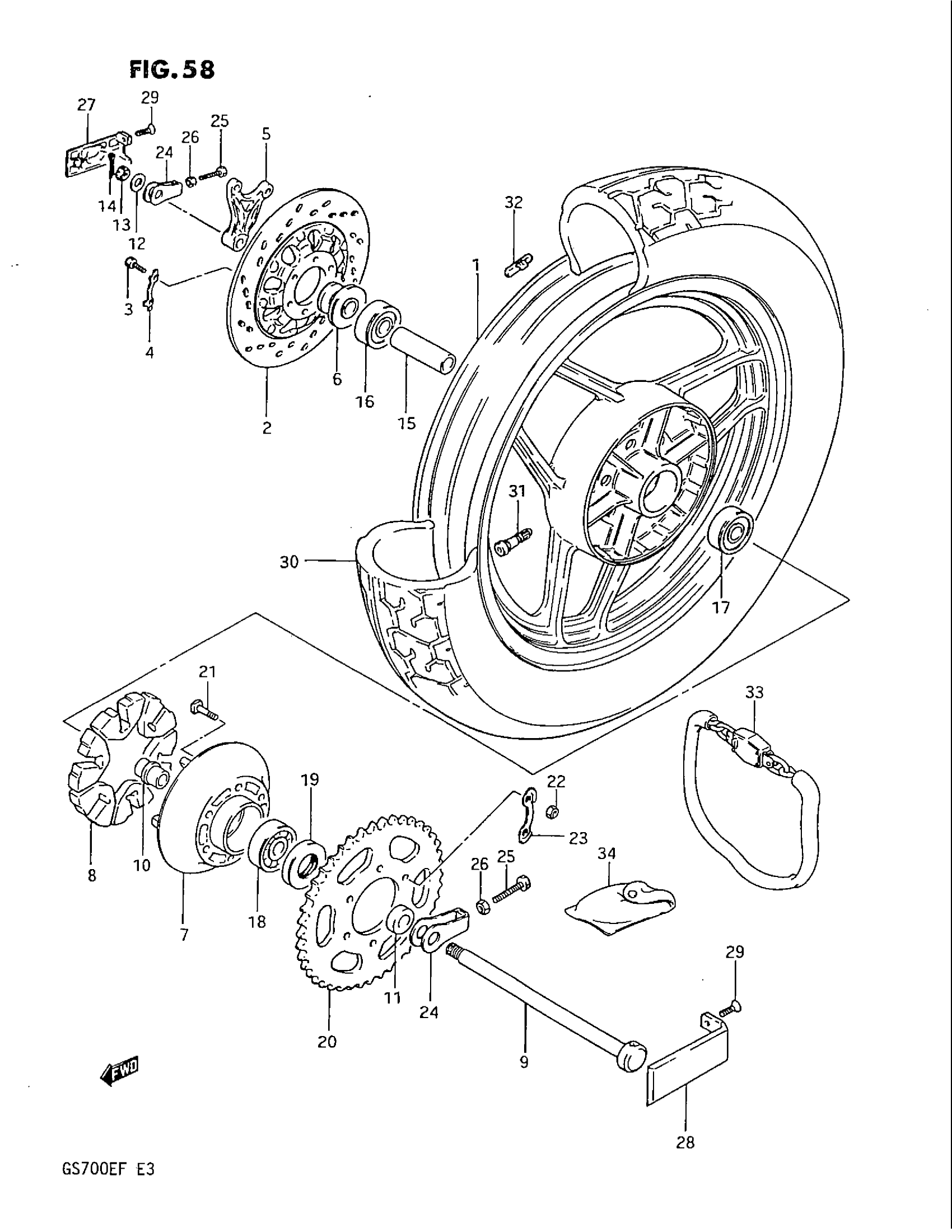

Suzuki GS700E (1985) REAR WHEEL Diagram

#

Description
Price

1

WHEEL, REAR (17XMT2.5) BLACK

64111-31300-291

Unavailable

2

DISK, REAR BRAKE

69210-31300

Unavailable

3

BOLT

09100-08094

$2.71

4

WASHER

09169-08016

$2.41

5

BRACKET, REAR CALIPERS

69721-31300

Unavailable

6

SPACER, RH This part replaces 64740-31300.

64740-38B00

$25.33

7

DRUM, SPROCKET This part replaces 64611-31002.

64611-31003

Unavailable

8

SHOCK ABSORBER, HUB This part replaces 64651-31000.

64651-31001

$11.19

9

AXLE, REAR

64711-31300

Unavailable

10

RETAINER, DRUM

64733-31300

$23.63

11

SPACER, LH

09180-17066

Unavailable

12

WASHER This part replaces 08322-11168.

08322-01167

$2.10

13

NUT, HUB This part replaces 08314-41168.

08314-4016A

$3.79

14

PIN, REAR AXLE This part replaces 04111-40308.

04111-4030A

$1.49

15

SPACER, BEARING

09180-17067

$23.05

16

BEARING, RH

08133-63037

$36.30

17

BEARING, LH

08153-63037

Unavailable

18

BEARING, DRUM This part replaces 08113-63050.

09262-25073

$25.92

19

OIL SEAL

09285-33001

$13.27

20

SPROCKET, REAR (NT:45)

64511-47620

Unavailable

21

BOLT

09105-10001

$2.87

22

NUT This part replaces 09140-10026.

09140-10026-XC0

$1.70

23

WASHER

09169-10007

Unavailable

24

ADJUSTER, CHAIN

61410-31300

Unavailable

25

BOLT (8X50) This part replaces 09104-08018.

09104-08034

$3.04

26

NUT This part replaces 08310-12088.

08310-00087

$2.13

27

COVER, RH

61441-31300

Unavailable

28

COVER, LH

61451-31300

Unavailable

29

SCREW This part replaces 02132-05167.

02122-05167

$2.47

30

TIRE, T/L REAR (120/90-17) | BS

65100-31360

Unavailable

31

VALVE ASSY, WHEEL RIM This part replaces 43130-75150.

43130-78030

$9.25

32

BALANCER (10G) This part replaces 55411-00A00-291.

55411-00A00

$1.49

32

BALANCER, WHEEL NO.2 This part replaces 55412-00A00-291.

55412-17G00

$7.05

32

BALANCER (30G) This part replaces 55413-00A00-291.

55413-00A01

Unavailable

33

NO DESCRIPTION AVAILABLE This part replaces 94140-15501-KEY.

94100-27821

Unavailable

34

BAG, CHAIN LOCK

94141-31301

Unavailable
