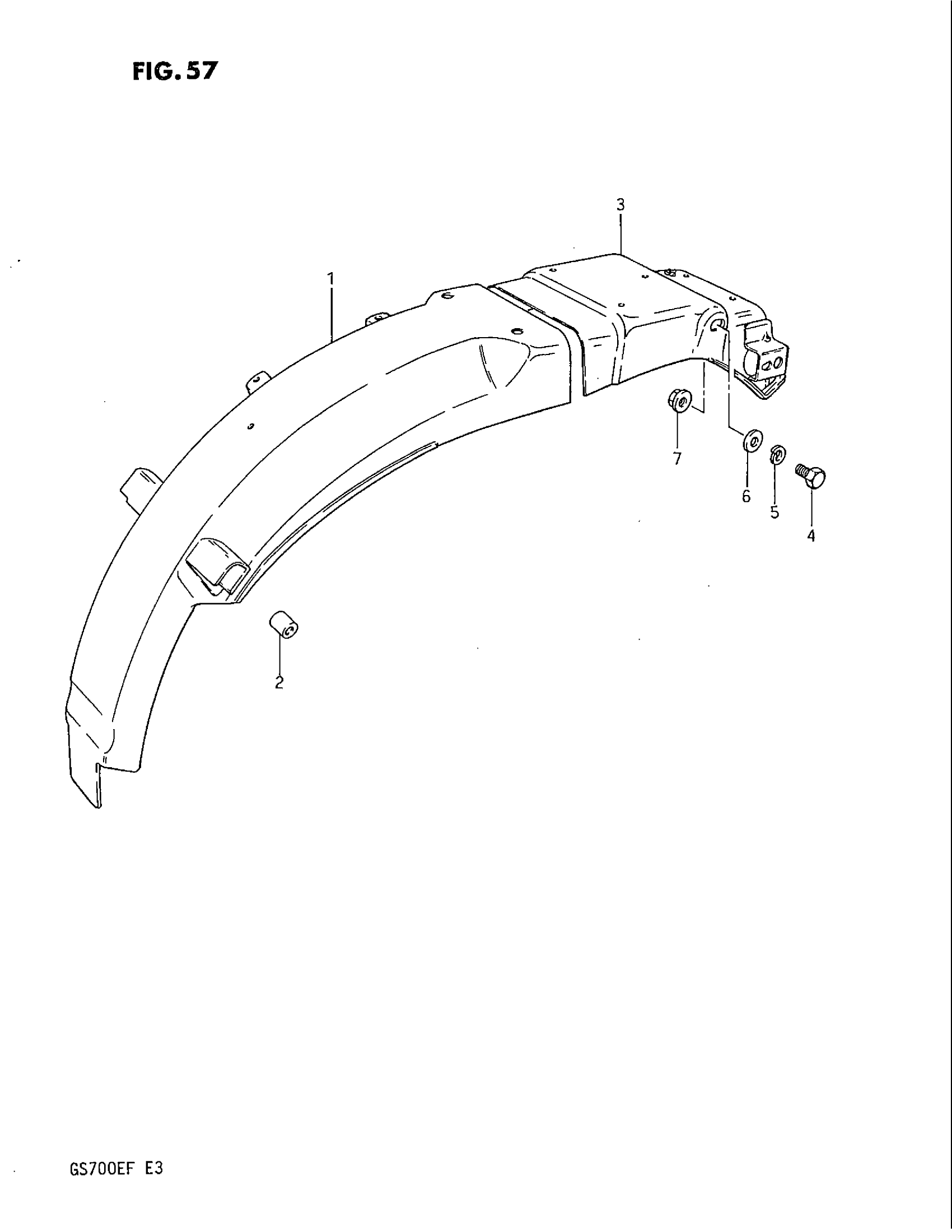

Suzuki GS700E (1985) REAR FENDER Diagram

#

Description

Price

1

BODY, REAR FENDER FRONT

63112-31300

Unavailable

2

CUSHION This part replaces 09329-05003.

09329-05009

$2.37

3

REINFORCEMENT | OTHER THAN CALIFORNIA

63120-31300

Unavailable

3

(CA)REINFORCEMENT | CALIFORNIA ONLY

63120-31320

Unavailable

4

BOLT This part replaces 01107-08206.

01500-0820A

$2.28

5

LOCK WASHER This part replaces 08321-21086.

08321-0108A

$1.84

6

WASHER This part replaces 08322-11086.

08322-0108A

$1.92

7

NUT (CHROME) This part replaces 08316-16086.

08316-10087

$2.26
