1985 Suzuki GS700E Rear Combination Lamp Diagram

← All diagrams

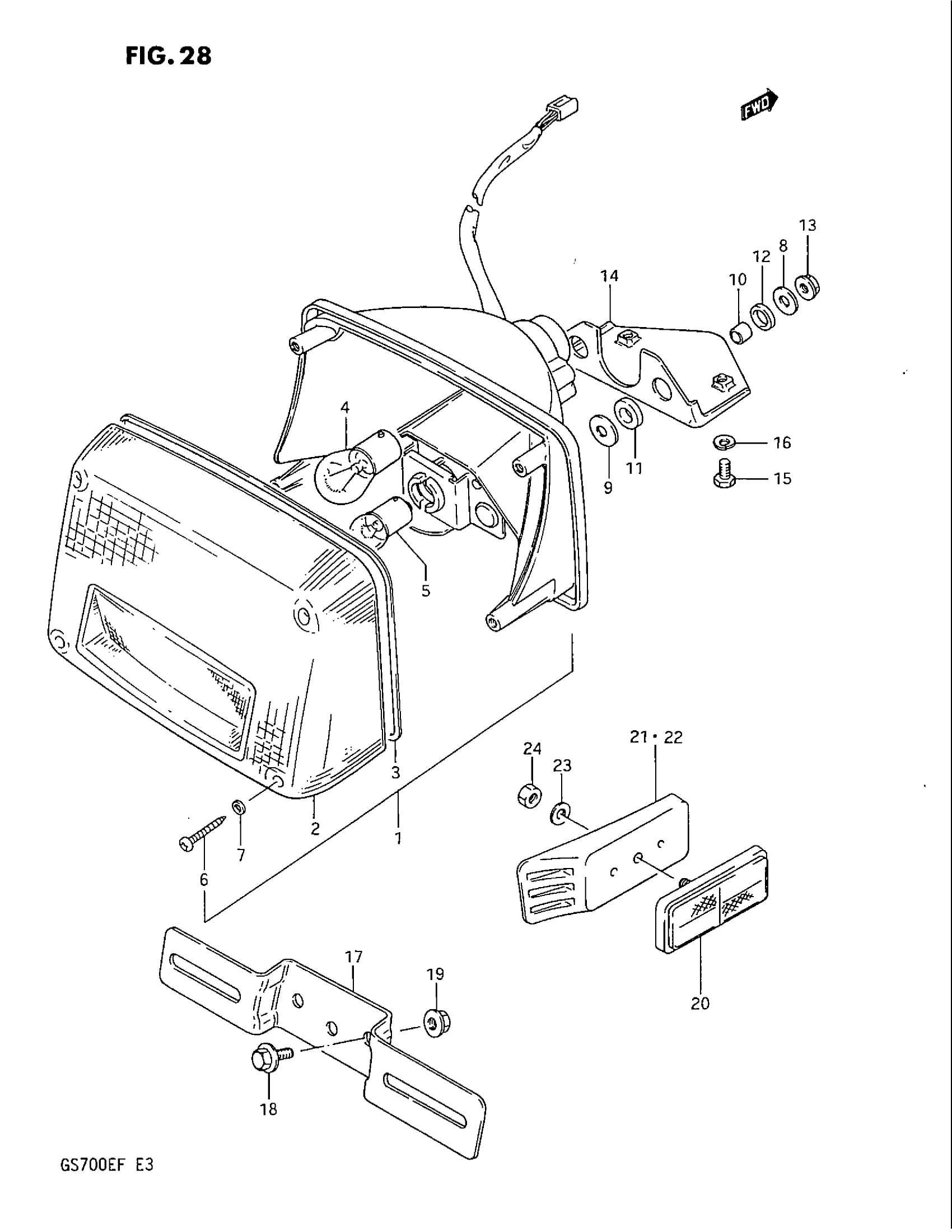

Find the part on the Rear Combination Lamp diagram for your 1985 Suzuki GS700E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1985 Suzuki GS700E Rear Combination Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LAMP ASSY, TAIL | Includes Item(s) 2 - 7 This part replaces 35710-31330.

35710-49330

1
Out of stock

2

LENS

35712-49031

1
Out of stock

3

GASKET

35713-49030

1
Out of stock

4

BULB (12V,32/3CP)

09471-12035

1
Out of stock

5

BULB (12V, BW) This part replaces 09471-12037.

09471-12141

1
Out of stock

6

SCREW This part replaces 35627-49030.

03511-0416A

4
Out of stock

7

GASKET

35627-43010

4

$2.65

In stock

8

WASHER (6.5X18X1.6) This part replaces 09160-06057.

09160-06109

2
Out of stock

9

WASHER This part replaces 09160-06012.

09160-06054

2
Out of stock

10

SPACER

09180-06038

2
Out of stock

11

CUSHION

09320-09003

2
Out of stock

12

CUSHION

09320-09004

2
Out of stock

13

NUT This part replaces 08316-26066.

08316-1006B

2
Out of stock

14

BRACKET, TAIL LAMP

35726-31301

1
Out of stock

15

BOLT This part replaces 01107-06126.

01500-0612A

3
Out of stock

16

3

$1.97

In stock

17

BRACKET, LICENCE PLATE

35927-31330

1
Out of stock

18

BOLT This part replaces 01517-06164.

01550-0616A

2
Out of stock

19

NUT This part replaces 08316-26066.

08316-1006B

2
Out of stock

20

NO DESCRIPTION AVAILABLE This part replaces 35970-43430.

35970-02130

2
Out of stock

21

SPACER, RH

35977-06A30

1
Out of stock

22

SPACER, LH

35978-06A30

1
Out of stock

23

WASHER

09160-05013

2
Out of stock

24

NUT This part replaces 08310-11056.

08310-0005A

2
Out of stock
