1985 Suzuki GS700E Headlamp Diagram

← All diagrams

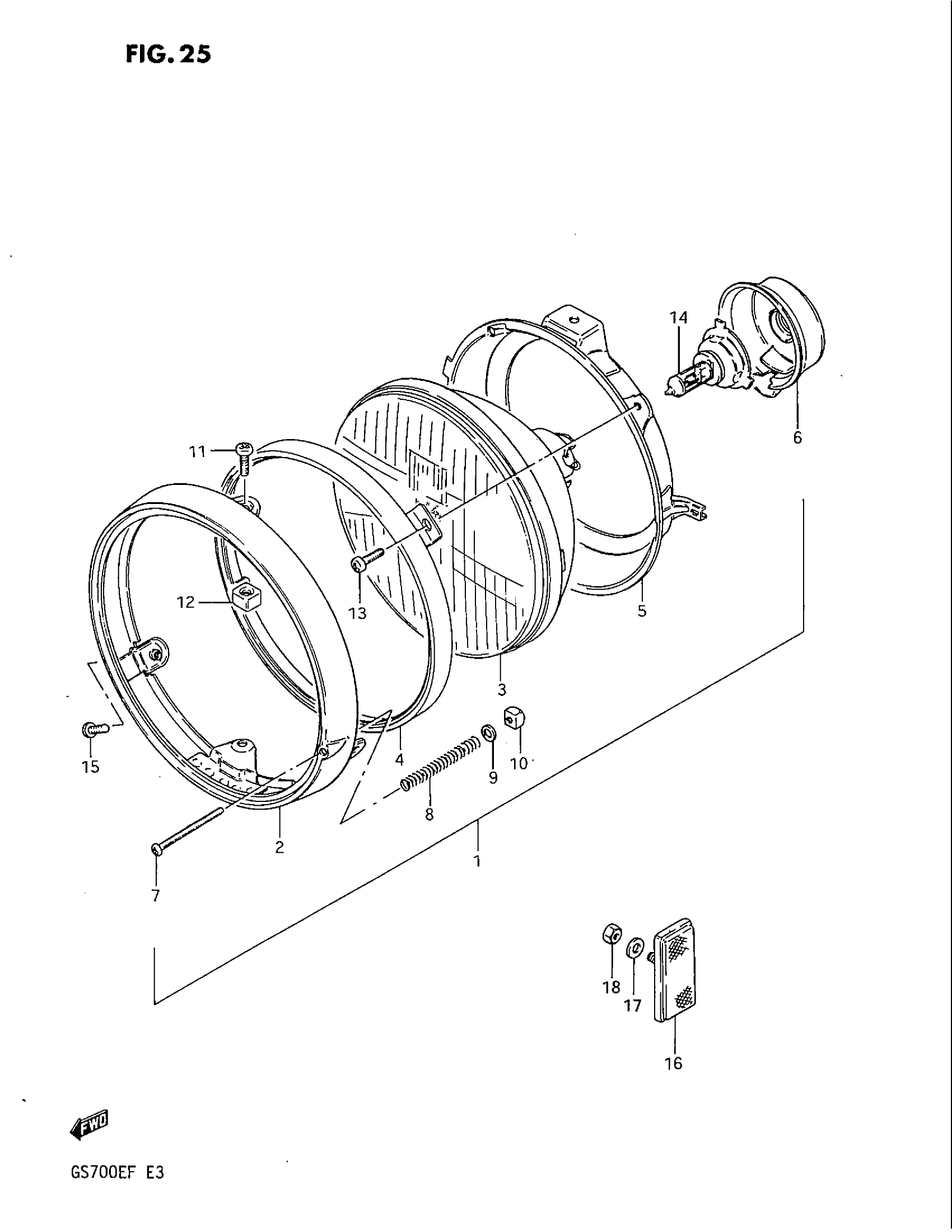

Find the part on the Headlamp diagram for your 1985 Suzuki GS700E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1985 Suzuki GS700E Headlamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEADLAMP ASSY | Includes Item(s) 2 - 14

35100-45930-999

1
Out of stock

2

RIM

35111-45900

1
Out of stock

3

UNIT

35121-45930

1
Out of stock

4

RING

35127-45900

1
Out of stock

5

RING, MOUNTING

35130-45900

1
Out of stock

6

COVER, SOCKET This part replaces 35173-49200.

35173-38A00

1
Out of stock

7

SCREW

35151-45900

1
Out of stock

8

SPRING This part replaces 35154-45900.

35154-49200

1
Out of stock

9

WASHER

35157-27630

1
Out of stock

10

NUT

35135-45600

1
Out of stock

11

SCREW This part replaces 02112-05128.

02112-05127

2
Out of stock

12

NUT

35135-45900

2

$3.67

In stock

13

2

$1.20

In stock

14

BULB (12V,60/55W,H4)

09471-12060

1
Out of stock

15

SCREW

09127-05013

2
Out of stock

16

REFLEX REFLECTOR, FRONT SIDE

35950-43431

2
Out of stock

17

2

$1.97

In stock

18

NUT This part replaces 08310-12055.

08310-0005A

2
Out of stock
