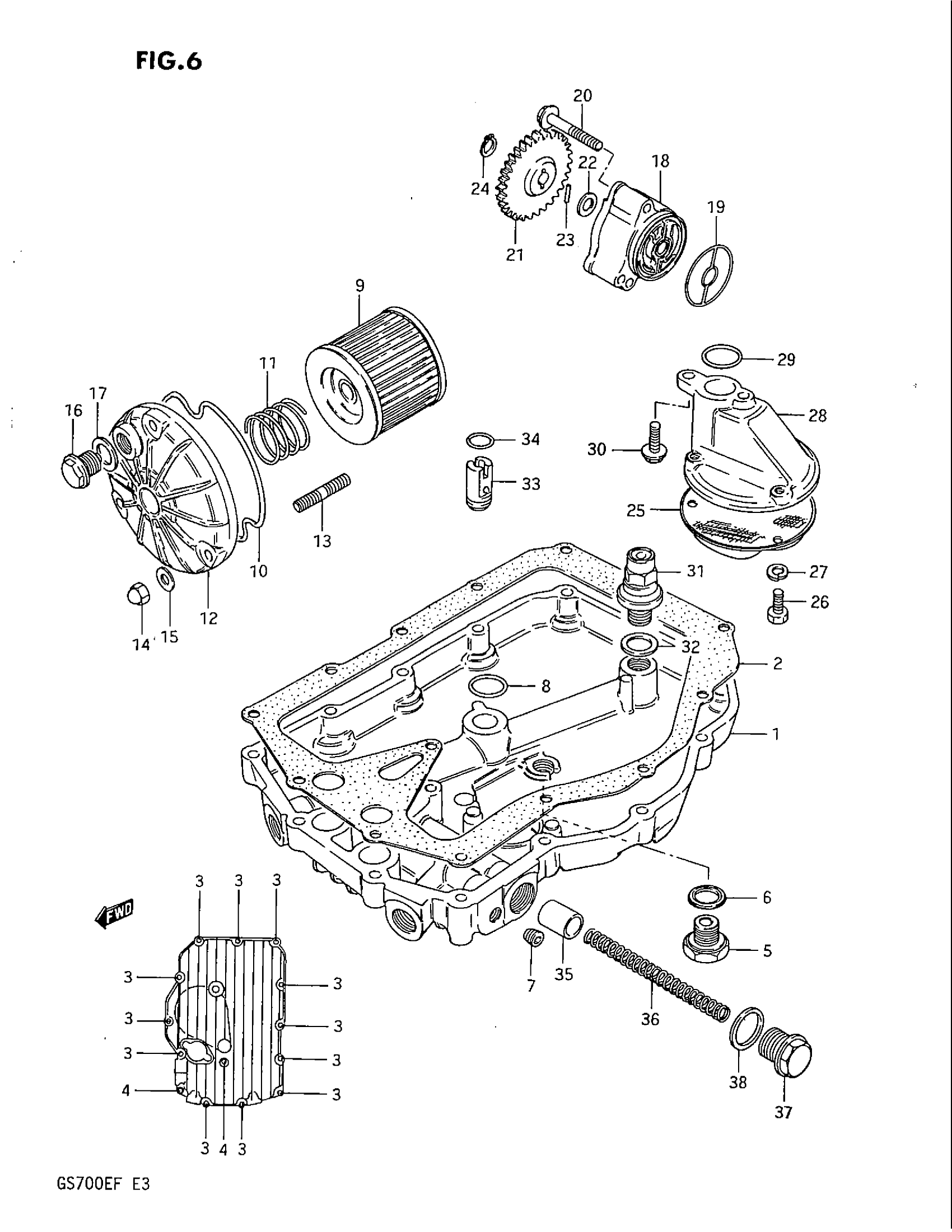

Suzuki GS700E (1985) OIL PUMP - OIL FILTER Diagram

PAN, OIL

11511-31300

Unavailable

GASKET,OIL PAN( This part replaces 11489-31301.

11489-31301-H17

Unavailable

BOLT This part replaces 01517-06305.

01550-0630A

$2.32

BOLT This part replaces 01517-06404.

01550-0640A

$2.42

PLUG (MAGNETO) This part replaces 09247-14001.

09247-14002

$5.24

GASKET

09168-14004

$1.83

NO DESCRIPTION AVAILABLE This part replaces 09246-05001.

09246-04001

Unavailable

O RING (D:3.2,ID:15.8)

09280-16008

$2.02

FILTER, ENGINE OIL

16510-45040

$5.96

O RING

16518-45000

$5.70

SPRING

09440-32004

$2.92

NO DESCRIPTION AVAILABLE This part replaces 16512-33301.

16512-33311

Unavailable

STUD BOLT This part replaces 01421-06208.

01421-0620A

$1.91

NUT This part replaces 08313-11065.

08313-1006A

$1.84

.WASHER This part replaces 08322-21064.

08322-0106B

$2.26

PLUG

09247-14015

$4.45

GASKET

09168-14004

$1.83

PUMP, ENGINE OIL

16400-31310

Unavailable

O RING This part replaces 16491-31310.

16491-31300

$13.90

BOLT This part replaces 01517-06408.

01550-06407

$2.69

GEAR, DRIVEN

16331-31300

Unavailable

WASHER

08221-10185

$2.15

PIN

09261-04009

$1.56

CIRCLIP

08331-31109

$1.78

STRAINER, OIL This part replaces 16520-09300.

16520-09301

$15.42

BOLT This part replaces 01107-06128.

01500-06127

$1.97

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

PROTECTOR, STRAINER

16525-31300

Unavailable

O RING (D:3.2,ID:17.8) This part replaces 09280-18008.

09280-18009

$5.83

BOLT This part replaces 01517-06208.

01550-06207

$2.30

REGULATOR, ENGINE OIL

16440-44500

Unavailable

WASHER

08212-14181

Unavailable

VALVE ASSY, PISTON OIL CONTRO

16430-31300

Unavailable

O RING

09280-10009

$2.30

PLUNGER

16442-34301

Unavailable

SPRING

09440-10011

Unavailable

PLUG

09247-16004

Unavailable

GASKET

09280-17002

$5.11
