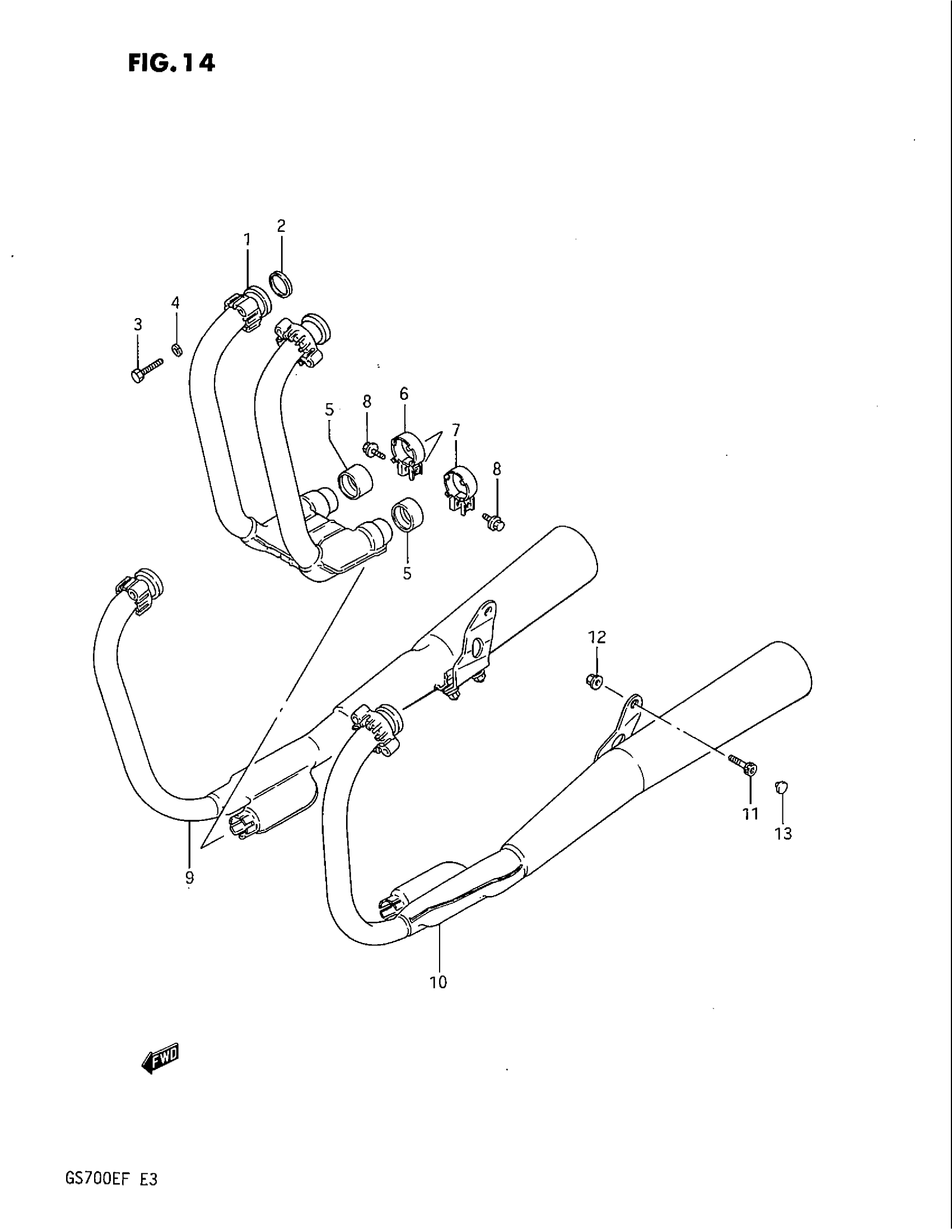

Suzuki GS700E (1985) MUFFLER Diagram

#

Description
Price

1

PIPE, EXHAUST CENTER

14100-06A00-H01

Unavailable

2

.GASKET,EXHAUST This part replaces 14181-05020.

14181-18C00

$7.22

3

BOLT This part replaces 01107-08408.

01500-0840A

$2.60

4

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

5

CONNECTOR,MUFF( This part replaces 14771-00A01.

14771-00A01-H17

Unavailable

6

CLAMP, CONNECTOR RH

14459-31310

Unavailable

7

CLAMP, MUFFLER CONNECTOR LH This part replaces 14469-31310.

14469-26D10

Unavailable

8

BOLT This part replaces 01517-08258.

01550-08257

$2.81

9

MUFFLER ASSY, RH

14301-06A02-H01

Unavailable

10

MUFFLER ASSY, LH

14302-06A02-H01

Unavailable

11

BOLT This part replaces 07110-10255.

07130-1025B

$5.27

12

NUT, WHEEL SET This part replaces 08316-16108.

08316-10107

$2.39

13

CAP

43575-34500

$1.72
