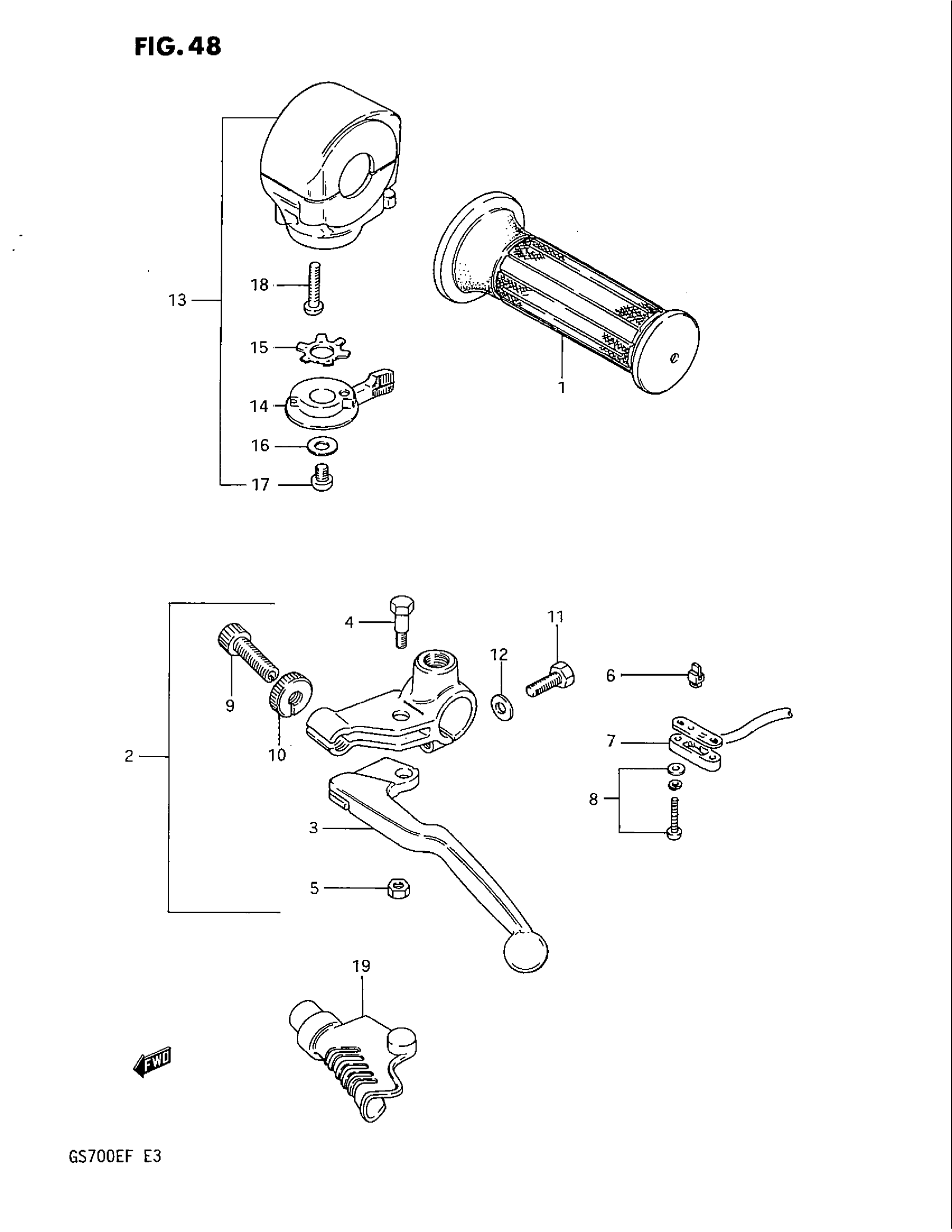

Suzuki GS700E (1985) LEFT HANDLE SWITCH Diagram

#

Description
Price

1

GRIP, LH

57211-49500

$13.95

2

LEVER ASSY, CLUTCH | Includes Item(s) 3 - 12

57500-49131

Unavailable

3

LEVER, CLUTCH

57620-49111

$23.23

4

BOLT, LEVER

57431-49110

$6.31

5

.NUT This part replaces 08319-21068.

08319-2106A

$1.91

6

CONTACT

57465-18601

$4.34

7

COVER

57481-33010

$5.84

8

SCREW

57484-49110

$1.98

9

ADJUSTER, CABLE

57441-44400

$6.28

10

NUT This part replaces 57442-44400.

57442-11010

$2.79

11

BOLT

01204-06204

$2.72

12

.WASHER This part replaces 08322-21064.

08322-0106B

$2.26

13

SWITCH ASSY, HANDLE LH | GS700EF

37400-09311

Unavailable

13

SWITCH ASSY, HANDLE LH | GS700ESF; Includes Item(s) 14 - 18 This part replaces 37400-09321.

37400-33420

Unavailable

14

LEVER, STARTER

37571-45110

Unavailable

15

WASHER

37573-45110

Unavailable

16

.WASHER This part replaces 08322-11068.

08322-0106B

$2.26

17

SCREW This part replaces 02112-06088.

02112-06087

$1.49

18

SCREW This part replaces 02112-05258.

02112-05257

$1.49

19

COVER

57661-49110

Unavailable
