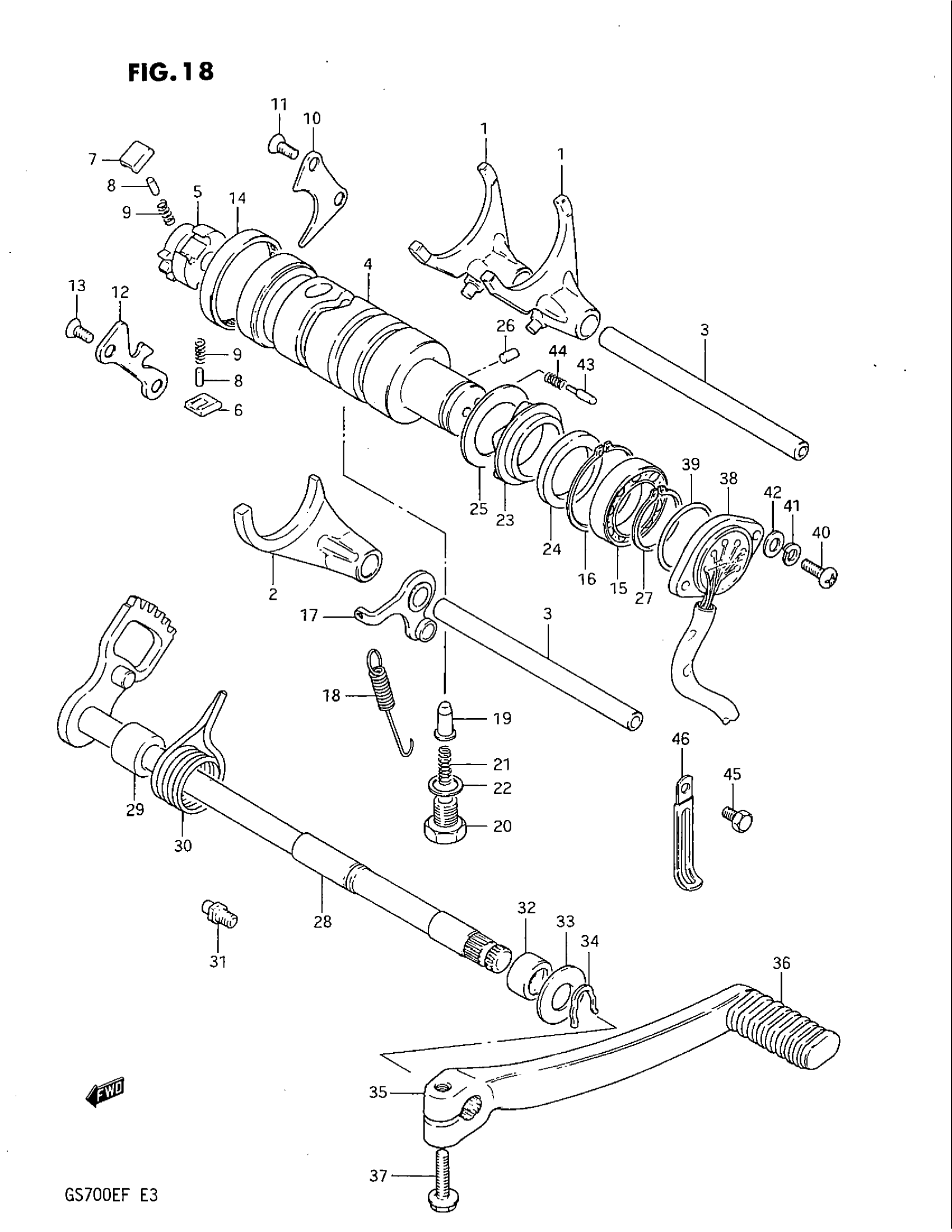

Suzuki GS700E (1985) GEAR SHIFTING Diagram

#

Description
Price

1

FORK, GEAR SHIFTING NO.1

25211-31300

Unavailable

2

FORK, GEAR SHIFTING NO.2

25221-31300

Unavailable

3

SHAFT, GEAR SHIFT FORK NO.1 This part replaces 25411-31301.

25411-18900

$23.07

4

CAM, GEAR SHIFTING

25310-31300

Unavailable

5

GEAR, GEAR SHIFT CAM DRIVEN This part replaces 25322-31301.

25322-31310

$26.93

6

PAWL, GEAR SHIFT NO.1 This part replaces 25323-34200.

25323-34201

$7.22

7

PAWL, GEAR SHIFT NO.2 This part replaces 25324-34200.

25324-34201

$7.22

8

PIN

09261-05003

$1.54

9

SPRING

09440-04003

$1.54

10

LIFTER,GEAR SHI This part replaces 25331-31300.

25331-31310

$8.93

11

SCREW This part replaces 02122-06128.

02122-06127

$1.84

12

GUIDE, CAM

25341-09300

Unavailable

13

SCREW This part replaces 02122-06128.

02122-06127

$1.84

14

BEARING (R)

09263-43001

$33.18

15

BEARING This part replaces 08110-69050.

08113-69050

$35.66

16

CIRCLIP This part replaces 08331-41428.

08331-41429

$2.41

17

STOPPER, CAM

25350-31300

Unavailable

18

SPRING

09443-08026

$2.64

19

STOPPER, GEAR SHIFT CAM NO.2 This part replaces 25351-31302.

25351-30010

$11.95

20

HOLDER, STOPPER

25354-30000

$9.17

21

SPRING

09440-06014

Unavailable

22

GASKET

09168-14004

$1.83

23

PLATE, STOPPER

25381-38400

Unavailable

24

WASHER

08211-25321

$3.27

25

WASHER

09167-30007

$2.53

26

PIN This part replaces 06211-04063.

04221-04069

$2.12

27

CIRCLIP, REAR FINAL DRIVE This part replaces 08331-31258.

08331-31256

$1.49

28

SHAFT, GEAR SHIFTING

25510-31300

Unavailable

29

SPACER

09180-12068

$3.16

30

SPRING

09444-26017

$4.60

31

STOPPER, ARM This part replaces 25671-01000.

25671-01011

$4.48

32

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

$6.32

33

WASHER (12.5X26X1.6) This part replaces 09160-12020.

09160-12089

$1.97

34

CIRCLIP This part replaces 09384-12001.

08331-3112A

$1.78

35

LEVER ASSY, GEAR SHIFTING | Includes Item(s) 36

25600-31300

Unavailable

36

COVER

25652-49300

$5.07

37

BOLT This part replaces 01517-06258.

01550-06257

$2.30

38

BODY, GEAR SHIFTING SWITCH

37720-31301

Unavailable

39

O RING

09280-36001

$3.29

40

SCREW

09125-05102

$1.61

41

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

42

WASHER This part replaces 08322-21058.

08322-01057

$2.13

43

CONTACT

09209-05011

$2.20

44

SPRING

09440-04010

$1.54

45

BOLT This part replaces 01107-06108.

01500-06107

$2.06

46

CLAMP(L:80) This part replaces 09404-06415.

09404-06036

$1.74
