Partiron

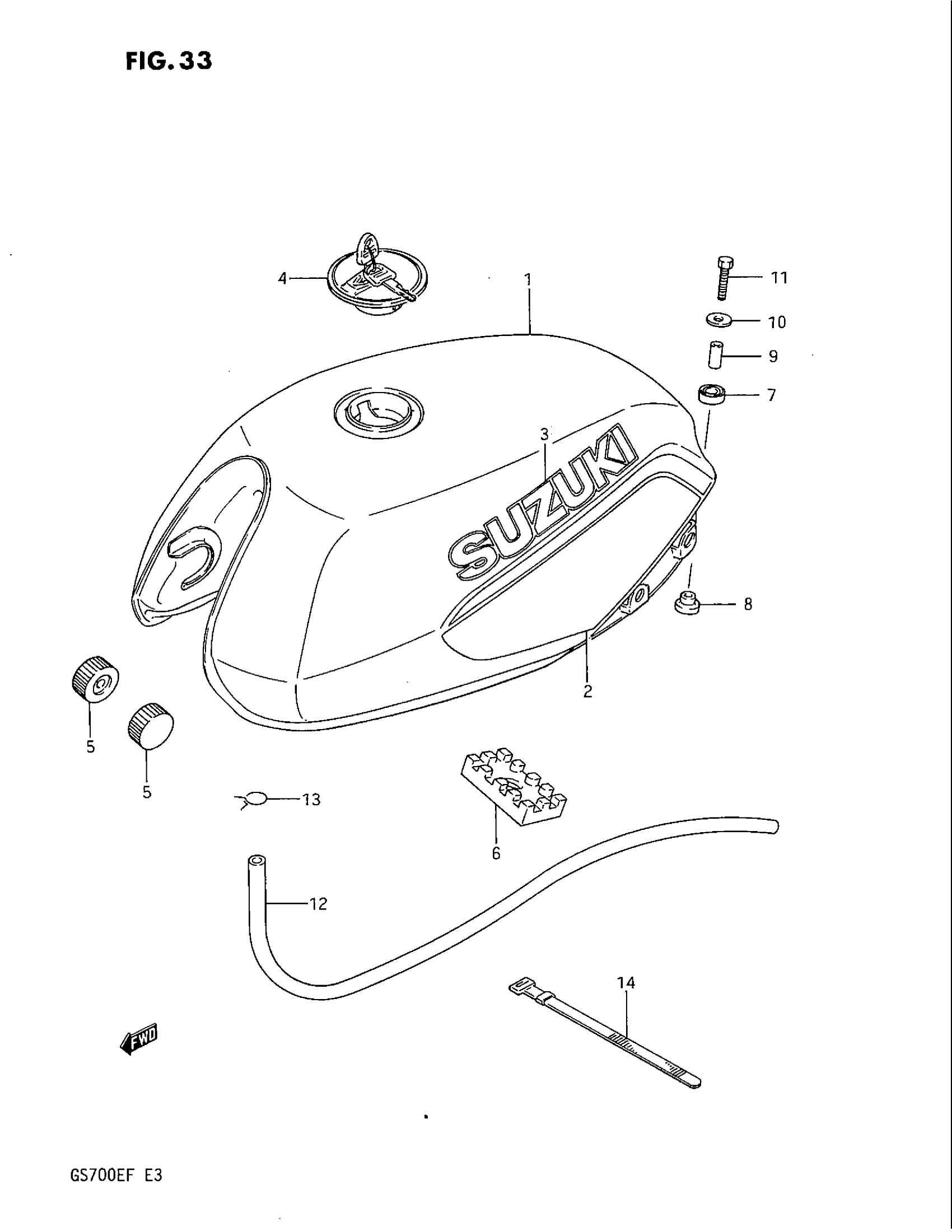

Suzuki GS700E (1985) FUEL TANK Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | OTHER THAN CALIFORNIA This part replaces 44100-06A00-22R.

44110-06A00-13L

Unavailable

1

NO DESCRIPTION AVAILABLE | OTHER THAN CALIFORNIA This part replaces 44100-06A00-06X.

44110-06A00-13L

Unavailable

1

NO DESCRIPTION AVAILABLE | CALIFORNIA ONLY This part replaces 44100-06A10-22R.

44110-06A10-13L

Unavailable

1

NO DESCRIPTION AVAILABLE | CALIFORNIA ONLY; Includes Item(s) 2 - 3 This part replaces 44100-06A10-06X.

44110-06A10-13L

Unavailable

2

TAPE SET, FUEL TANK | FOR 22R

68110-06A00-7JM

Unavailable

2

TAPE SET, FUEL TANK | FOR 06X

68110-06A00-7JK

Unavailable

3

EMBLEM,BLACK | FOR 22R This part replaces 68111-31310-60K.

68111-32B10-019

Unavailable

3

EMBLEM,FUEL TAN | FOR 06X This part replaces 68111-31310-73H.

68111-32B10-07G

$23.62

4

CAP ASSY, FUEL TANK | OTHER THAN CALIFORNIA

44200-43410-KEY

Unavailable

4

CAP, FUEL | CALIFORNIA ONLY This part replaces 44200-06A20-KEY.

44200-14830

Unavailable

5

CUSHION, FRONT

09329-10016

$3.10

6

CUSHION,FUEL TA This part replaces 44541-34500.

44541-34501

$12.87

7

CUSHION, REAR

09320-14013

$2.11

8

CUSHION (9X24X18) This part replaces 09320-10020.

09320-10071

$2.60

9

SPACER This part replaces 09180-06072.

09180-06271

$2.35

10

WASHER, 6.5X24X1.6 This part replaces 09160-06072.

09160-06501

$1.86

11

BOLT This part replaces 01107-06306.

01500-0630A

$2.19

12

HOSE This part replaces 09343-05165.

09352-50005-00B

$13.93

13

CLIP

09401-08402

$1.49

14

CLAMP

09408-00021

Unavailable
