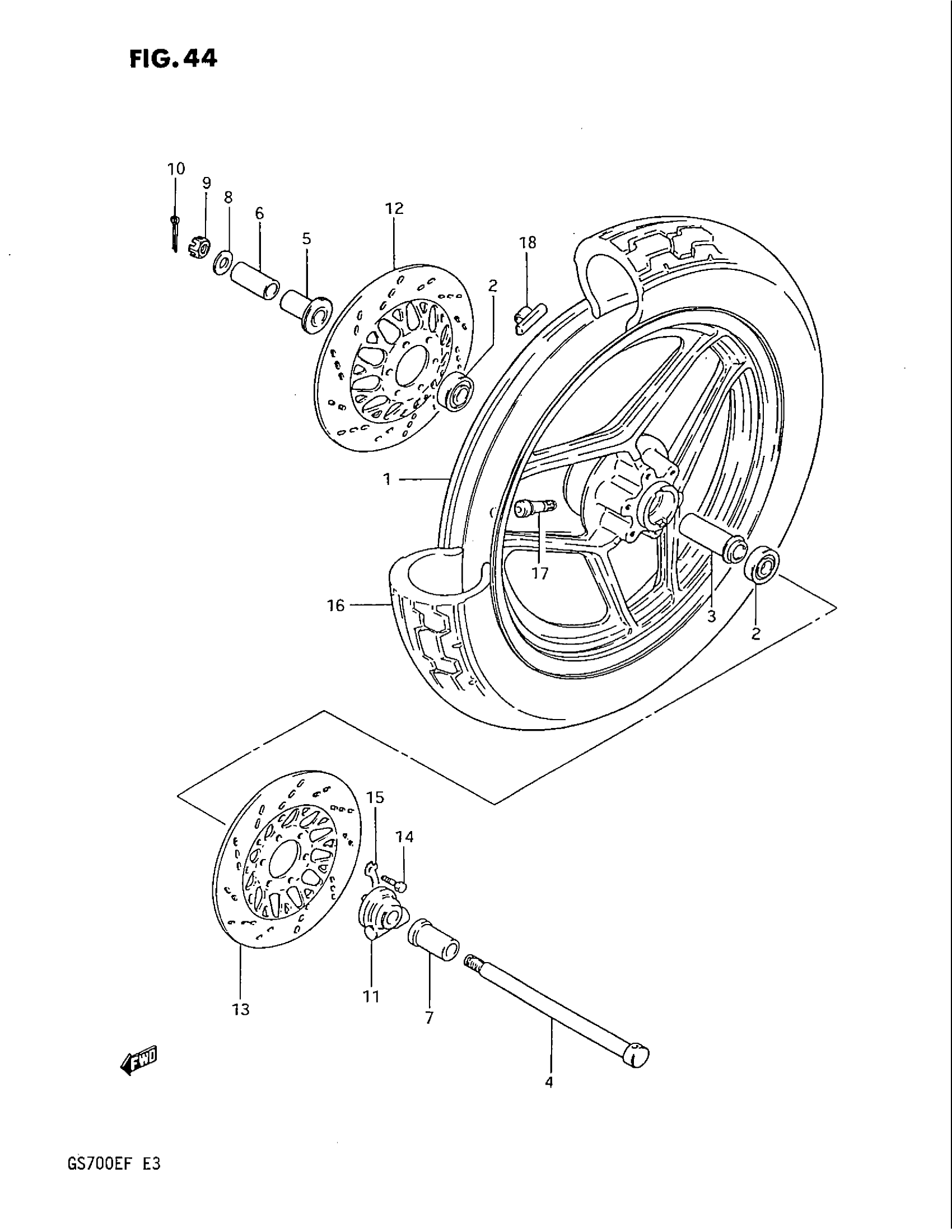

Suzuki GS700E (1985) FRONT WHEEL Diagram

#

Description
Price

1

WHEEL, FRONT (2.15X16) BLACK

54111-09310-291

Unavailable

2

BEARING This part replaces 08123-63027.

08123-6302B

$22.74

3

SPACER

54730-09300

Unavailable

4

AXLE, FRONT

54711-09300

Unavailable

5

SPACER, BEARING RH

54740-18402

Unavailable

6

SPACER, AXLE RH

54741-49300

Unavailable

7

SPACER, AXLE LH

54741-49000

Unavailable

8

WASHER This part replaces 08322-21128.

08322-01127

$1.84

9

NUT This part replaces 08314-31128.

08314-3112A

$2.41

10

PIN This part replaces 04111-30308.

04111-3030A

$1.49

11

BOX, SPEEDOMETER GEAR This part replaces 54600-31301.

54600-00A00

Unavailable

12

DISK, FRONT BRAKE RH

59211-09300

Unavailable

13

DISK, FRONT BRAKE LH

59221-09300

Unavailable

14

BOLT

09100-08140

$2.10

15

WASHER

09169-08016

$2.41

16

TIRE, T/L FRONT (100/90-16) | BS

55100-31360

Unavailable

17

VALVE ASSY, WHEEL RIM This part replaces 43130-75150.

43130-78030

$9.25

18

BALANCER (10G) This part replaces 55411-00A00-291.

55411-00A00

$1.49

18

BALANCER, WHEEL NO.2 This part replaces 55412-00A00-291.

55412-17G00

$7.05

18

BALANCER (30G) This part replaces 55413-00A00-291.

55413-00A01

Unavailable
