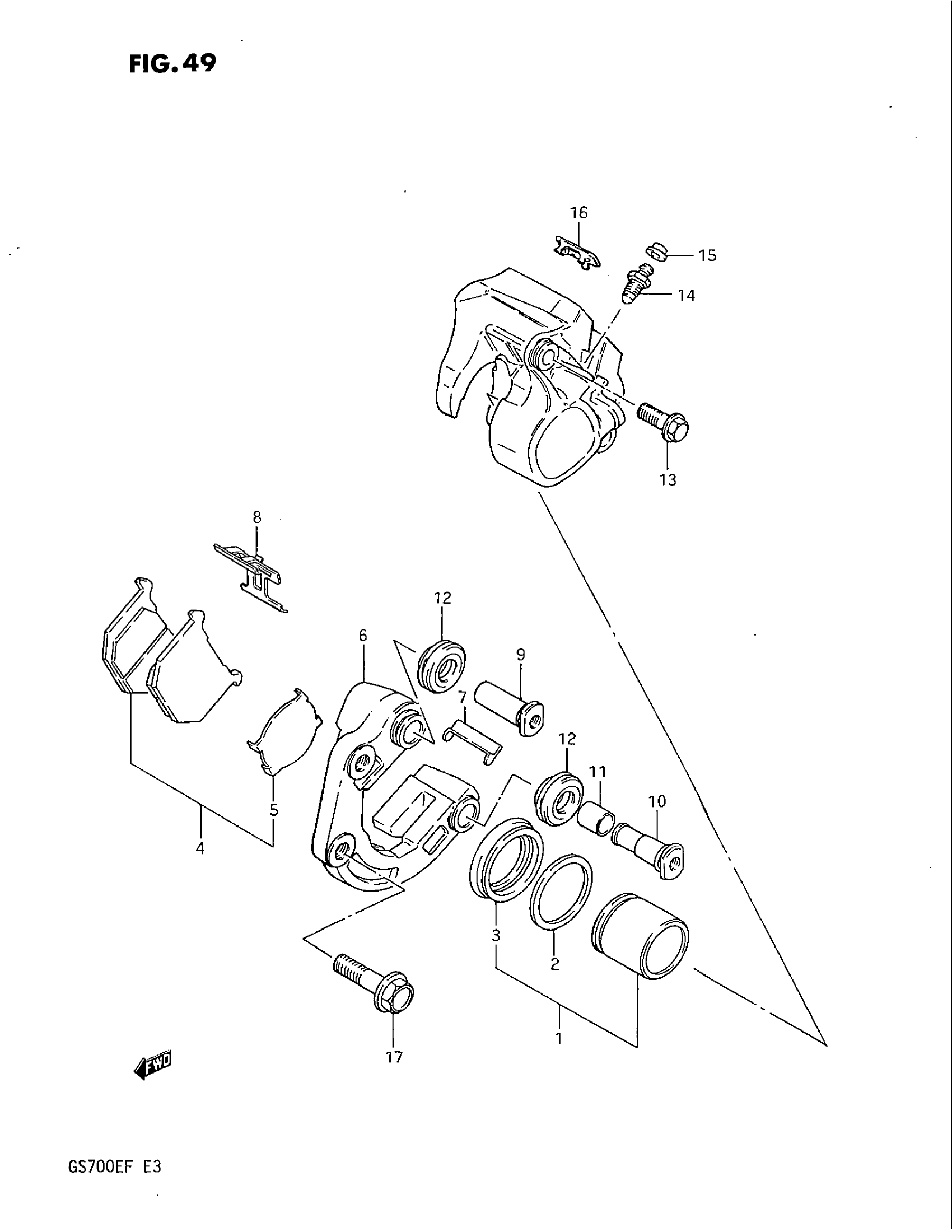

Suzuki GS700E (1985) FRONT CALIPERS Diagram

#

Description
Price

NO DESCRIPTION AVAILABLE This part replaces 59100-45210.

59100-45211

Unavailable

NO DESCRIPTION AVAILABLE | Includes Item(s) 1 - 16 This part replaces 59300-45210.

59300-45211

Unavailable

1

PISTON SET This part replaces 59301-45820.

59301-45822

$39.66

2

SEAL,PISTON This part replaces 59107-18410.

69107-05CF0

$9.07

3

BOOT, PISTON

59308-45200

$7.48

4

PAD SET

59301-45850

Unavailable

5

SHIM, PAD

59371-45200

Unavailable

6

NO DESCRIPTION AVAILABLE This part replaces 59100-45881.

59100-45882

Unavailable

6

HOLDER SET, CALIPERS LH

59301-45841

Unavailable

7

GUIDE, PAD

59316-45201

$5.15

8

SPRING, PAD

59315-45200

$12.32

9

AXLE, CALIPERS NO.1

59305-45200

Unavailable

10

AXLE, CALIPERS NO.2

59306-45200

Unavailable

11

BUSH

59313-45200

$7.95

12

BOOT, AXLE

59312-45200

$8.79

13

BOLT

59314-45201

$5.55

14

BLEEDER

59121-18410

$8.73

15

CAP, BLEEDER This part replaces 59122-18410.

55156-66310

$5.17

16

COVER

59324-45201

Unavailable

17

BOLT This part replaces 01517-10405.

01550-1040A

$3.55
