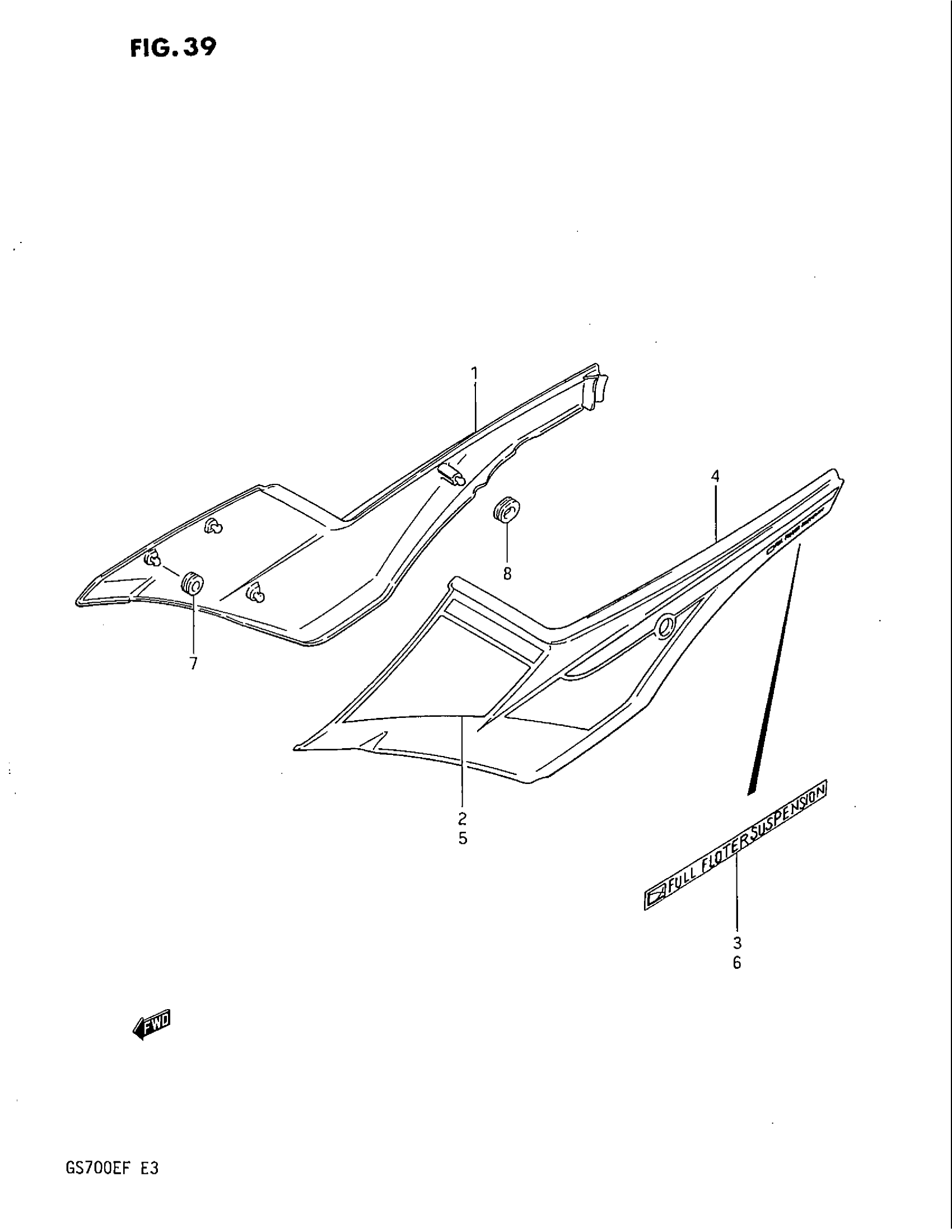

Suzuki GS700E (1985) FRAME COVER (GS700ESF) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 47110-06A00-22R.

47111-06A00

Unavailable

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 3 This part replaces 47110-06A00-06X.

47111-06A00

Unavailable

2

TAPE SET, FRAME COVER RH | FOR 22R

68130-06A00-7JM

Unavailable

2

TAPE SET, FRAME COVER RH | FOR 06X

68130-06A00-7JK

Unavailable

3

EMBLEM, FUEL FLOATER

68235-04700-87W

Unavailable

4

NO DESCRIPTION AVAILABLE This part replaces 47210-06A00-22R.

47211-06A00

Unavailable

4

NO DESCRIPTION AVAILABLE | Includes Item(s) 5 - 6 This part replaces 47210-06A00-06X.

47211-06A00

Unavailable

5

TAPE SET, FRAME COVER LH | FOR 22R

68140-06A00-7JM

Unavailable

5

TAPE SET, FRAME COVER LH | FOR 06X

68140-06A00-7JK

Unavailable

6

EMBLEM, FUEL FLOATER

68235-04700-87W

Unavailable

7

CUSHION

09320-08018

$3.04

8

CUSHION

09329-08003

$3.16
