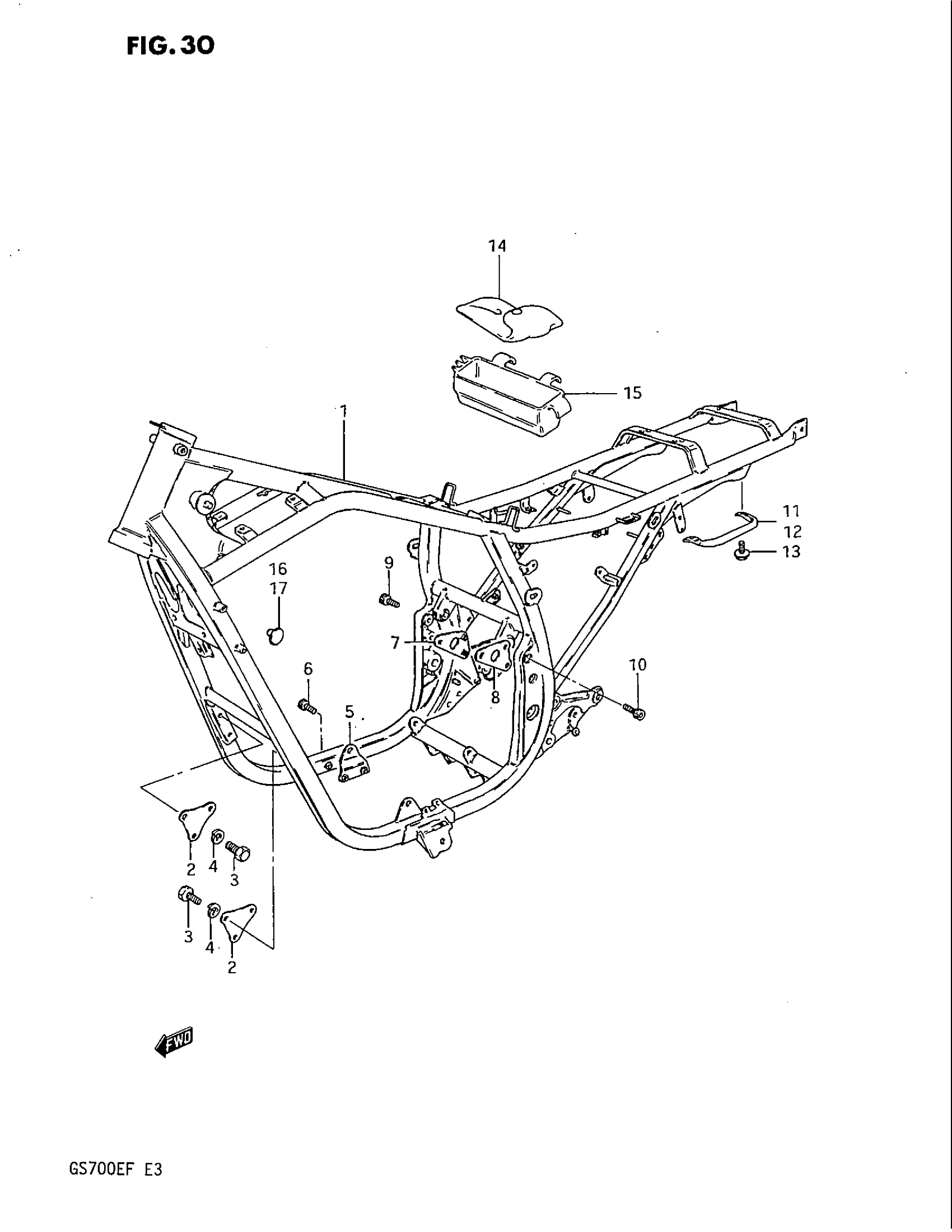

Suzuki GS700E (1985) FRAME Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 41100-31351-291.

41100-31352-291

Unavailable

2

PLATE, NO.1 (BLACK)

41911-31300-291

Unavailable

3

PLUG, DRAIN This part replaces 01107-08165.

01500-0816B

$2.50

4

LOCK WASHER This part replaces 08321-21084.

08321-0108A

$1.84

5

PLATE, NO.2 RH (BLACK)

41930-31300-291

Unavailable

6

BOLT This part replaces 07110-08405.

07130-0840B

$3.91

7

PLATE, NO.4 RH (BLACK)

41970-31300-291

Unavailable

8

PLATE, NO.4 LH (BLACK)

41980-31300-291

Unavailable

9

BOLT This part replaces 07110-08355.

07130-0835B

$4.60

10

BOLT This part replaces 07110-08255.

07130-0825B

$3.37

11

GRIP, FRAME HANDLE RH

41610-31301

Unavailable

12

GRIP, FRAME HANDLE LH

41620-31301

Unavailable

13

BOLT (8X16) This part replaces 01517-08165.

01550-0816A

$2.32

14

TOOL ASSY This part replaces 09800-00257.

09800-21073

$96.88

15

HOLDER, TOOL

47431-31301

Unavailable

16

PLUG

09250-05007

$2.23

17

PLUG

09250-06005

$2.15
