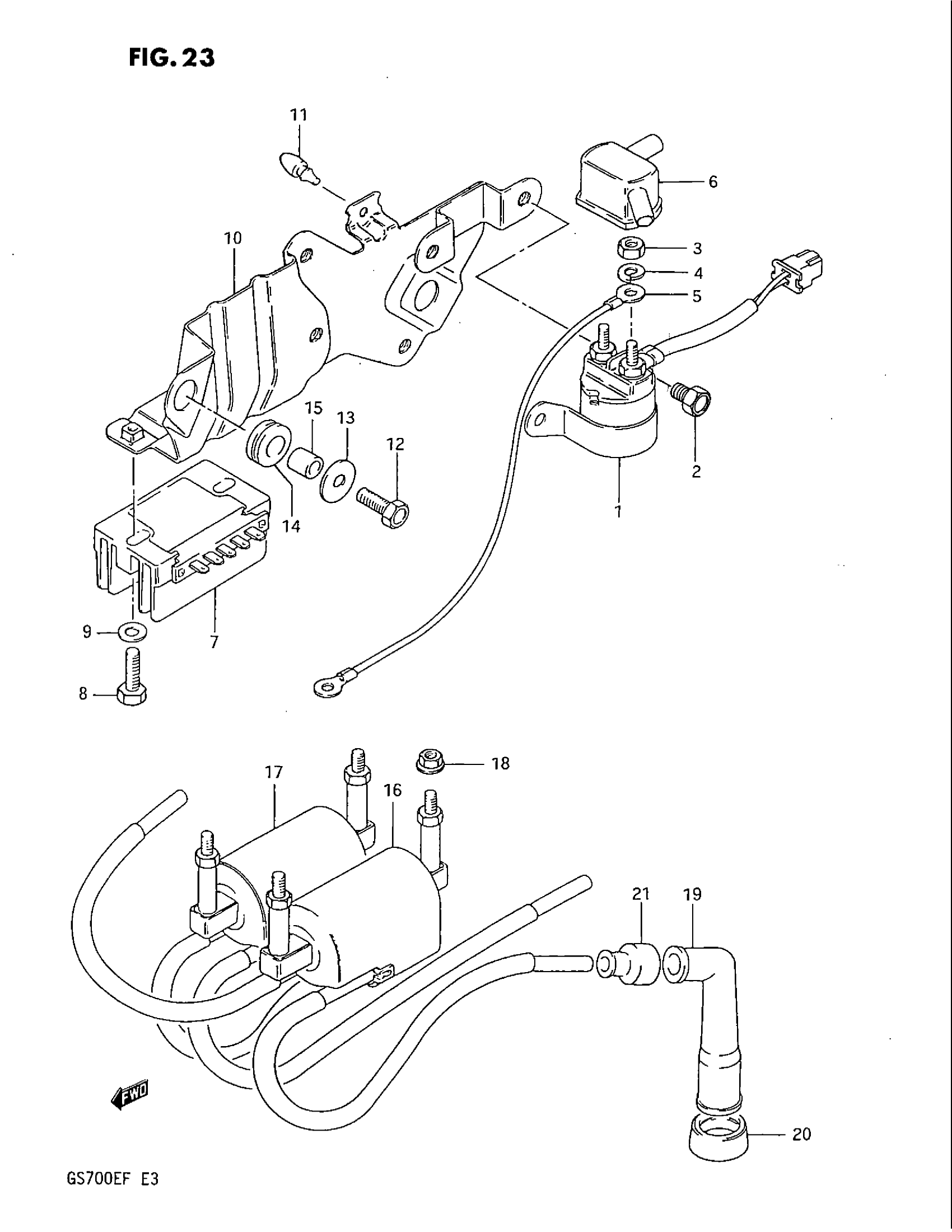

Suzuki GS700E (1985) ELECTRICAL Diagram

#

Description
Price

1

RELAY ASSY, STARTING MOTOR This part replaces 31800-15500.

31800-15501

$97.79

2

SCREW (6X10) This part replaces 09128-06004.

09128-06044

$1.49

3

NUT This part replaces 08310-11066.

08310-0006A

$1.84

4

LOCK WASHER This part replaces 08321-21066.

08321-0106A

$1.84

5

WIRE, STARTING LEAD This part replaces 33850-31310.

33850-00A01

Unavailable

6

CAP, TERMINAL

31861-31300

Unavailable

7

RECTIFIER ASSY This part replaces 32800-09300.

32800-09301

Unavailable

8

BOLT This part replaces 09128-06006.

09128-06057

$1.65

9

WASHER This part replaces 08322-21068.

08322-01067

$2.13

10

PLATE, PARTS HOLDER

47410-31301

Unavailable

11

CUSHION, PARTS HOLDER

09321-06023

$2.50

12

BOLT This part replaces 01107-06166.

01500-0616A

$1.78

13

WASHER (6.5X20X1.2) This part replaces 09160-06027.

09160-06077

$1.91

14

CUSHION (8.5X20X8) This part replaces 09320-08007.

09320-08510

$1.97

15

SPACER

09180-06038

$1.98

16

COIL ASSY, IGNI This part replaces 33410-31310.

33410-31311

$161.13

17

COIL ASSY, IGNI This part replaces 33420-31310.

33410-31311

$161.13

18

NUT This part replaces 08316-16066.

08316-1006B

$2.50

19

CAP, SPARK PLUG

33510-11410

$25.95

20

SEAL, SPARK PLUG This part replaces 33541-24510.

33541-47D00

$7.83

21

SEAL,HIGH TENSION CORD (SIDE) This part replaces 33542-98000.

33542-38B00

$4.34
