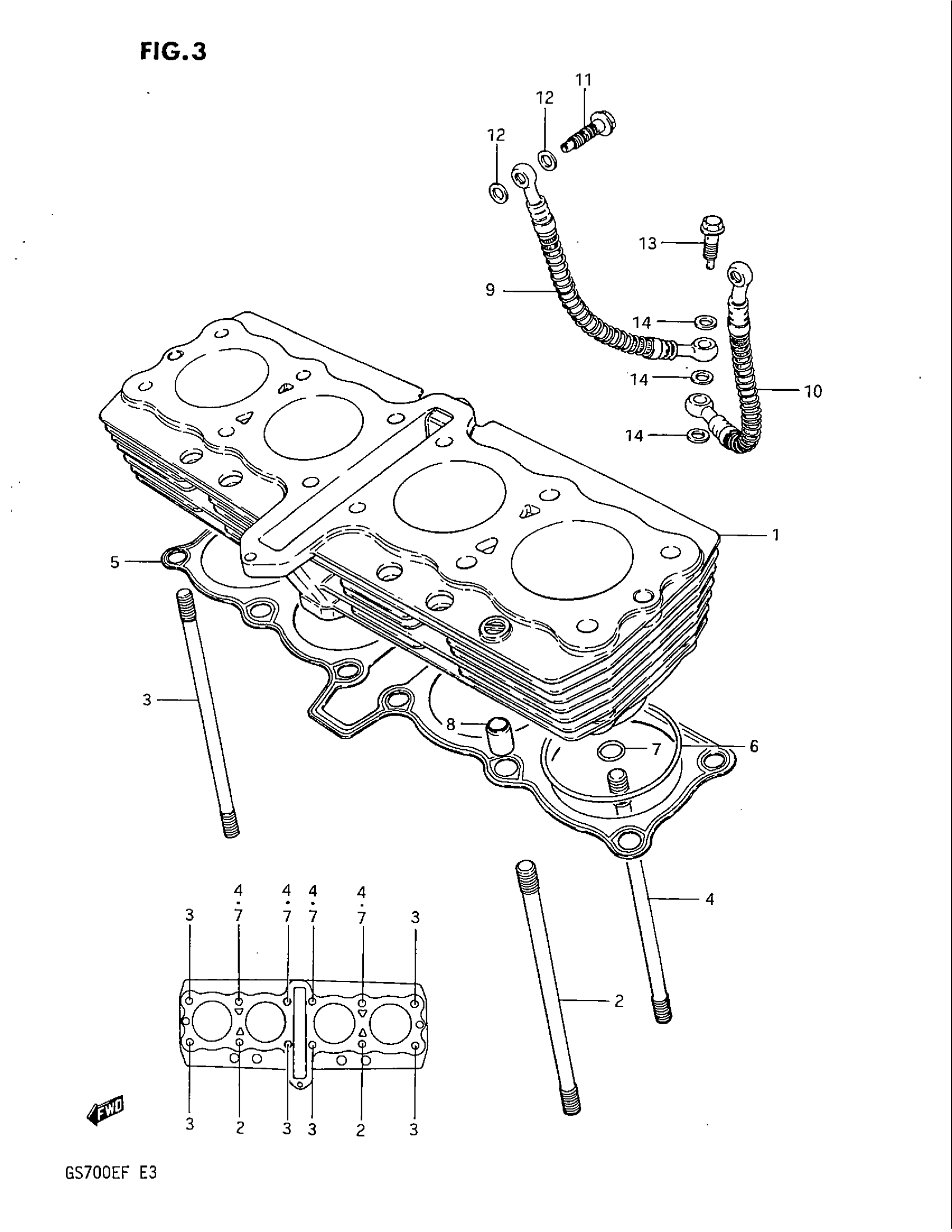

Suzuki GS700E (1985) CYLINDER Diagram

#

Description
Price

1

CYLINDER

11210-06A00

Unavailable

2

STUD BOLT

09108-10069

Unavailable

3

STUD BOLT

09108-10047

Unavailable

4

STUD BOLT

09108-10062

Unavailable

5

GASKET

11241-06A01

Unavailable

6

O RING

09280-70001

$6.00

7

O RING

09280-11005

$4.36

8

PIN This part replaces 09206-13006.

09206-13017

$7.61

9

HOSE OIL CRANKC This part replaces 11281-31304.

11281-31305

Unavailable

10

HOSE OIL CRANKC This part replaces 11282-31304.

11282-31305

Unavailable

11

BOLT (8X25) This part replaces 09360-08008.

09360-08011

$3.68

12

GASKET (8.2X14X1) This part replaces 09168-08008.

09168-08016

$1.65

13

UNION BOLT

11285-31301

Unavailable

14

WASHER (10X15X1.5)

09161-10009

$1.84
