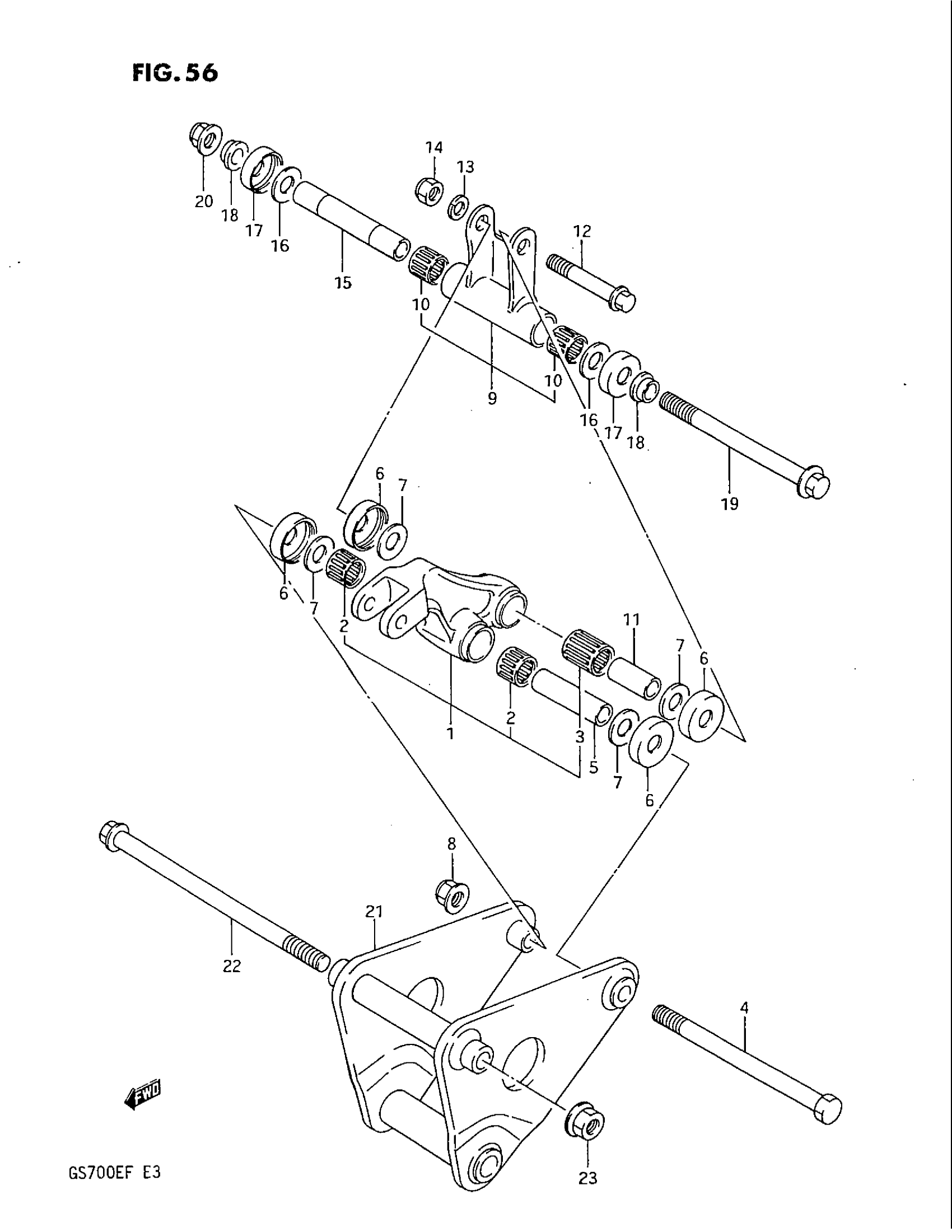

Suzuki GS700E (1985) CUSHION LEVER Diagram

#

Description
Price

1

LEVER SET, CUSHION | Includes Item(s) 2 - 3

62600-33811

Unavailable

2

BEARING, CENTER (17X24X20) This part replaces 09263-17011.

09263-17027

$19.48

3

.BEARING (17X24X25) This part replaces 09263-17020.

09263-17053

$21.66

4

SHAFT

62621-31300

Unavailable

5

SPACER

62623-15500

Unavailable

6

COVER This part replaces 61262-41500.

61262-41501

Unavailable

7

THRUST WASHER

08211-12281

$2.53

8

NUT This part replaces 08319-31125.

08319-3112B

$5.00

9

ROD, CUSHION LEVER | Includes Item(s) 10

62600-31810

Unavailable

10

BEARING, CENTER (17X24X20) This part replaces 09263-17011.

09263-17027

$19.48

11

SPACER, UPPER

62646-15500

Unavailable

12

BOLT, LOWER This part replaces 62648-15500.

62668-42A02

$10.67

13

WASHER,LOCK This part replaces 08321-21125.

08321-0112A

$2.10

14

NUT This part replaces 08319-21125.

08319-2112B

$5.18

15

SPACER, LOWER

62656-15500

Unavailable

16

THRUST WASHER

08211-12281

$2.53

17

COVER This part replaces 61262-41500.

61262-41501

Unavailable

18

SPACER

62626-31301

Unavailable

19

BOLT

62657-31301

Unavailable

20

NUT This part replaces 08319-31125.

08319-3112B

$5.00

21

BRACKET, SHOCK ABSORBER

62410-31310

Unavailable

22

BOLT, BRACKET

62413-31300

Unavailable

23

NUT This part replaces 08316-16125.

08316-1012A

$2.26
