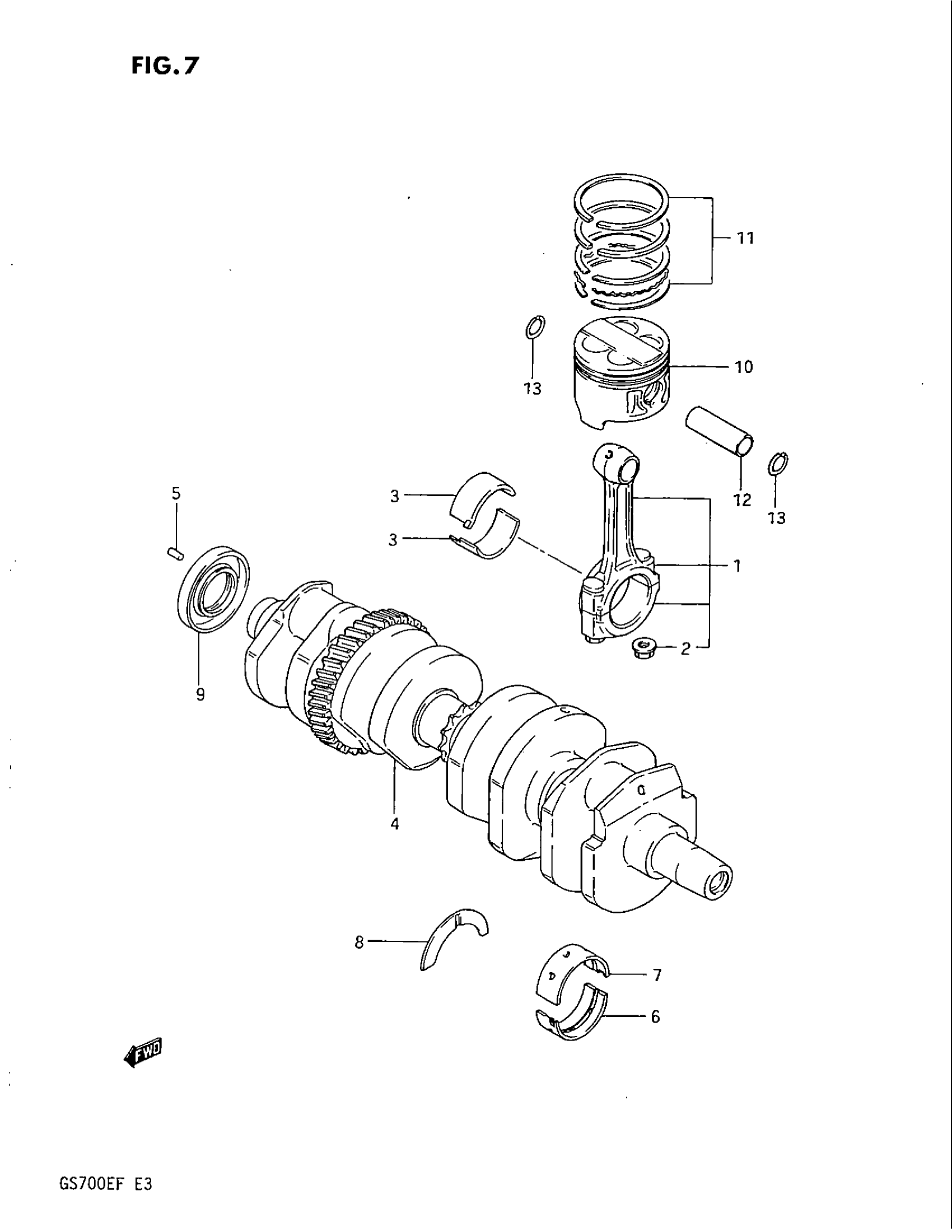

Suzuki GS700E (1985) CRANKSHAFT Diagram

#

Description
Price

1

ROD ASSY, CONNECTING | Includes Item(s) 2

12160-06A00

Unavailable

2

NUT

09159-08033

$3.50

3

BEARING, CRANK PIN (GREEN)

12164-31310-0A0

Unavailable

3

BEARING, CRANK PIN (BLACK)

12164-31310-0B0

Unavailable

3

BEARING, CRANK PIN (BROWN)

12164-31310-0C0

Unavailable

3

BEARING, CRANK PIN (YELLOW)

12164-31310-0D0

Unavailable

4

CRANKSHAFT | Includes Item(s) 5

12220-06A00

Unavailable

5

PIN (4X13.8)

04221-04089

$1.49

6

BEARING, CRANKSHAFT (GREEN)

12229-09301-0A0

Unavailable

6

BEARING, CRANKSHAFT (BLACK)

12229-09301-0B0

Unavailable

6

BEARING, CRANKSHAFT (BROWN)

12229-09301-0C0

Unavailable

6

BEARING, CRANKSHAFT (YELLOW)

12229-09301-0D0

Unavailable

7

BEARING, CRANKSHAFT (GREEN) This part replaces 12229-09311-0A0.

12229-06B10-0A0

$12.00

7

BEARING, CRANKSHAFT (BLACK) This part replaces 12229-09311-0B0.

12229-06B10-0B0

$10.21

7

BEARING, CRANKSHAFT (BROWN) This part replaces 12229-09311-0C0.

12229-06B10-0C0

$10.21

7

BEARING, CRANKSHAFT (YELLOW) This part replaces 12229-09311-0D0.

12229-06B10-0D0

$12.45

8

THRUST BEARING (RED) | LH

12228-31301

Unavailable

8

THRUST BEARING (BLACK) | LH

12228-31302

Unavailable

8

THRUST BEARING (BLUE) | LH

12228-31303

Unavailable

8

THRUST BEARING (GREEN) | LH

12228-31304

Unavailable

8

THRUST BEARINT (YELLOW) | LH & RH

12228-31305

Unavailable

8

THRUST BEARING (WHITE) | LH

12228-31306

Unavailable

8

THRUST BEARING (BROWN) | LH

12228-31307

Unavailable

8

THRUST BEARING (PINK) | LH

12228-31308

Unavailable

9

OIL SEAL

09283-30048

Unavailable

10

NO DESCRIPTION AVAILABLE This part replaces 12111-06A03.

12111-31306

Unavailable

10

NO DESCRIPTION AVAILABLE | OPT This part replaces 12111-06A03-050.

12103-31860-050

Unavailable

10

NO DESCRIPTION AVAILABLE | OPT This part replaces 12111-06A03-100.

12103-31860-100

Unavailable

11

PISTON RING SET

12140-31311

Unavailable

11

PISTON RING SET (OS:0.5) | OPT

12140-31311-050

Unavailable

11

PISTON RING SET (OS:1.0) | OPT

12140-31311-100

Unavailable

12

PIN, PISTON

12151-31302

Unavailable

13

CIRCLIP

09381-18002

$1.67
