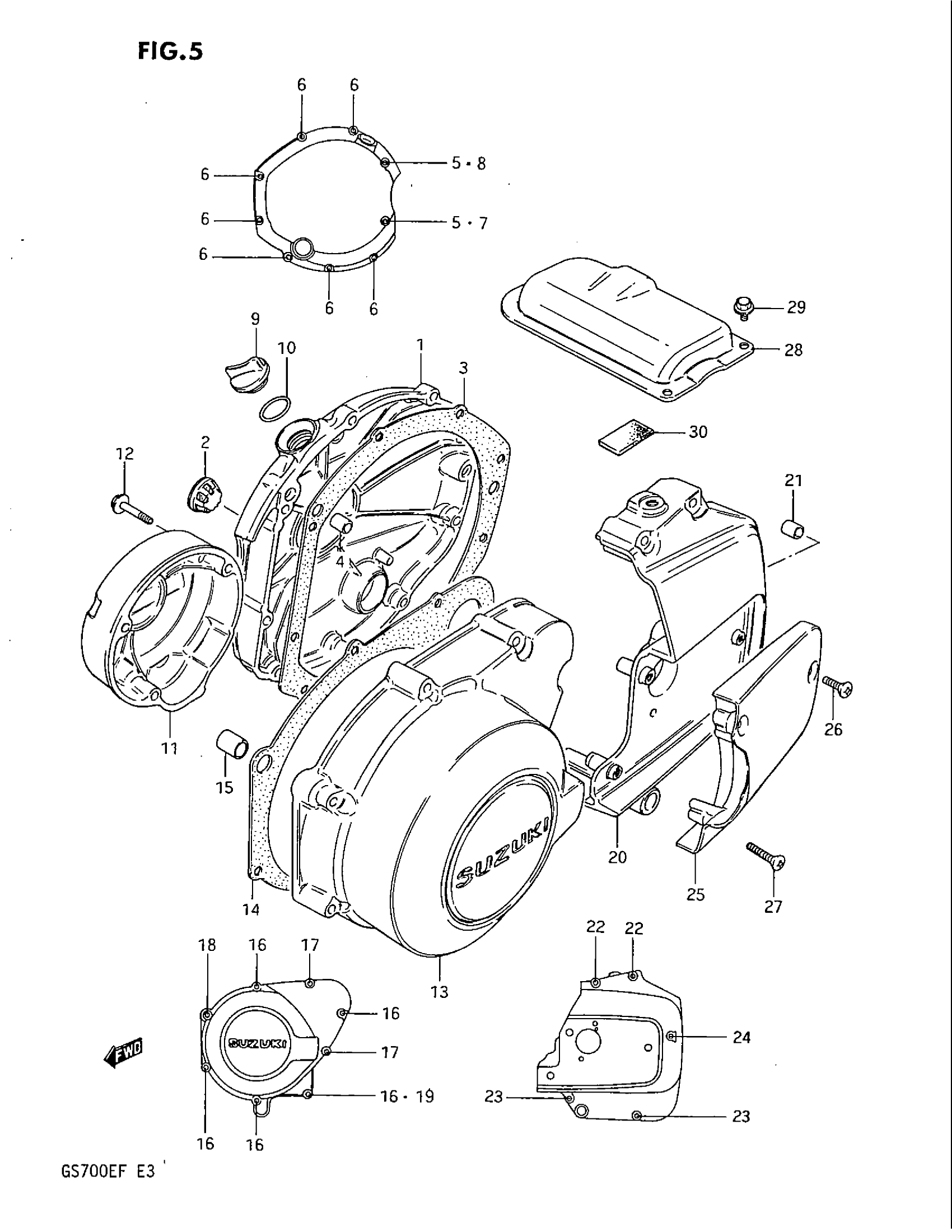

Suzuki GS700E (1985) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH | Includes Item(s) 2

11340-31301

Unavailable

2

LENS, OIL LEVEL

11971-33210

$18.20

3

GASKET,CLUTCH C This part replaces 11482-31301.

11482-31301-H17

Unavailable

4

PIN

09202-09004

Unavailable

5

GASKET (5.8X13X1.2) This part replaces 09168-06015.

09168-06023

$2.35

6

BOLT

01547-06257

$2.03

7

BOLT

01547-06307

$2.03

8

BOLT

01547-06357

$2.03

9

PLUG, ENGINE OIL FILLER

09259-20007

$7.53

10

O RING

09280-17003

$1.65

11

COVER, CONTACT BREAKER

11381-31300

Unavailable

12

BOLT

01547-05307

$2.30

13

COVER, GENERATOR

11351-31300

Unavailable

14

GASKET,GENERATO This part replaces 11483-31301.

11483-31301-H17

Unavailable

15

PIN (11X20) This part replaces 09206-11005.

09206-11017

$6.30

16

BOLT

01547-06357

$2.03

17

BOLT

01547-06407

$2.32

18

BOLT

01547-06457

$2.32

19

GASKET (5.8X13X1.2) This part replaces 09168-06015.

09168-06023

$2.35

20

COVER, ENGINE SPROCKET

11360-31301

Unavailable

21

PIN

04211-09129

$1.65

22

BOLT

01547-06407

$2.32

23

BOLT

01547-06507

$2.41

24

BOLT

01547-06707

$2.75

25

COVER, CLUTCH RELEASE

11380-31301

Unavailable

26

SCREW This part replaces 02132-05207.

02122-0520A

$2.27

27

SCREW

02132-05307

$1.50

28

COVER, STARTER MOTOR

11382-31300

Unavailable

29

BOLT, COVER This part replaces 01547-05084.

01547-0508B

$2.97

30

DAMPER

11362-34200

Unavailable
