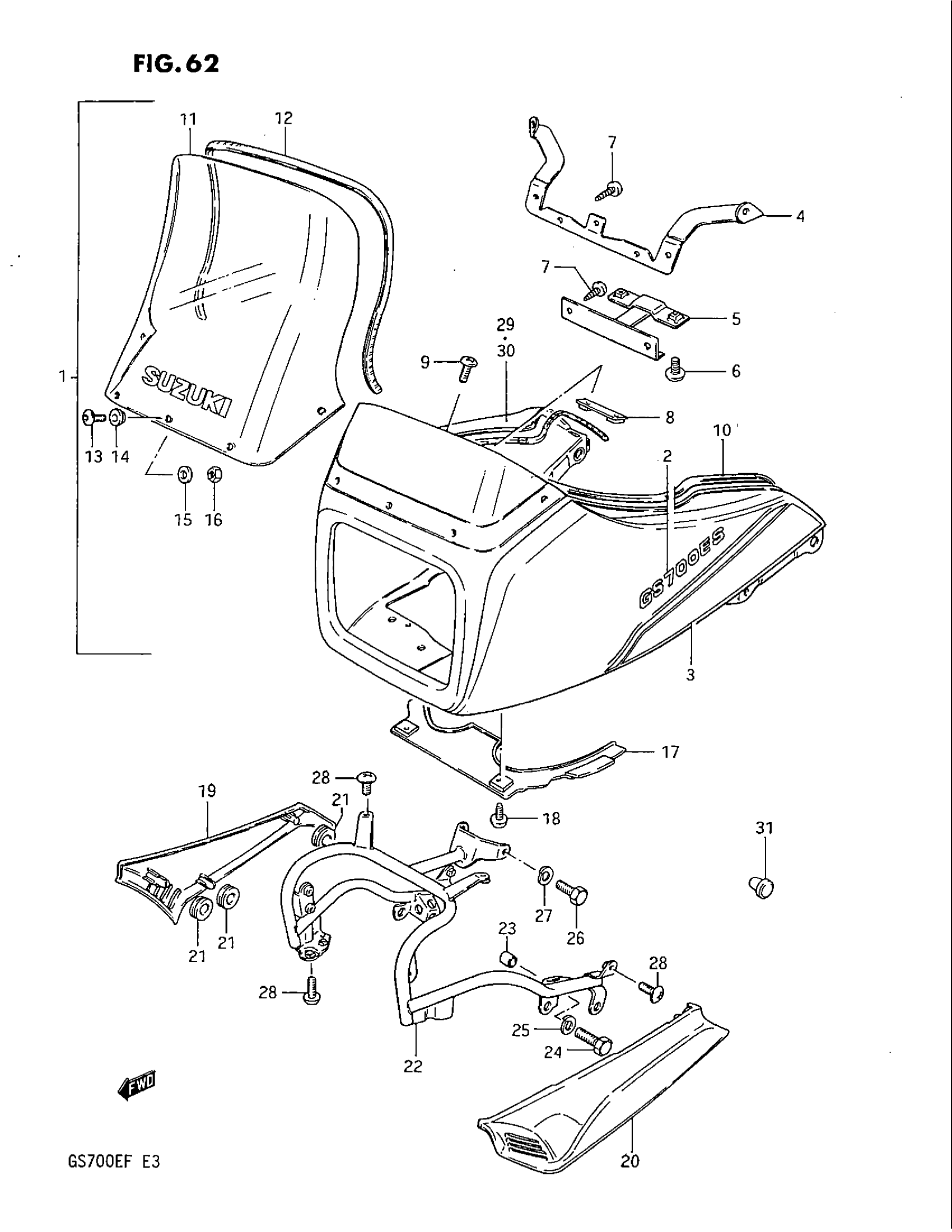

Suzuki GS700E (1985) COWLING (GS700ESF) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 94400-06A00-22R.

94400-31X00

Unavailable

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 10 This part replaces 94400-06A00-06X.

94400-31X00

Unavailable

2

EMBLEM, SIDE

68193-06A00-69L

Unavailable

3

TAPE SET | FOR 22R

68190-06A00-7JM

Unavailable

3

TAPE SET | FOR 06X

68190-06A00-7JK

Unavailable

4

BRACE, UPPER

94530-31311

Unavailable

5

BRACE, LOWER

94540-31311

Unavailable

6

SCREW, BODY LOWER

02142-05107

$1.49

7

NO DESCRIPTION AVAILABLE This part replaces 03212-05105.

03212-05103

Unavailable

8

BRACE, RH & LH

94550-31311

Unavailable

9

SCREW This part replaces 02142-05105.

02142-0510B

$1.78

10

MOULDING

94593-31310

Unavailable

11

WINDOW

94611-31340

Unavailable

12

MOLDING This part replaces 94631-31310.

94631-44110

$36.85

13

SCREW, REAR This part replaces 02142-05204.

02142-0520B

$1.78

14

CUSHION(5.5X11X This part replaces 09320-05008.

09320-05021

$2.54

15

WASHER This part replaces 08322-21058.

08322-01057

$2.13

16

NUT This part replaces 08310-11058.

08310-00057

$1.84

17

COVER, LOWER

94445-31310

Unavailable

18

NO DESCRIPTION AVAILABLE This part replaces 03212-05105.

03212-05103

Unavailable

19

NO DESCRIPTION AVAILABLE This part replaces 94431-31310-22R.

94431-31310

Unavailable

20

NO DESCRIPTION AVAILABLE This part replaces 94441-31310-22R.

94441-31310

Unavailable

21

CUSHION

09320-08018

$3.04

22

BRACE

94510-31312

Unavailable

23

SPACER, FRONT (8.5X14X21.50) This part replaces 94549-49510.

09180-08205

$3.49

24

BOLT This part replaces 01107-08304.

01500-0830B

$3.16

25

LOCK WASHER This part replaces 08321-21084.

08321-0108A

$1.84

26

PLUG, DRAIN This part replaces 01107-08165.

01500-0816B

$2.50

27

LOCK WASHER This part replaces 08321-21084.

08321-0108A

$1.84

28

SCREW This part replaces 02142-06125.

02142-0612A

$1.49

29

TAPE, RH (BLACK)

68197-31310-291

Unavailable

30

TAPE, LH (BLACK)

68198-31310-291

Unavailable

31

PLUG, BOSS (OD:5.3)

09250-05007

$2.23
