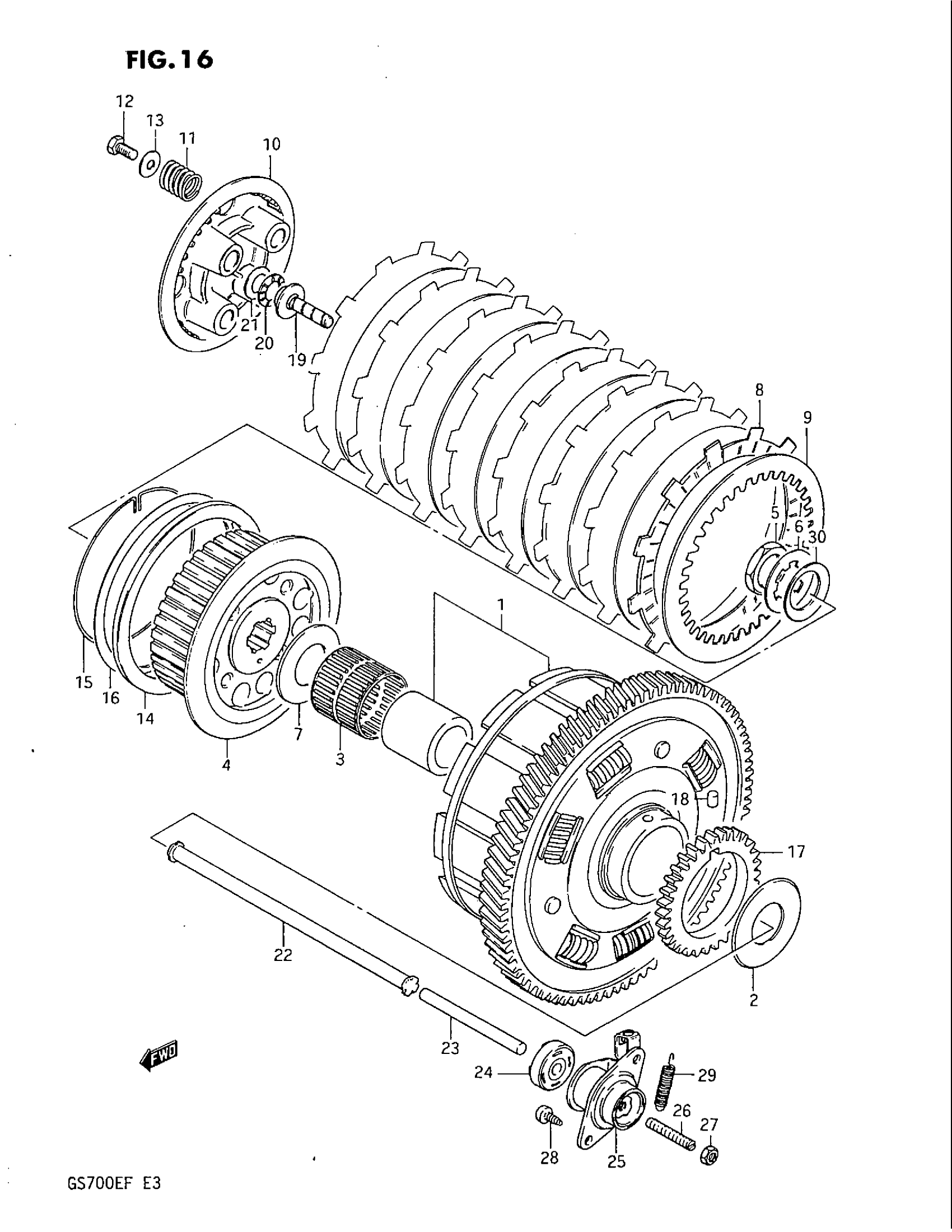

Suzuki GS700E (1985) CLUTCH Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 21200-31830.

21200-31834

Unavailable

2

WASHER

09160-25037

$8.85

3

BEARING

09263-35013

$35.56

4

HUB, SLEEVE

21410-31304

Unavailable

5

NUT

09140-24007

$3.89

6

WASHER

09167-25007

Unavailable

7

WASHER

09160-25055

$8.62

8

PLATE, DRIVE

21441-45100

Unavailable

9

PLATE, DRIVEN

21451-31000

$10.40

10

DISK, PRESSURE

21462-31300

Unavailable

11

SPRING This part replaces 09440-20010.

09440-20013

$3.57

12

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

13

WASHER (6.5X20X1.6) This part replaces 09160-06020.

09160-06066

$1.89

14

SEAT, WAVE WASHER

21471-45101

Unavailable

15

RING, STOPPER

21481-45100

$5.80

16

WAVE WASHER

09164-00003

$12.67

17

GEAR, OIL PUMP DRIVE (NT:34)

16321-31300

Unavailable

18

PIN

09261-06002

$1.53

19

PIECE, PUSH

23121-44100

$25.75

20

BEARING

09263-15003

$8.29

21

WASHER, CLUTCH PUSH This part replaces 09160-15015.

09160-15045

$3.89

22

ROD, CLUTCH PUSH This part replaces 23110-31300.

23110-32C50

Unavailable

23

ROD, PUSH (L)

23111-31301

$13.36

24

OIL SEAL

09285-06018

$12.40

25

SCREW ASSY, RELEASE | Includes Item(s) 26 - 27

23200-31300

Unavailable

26

SCREW, ADJUST

09134-06010

$3.12

27

.NUT This part replaces 08310-22068.

08310-00067

$2.13

28

SCREW This part replaces 03111-06168.

03111-0616B

$1.93

29

SPRING

09443-08001

$2.92

30

WASHER

09164-24006

$3.76
