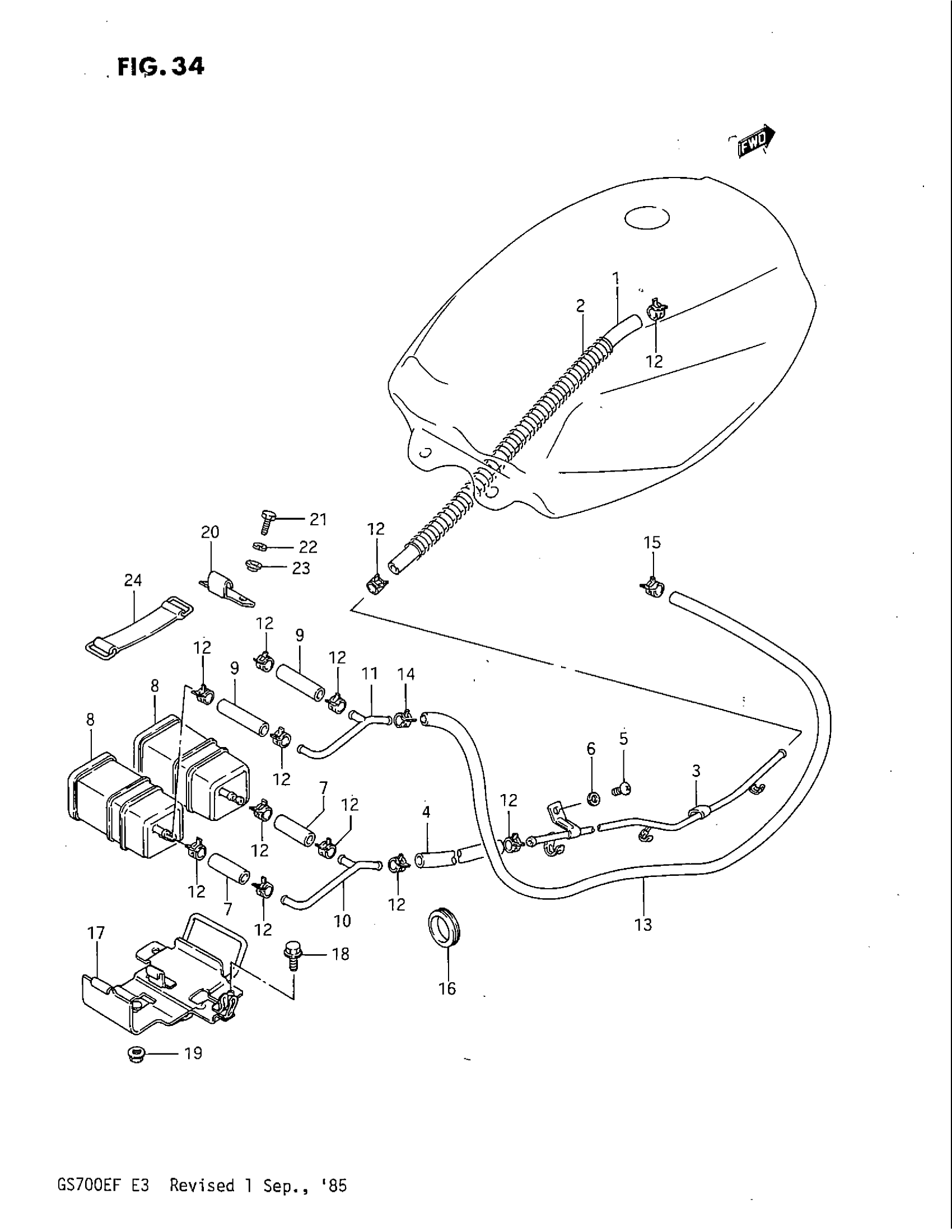

Suzuki GS700E (1985) CANISTER (FOR CALIFORNIA) Diagram

#

Description
Price

1

HOSE, CANISTER & CARB This part replaces 09343-05327.

09355-54115-00B

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 09440-13040.

09440-13040-XC0

Unavailable

3

PIPE, FUEL TANK & CANISTER

44950-06A00

Unavailable

4

HOSE, JOINT PIPE & CANISTER

09343-05318

Unavailable

5

SCREW This part replaces 02112-06125.

02112-0612A

$1.49

6

LOCK WASHER This part replaces 08321-21064.

08321-0106A

$1.84

7

HOSE, JOINT PIPE & CANISTER This part replaces 09343-05317.

09343-05318

Unavailable

8

CANISTER This part replaces 17210-05222.

17210-14A00

$156.07

9

HOSE, TANK & BREATHER VALVE This part replaces 09343-05291.

09355-54115-600

$14.59

10

PIPE, CANISTER JOINT, IN

44941-06A00

Unavailable

11

PIPE, CANISTER JOINT, OUT

44940-06A00

Unavailable

12

CLIP (ID:10.5,H:8)

09401-10409

$2.26

13

HOSE, CARB This part replaces 09343-05320.

09359-54111-00A

Unavailable

14

CLIP (ID:10.5,H:8)

09401-10409

$2.26

15

CLIP, LOWER

09401-12404

$2.34

16

CUSHION

09308-27001

Unavailable

17

PLATE, CANISTER FITTING

44880-06A00

Unavailable

18

BOLT This part replaces 01517-06165.

01550-0616A

$1.97

19

NUT This part replaces 08316-26068.

08316-2006A

$2.63

20

HOOK, CANISTER FITTING

44495-06A00

Unavailable

21

BOLT This part replaces 01107-06125.

01500-0612A

$1.78

22

LOCK WASHER This part replaces 08321-21064.

08321-0106A

$1.84

23

WASHER This part replaces 09169-06032.

09169-06071

$2.50

24

BAND

09462-00034

$4.24
