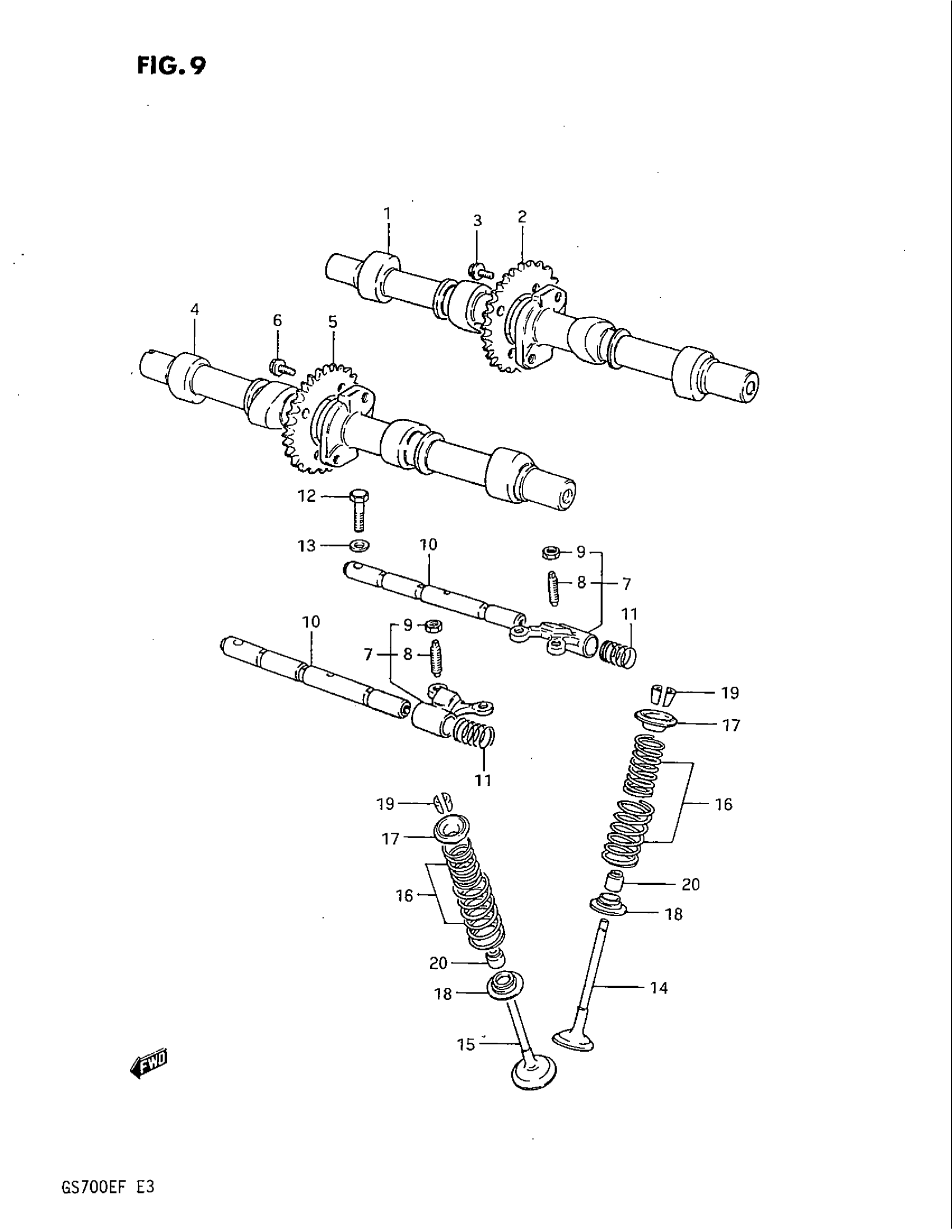

Suzuki GS700E (1985) CAM SHAFT - VALVE Diagram

#

Description
Price

1

CAM SHAFT, INTAKE

12711-06A00

Unavailable

2

SPROCKET, INTAKE CAM SHAFT

12741-34201

Unavailable

3

BOLT

09103-07001

$2.43

4

CAM SHAFT, EXHAUST

12721-06A00

Unavailable

5

SPROCKET, EXHAUST CAM SHAFT

12751-31300

Unavailable

6

BOLT

09103-07001

$2.43

7

ARM VALVE ROCKE | Includes Item(s) 8 - 9 This part replaces 12840-45410.

12840-45401

Unavailable

8

SCREW, TAPPET ADJUSTING This part replaces 12842-49210.

12842-49201

$6.63

9

.NUT,TAPPET ADJUSTING This part replaces 12843-49210.

12843-27A00

$2.94

10

SHAFT, VALVE ROCKER ARM

12860-31300

Unavailable

11

SPRING

09440-13014

$2.45

12

BOLT This part replaces 01107-06306.

01500-0630A

$2.19

13

.WASHER This part replaces 08322-21066.

08322-0106B

$2.26

14

VALVE, INTAKE

12911-31300

Unavailable

15

VALVE, EXHAUST

12912-31301

Unavailable

16

SPRING SET, VALVE

12920-49210

Unavailable

17

RETAINER, VALVE SPRING This part replaces 12931-49200.

12931-49201

$6.91

18

SEAT, VALVE SPRING This part replaces 12933-49200.

12933-49201

$5.84

19

COTTER, VALVE

12932-49200

$2.28

20

OIL SEAL (5.5X11X8.2) This part replaces 09289-05003.

09289-05015

$6.70
