Description

Price

1

BATTERY (12V,14AH)

33610-49210

Unavailable

2

HOSE,BATTERY EX This part replaces 33680-31003.

33680-16A11

$6.78

3

CLAMP This part replaces 09403-09303.

09403-09003

$2.20

4

PROTECTOR (80X80X2) This part replaces 33652-34000.

33652-07D00

$5.64

5

CUSHION | CUT AS REQUIRED PROFILE

33651-37000

$4.48

6

LEAD WIRE, (-) This part replaces 33850-31300.

33850-38420

$17.93

7

NO DESCRIPTION AVAILABLE This part replaces 41540-31300.

41540-31310

Unavailable

8

SCREW This part replaces 09128-06005.

02162-0616B

$2.03

9

WASHER (6.5X20X1.2) This part replaces 09160-06027.

09160-06077

$1.91

10

CUSHION (8.5X20X8) This part replaces 09320-08007.

09320-08510

$1.97

11

SPACER

09180-06038

$1.98

12

CUSHION

09329-05006

$2.38

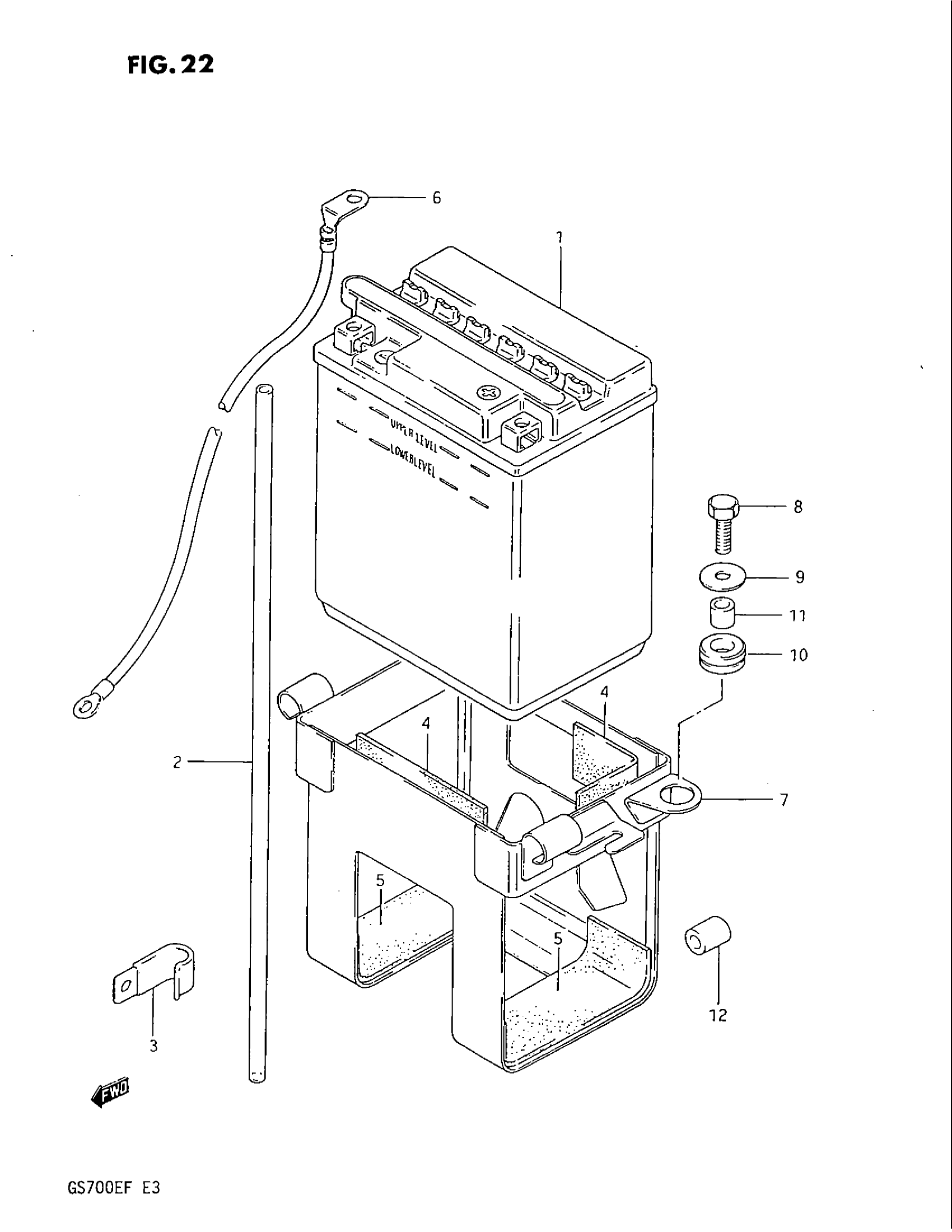

Suzuki GS700E (1985) BATTERY Diagram
