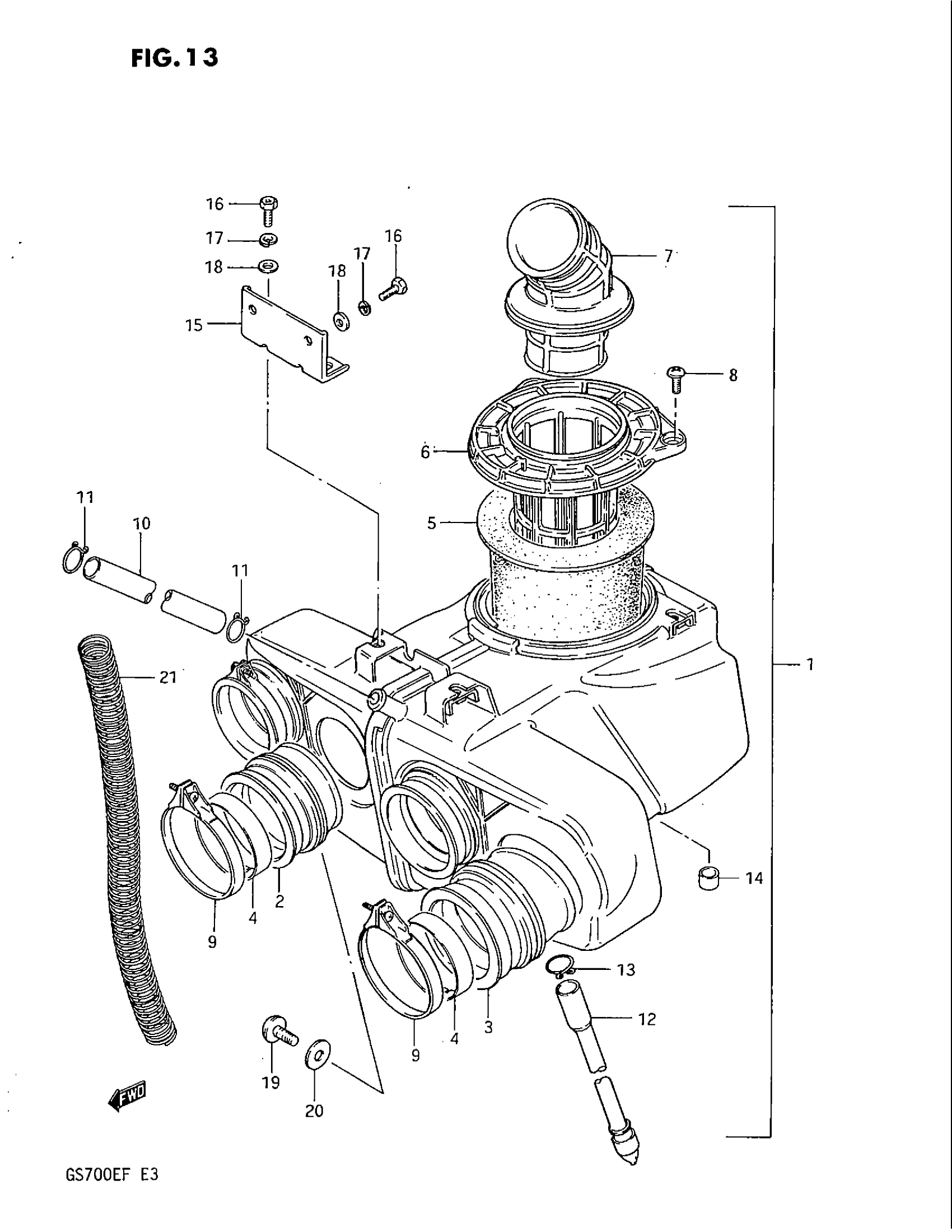

Suzuki GS700E (1985) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY, AIR | Includes Item(s) 2 - 14

13700-31310

Unavailable

2

TUBE, OUTLET INSIDE

13881-31300

Unavailable

3

TUBE, OUTLET OUTSIDE

13882-31300

Unavailable

4

RING

13885-47030

$8.30

5

FILTER

13780-31310

Unavailable

6

HOLDER

13791-31300

Unavailable

7

TUBE, INLET

13891-31300

Unavailable

8

SCREW This part replaces 02142-05128.

02142-05127

$1.97

9

..CLAMP This part replaces 09402-60207.

09402-60208

$5.11

10

HOSE,11X15X2000 This part replaces 09343-11005.

09352-11154-00B

$48.35

11

CLIP

09401-14301

$2.35

12

HOSE, DRAIN

13870-11293

Unavailable

13

CLIP This part replaces 13824-00A00.

09401-13409

$2.12

14

DRAIN

13787-31300

Unavailable

15

BRACKET

13761-31310

Unavailable

16

FRM CVR,SCREW(6 This part replaces 09128-06011.

09128-06092

$1.92

17

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

18

WASHER This part replaces 08322-21068.

08322-01067

$2.13

19

SCREW

02142-06167

$1.49

20

WASHER This part replaces 09160-06007.

09160-06084

$1.78

21

SPRING, VACUUM FUEL COCK

09440-10009

$5.47
