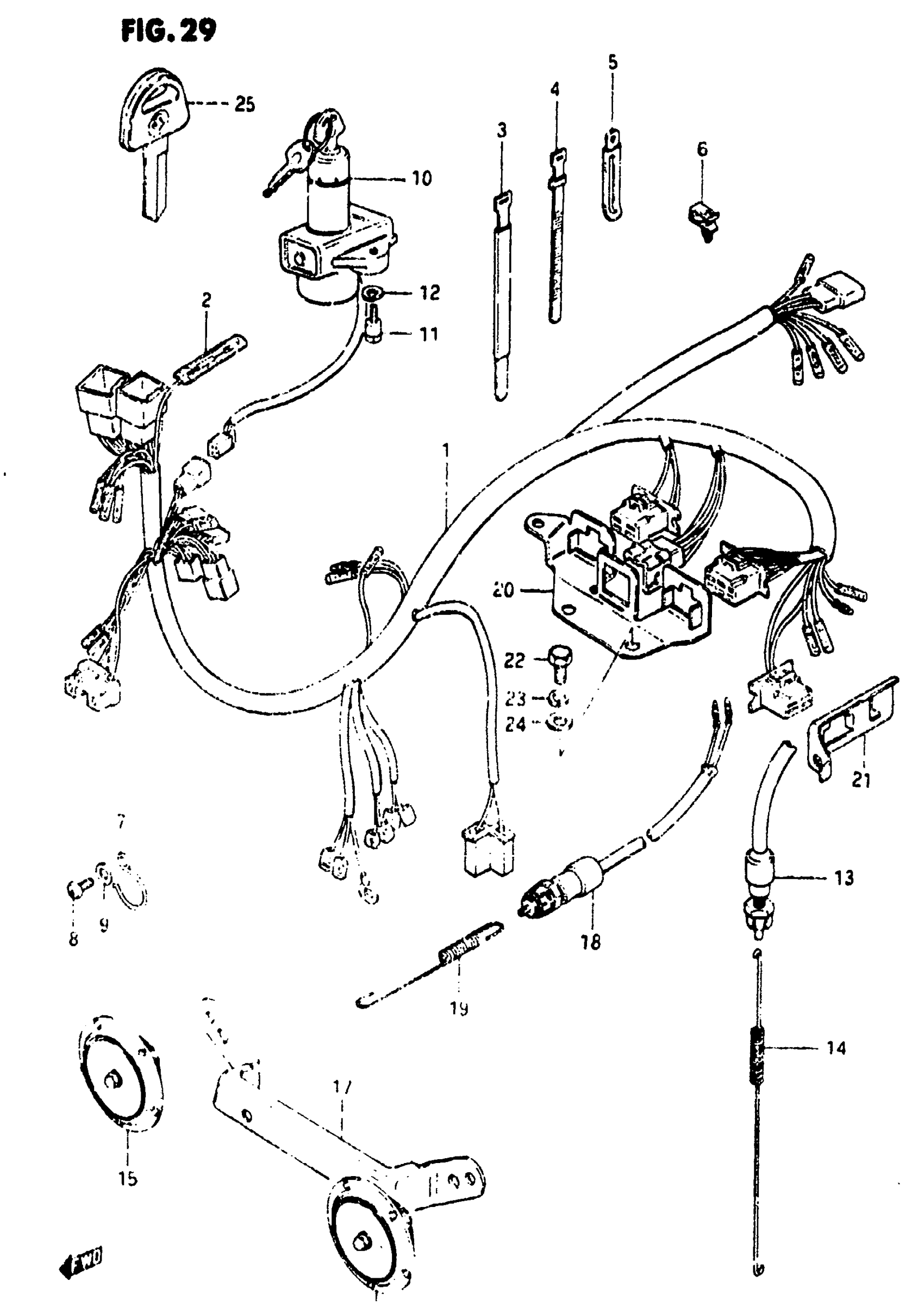

Suzuki GS650M (1983) WIRING HARNESS Diagram

#

Description
Price

1

WIRING HARNESS | Includes Item(s) 2

36610-34320

Unavailable

2

DIODE

36611-02100

Unavailable

3

CLAMP This part replaces 09407-18301.

09407-18302

$2.28

4

CLAMP (L:140)

09407-14401

$3.77

5

CLAMP(L:80) This part replaces 09404-06414.

09404-06036

$1.74

6

CLIP

09403-05305

Unavailable

7

CLIP, WIRING HARNESS This part replaces 36619-44001.

36619-44002

Unavailable

8

SCREW This part replaces 02112-06128.

02112-06127

$1.84

9

WASHER This part replaces 08322-21068.

08322-01067

$2.13

10

SWITCH ASSY, IGNITION | 1; Includes Item(s) 11 - 12 This part replaces 37100-47011.

37100-45301

Unavailable

11

BOLT This part replaces 37152-47010.

07130-0616B

$2.39

12

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

13

SWITCH, REAR BRAKE LAMP This part replaces 37740-04572.

37740-48071

$19.18

14

SPRING This part replaces 09443-06018.

09443-06018-XC0

Unavailable

15

NO DESCRIPTION AVAILABLE This part replaces 38501-34330.

38501-49420

Unavailable

16

HORN, LOW PITCHED

38502-34330

Unavailable

17

BRACKET, HORN

38516-34330

Unavailable

18

SWITCH, PROP STAND WARNING

37840-34500

Unavailable

19

SPRING

09443-06005

$3.37

20

PLATE, COUPLER HOLDER (A)

47450-34200

Unavailable

21

PLATE, COUPLER HOLDER (B)

47452-34200

Unavailable

22

BOLT This part replaces 01107-06128.

01500-06127

$1.97

23

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

24

WASHER This part replaces 08322-21068.

08322-01067

$2.13

25

KEY, BLANK | OPT

37146-47010

$18.39
