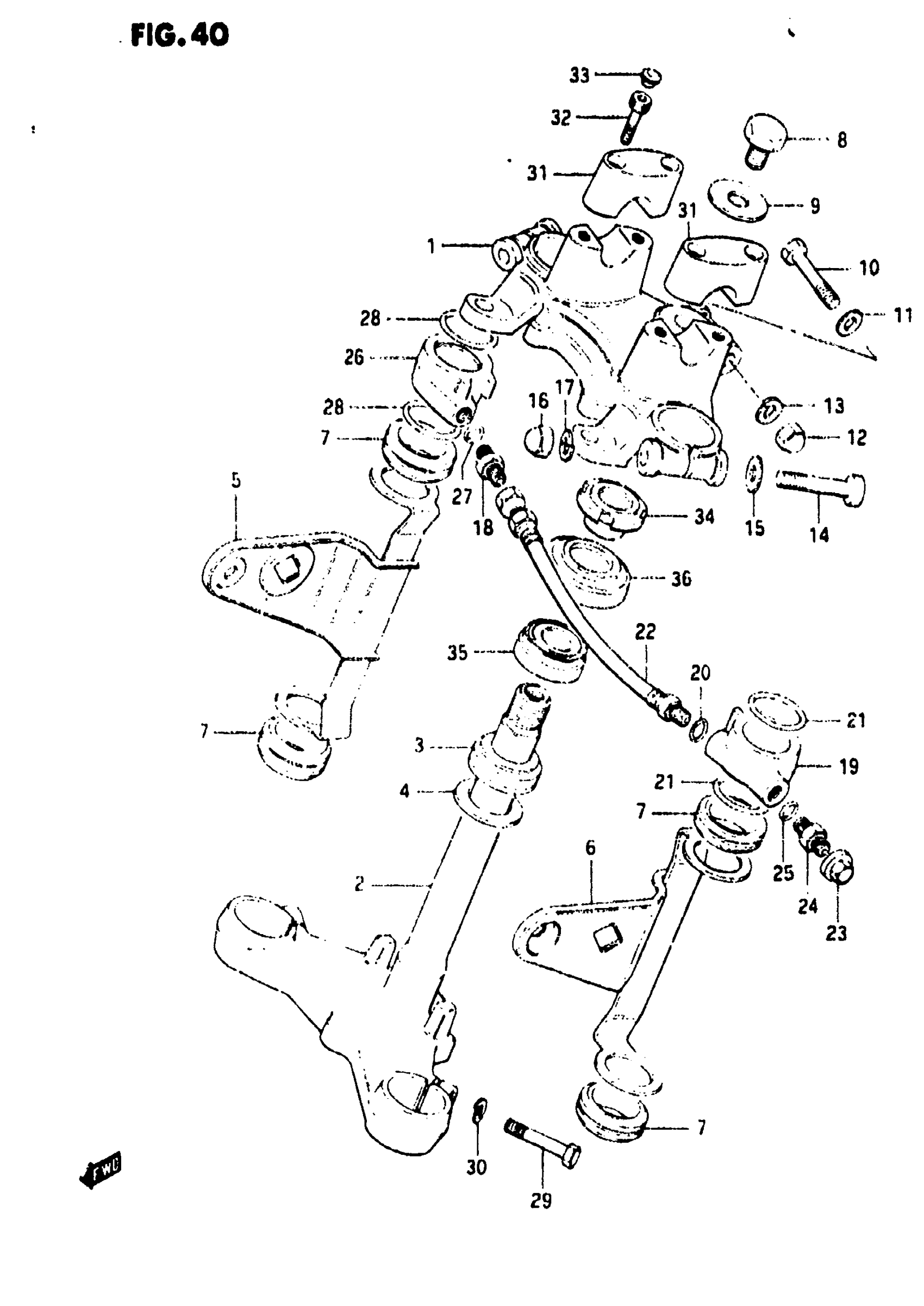

Suzuki GS650M (1983) STEERING STEM Diagram

#

Description
Price

1

STEM HEAD, STEERING | BLACK

51311-34370-291

Unavailable

2

NO DESCRIPTION AVAILABLE | BLACK; Includes Item(s) 3 - 4 This part replaces 51410-34370-291.

51410-34390-291

Unavailable

3

RT 30X55X17 BEA This part replaces 09265-30005.

09265-30034

$57.05

4

SHIM, 30X40X1.5 This part replaces 08211-30402.

09181-30184

$3.07

5

BRACKET, HEADLAMP RH | BLACK

51530-34370-291

Unavailable

6

BRACKET, HEADLAMP LH | BLACK

51540-34370-291

Unavailable

7

CUSHION

51553-34300

$4.52

8

BOLT This part replaces 51352-09300.

51352-31305

Unavailable

9

WASHER This part replaces 51356-09300.

51356-43530

$6.55

10

BOLT This part replaces 01107-08508.

01500-08507

$3.05

11

WASHER This part replaces 08322-21088.

08322-01087

$2.13

12

NUT This part replaces 08313-11088.

08313-10087

$2.28

13

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

14

BOLT This part replaces 01107-10558.

01500-1055A

$3.55

15

WASHER This part replaces 08322-21108.

08322-01107

$2.15

16

NUT

09145-10002

Unavailable

17

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

18

CONNECTOR

51437-33300

Unavailable

19

JOINT AIR, LH

51432-34370

Unavailable

20

.O RING (D:1.9,ID:5.7) This part replaces 51117-45440.

09280-06005

$1.49

21

O RING B

51356-34370

Unavailable

22

TUBE, JOINT

51433-34280

Unavailable

23

CAP This part replaces 51294-33300.

51294-45440

Unavailable

24

VALVE, AIR | Includes Item(s) 25

51293-45440

Unavailable

25

.O RING (D:1.9,ID:5.7) This part replaces 51117-45440.

09280-06005

$1.49

26

JOINT AIR, RH

51431-34370

Unavailable

27

.O RING (D:1.9,ID:5.7) This part replaces 51117-45440.

09280-06005

$1.49

28

O RING B

51356-34370

Unavailable

29

BOLT This part replaces 01107-10408.

01500-10407

$3.55

30

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

31

CLAMP, HANDLEBAR UPPER | BLACK

56211-34300-291

Unavailable

32

BOLT, STEERING DAMPER This part replaces 09106-08013.

07130-0830A

$1.74

33

CAP

09250-06004

$1.49

34

NUT, STEERING STEM

51631-34200

Unavailable

35

BEARING

09265-25008

Unavailable

36

SEAL,DUST This part replaces 51643-40502.

51643-40503

$6.15
