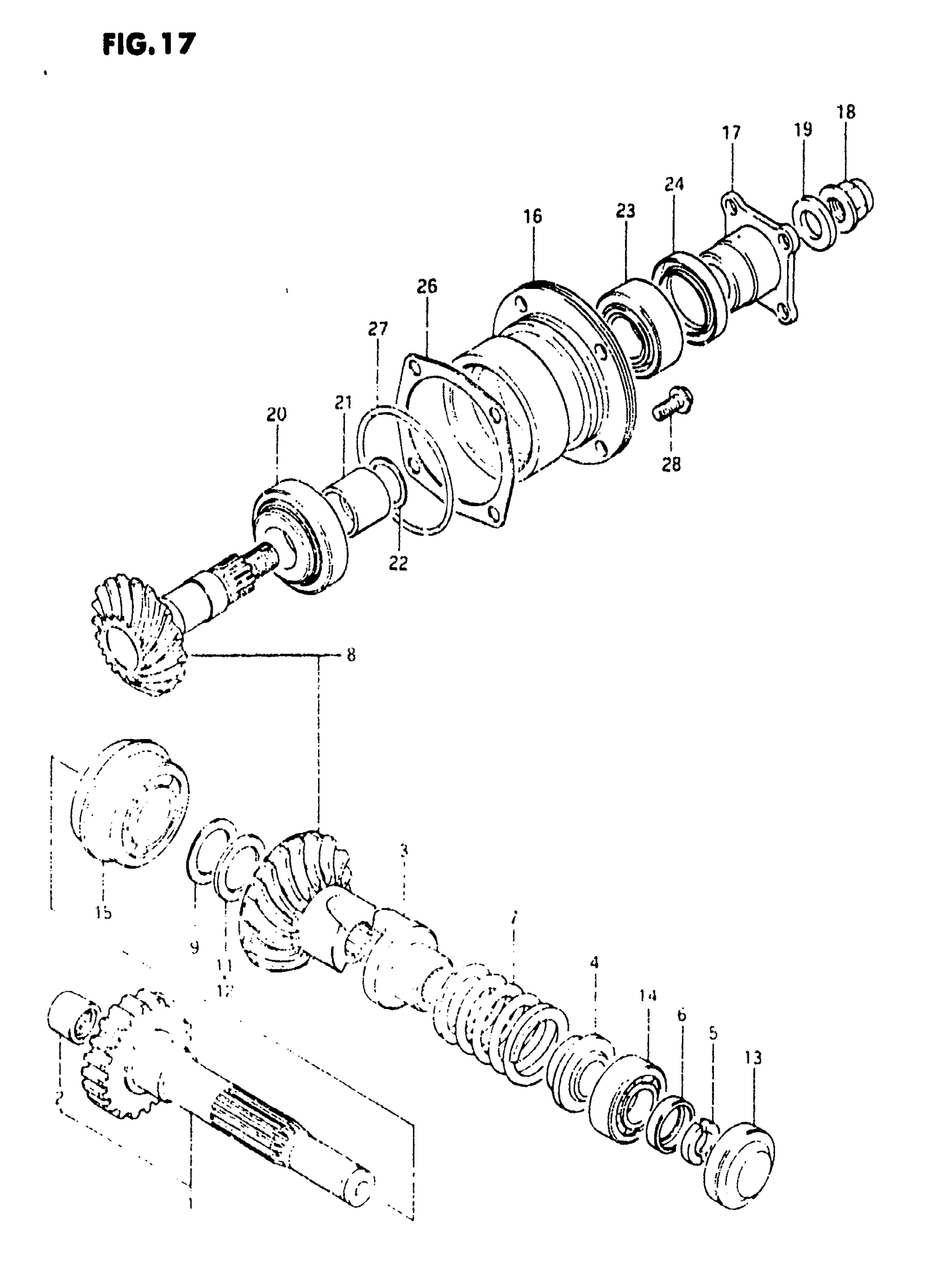

Suzuki GS650M (1983) SECONDARY DRIVE GEAR Diagram

#

Description
Price

1

SHAFT, OUT PUT (NT:25) | Includes Item(s) 2

24140-34200

Unavailable

2

BEARING

09263-15018

Unavailable

3

DOG, INPUT CAM

22511-34200

Unavailable

4

SLIDING STOPPER

22531-34200

Unavailable

5

STOPPER

22541-34200

Unavailable

6

HOLDER

22551-34200

Unavailable

7

SPRING

09440-47003

Unavailable

8

NO DESCRIPTION AVAILABLE | NT:17/16 This part replaces 24900-34812.

24910-34202

Unavailable

9

SHIM, RH (T:1.5)

24934-34200

Unavailable

10

SHIM SET (1PC EACH) | NOT SHOWN; Includes Item(s) 11 - 12

24900-34830

Unavailable

11

SHIM (T:3.85)

24935-34200

Unavailable

11

SHIM (T:3.90)

24935-34210

Unavailable

11

SHIM (T:3.95)

24935-34220

Unavailable

11

SHIM (T:4.00)

24935-34230

Unavailable

11

SHIM (T:4.05)

24935-34240

Unavailable

11

SHIM (T:4.10)

24935-34250

Unavailable

11

SHIM (T:4.15)

24935-34260

Unavailable

11

SHIM (T:4.20)

24935-34270

Unavailable

11

SHIM (T:4.25)

24935-34280

Unavailable

12

SHIM (T:4.30)

24935-34290

Unavailable

12

SHIM (T:4.35)

24935-34300

Unavailable

12

SHIM (T:4.40)

24935-34310

Unavailable

12

SHIM (T:4.45)

24935-34320

Unavailable

12

SHIM (T:4.50)

24935-34330

Unavailable

12

SHIM (T:4.55)

24935-34340

Unavailable

12

SHIM (T:4.60)

24935-34350

Unavailable

13

PLUG

09241-47005

Unavailable

14

BEARING, LH

09262-20043

Unavailable

15

BEARING, RH

09267-30002

Unavailable

16

HOUSING

24941-45101

Unavailable

17

FLANCE, UNIVERSAL JOINT

24951-49100

Unavailable

18

NUT

09159-14010

$14.12

19

WASHER

09160-14021

$6.63

20

BEARING, FRONT

09265-25012

Unavailable

21

SPACER

09180-25056

Unavailable

22

SHIM (T:1.60)

09181-25006

Unavailable

22

SHIM (T:1.62)

09181-25007

Unavailable

22

SHIM (T:1.64)

09181-25008

Unavailable

22

SHIM (T:1.66)

09181-25009

Unavailable

22

SHIM (T:1.68)

09181-25010

Unavailable

22

SHIM (T:1.70)

09181-25011

Unavailable

22

SHIM (T:1.80)

09181-25012

Unavailable

22

SHIM (T:1.90)

09181-25013

Unavailable

22

SHIM (T:2.00)

09181-25014

Unavailable

23

BEARING, REAR This part replaces 09265-25011.

09265-25024

$60.80

24

OIL SEAL

09283-35018

Unavailable

25

SHIM SET (4PCS.EACH) | NOT SHOWN; Includes Item(s) 26 - 26

24900-45840

Unavailable

26

SHIM (T:0.35)

24945-45100

Unavailable

26

SHIM (T:0.40)

24945-45102

Unavailable

26

SHIM (T:0.50)

24945-45103

Unavailable

26

SHIM (T:0.60)

24945-45104

Unavailable

27

O RING

09280-70005

$6.23

28

BOLT This part replaces 01517-08258.

01550-08257

$2.81
