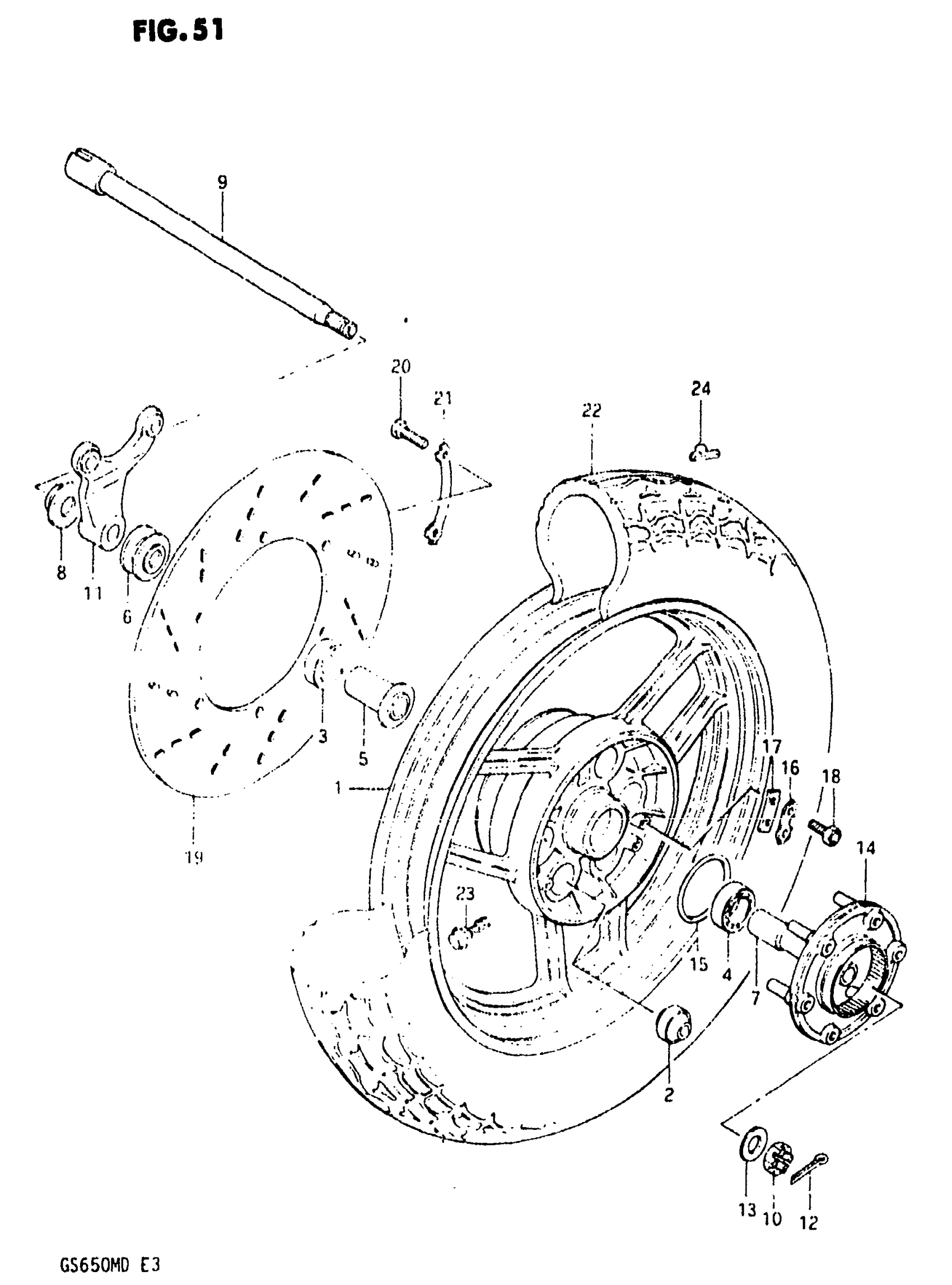

Suzuki GS650M (1983) REAR WHEEL Diagram

#

Description
Price

1

WHEEL, REAR (17xMT2.50) | Includes Item(s) 2

64100-34850-291

Unavailable

2

BUSHING

09319-12019

$13.11

3

BEARING This part replaces 08123-63037.

08123-6303B

$15.56

4

BEARING, LH

08143-63037

$22.58

5

SPACER, BEARING

64730-34200

Unavailable

6

NO DESCRIPTION AVAILABLE This part replaces 64740-47010.

64740-47011

Unavailable

7

SPACER, LH This part replaces 64772-34200.

64772-34201

$23.07

8

NO DESCRIPTION AVAILABLE This part replaces 64741-34300.

64741-34301

Unavailable

9

AXLE, REAR

64711-34200

Unavailable

10

NUT

09141-16001

Unavailable

11

BRACKET, REAR CALIPERS

69721-47020

Unavailable

12

PIN, REAR AXLE This part replaces 04111-40308.

04111-4030A

$1.49

13

WASHER

09160-16025

Unavailable

14

JOINT, HUB DRIVEN This part replaces 64680-45112.

64680-45113

$275.40

15

O RING

09280-65003

$3.72

16

WASHER

09169-06030

$3.15

17

THRUST WASHER (T:1.6)

64677-45110

$2.92

18

BOLT

09119-06049

$1.56

19

DISK, REAR BRAKE

69211-34260

Unavailable

20

BOLT

09100-08175

Unavailable

21

WASHER This part replaces 09169-08030.

09169-08030-XC0

Unavailable

22

TIRE, REAR (4.25H17T/L) | BS

65100-34330

Unavailable

23

VALVE, TUBLESS This part replaces 55220-45100.

43130-24A40

$22.08

24

BALANCER, WHEEL NO.2 This part replaces 55411-45100.

55412-17G00

$7.05

24

BALANCER (30G)

55412-45100

Unavailable

24

BALANCER (10G) This part replaces 55413-45100.

55411-00A00

$1.49
